Trailer Tow Hitch For 88-00 Chevy GMC C/K C1500 C2500 C3500 K1500 K2500 K3500 Receiver w/ 1-7/8" and 2" Ball
$297.77
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41524 23 63845 63816

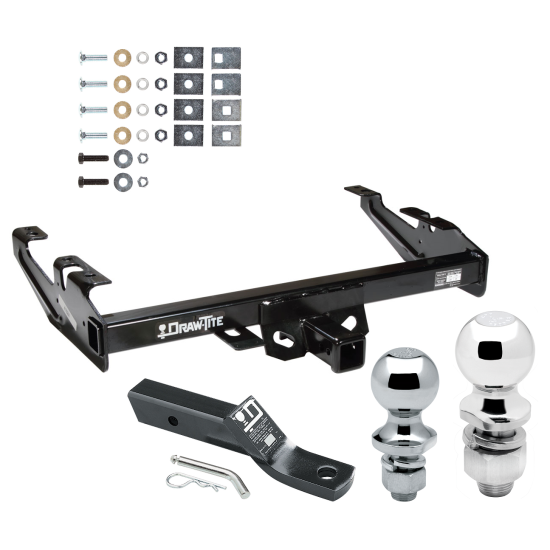

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs
1988 - 1999 GMC, C1500, All Styles
1988 - 2000 GMC, C2500, All Styles
1988 - 2000 GMC, C3500, All Styles
1988 - 1999 GMC, K1500, All Styles
1988 - 2000 GMC, K2500, All Styles
1988 - 2000 GMC, K3500, All Styles
1992 - 2000 Chevrolet, C2500, Crew Cab
1992 - 2000 Chevrolet, C3500, Crew Cab
1992 - 2000 Chevrolet, K2500, Crew Cab
1992 - 2000 Chevrolet, K3500, Crew Cab
Trailer Hitch Specs:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, C3500, Regular & Extended Cabs
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, Regular & Extended Cabs
1988 - 2000 Chevrolet, K3500, Regular & Extended Cabs
1988 - 1999 GMC, C1500, All Styles
1988 - 2000 GMC, C2500, All Styles
1988 - 2000 GMC, C3500, All Styles
1988 - 1999 GMC, K1500, All Styles
1988 - 2000 GMC, K2500, All Styles
1988 - 2000 GMC, K3500, All Styles
1992 - 2000 Chevrolet, C2500, Crew Cab
1992 - 2000 Chevrolet, C3500, Crew Cab
1992 - 2000 Chevrolet, K2500, Crew Cab
1992 - 2000 Chevrolet, K3500, Crew Cab
Trailer Hitch Specs:
| Part Number | 41524 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
