Installation Instructions for Dodge Van

Part Numbers:

• 41533
• 37070

Wiring Access Location:

• SUV5

Tools Required:

• Drill with 1/2" Drill Bit (if required)
• Wrenches: 3/4", 7/8"

Step-by-Step Instructions:

1. Prepare Frame Rail:

   • If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.

2. Fishwire Fasteners (if required):

   • For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.

3. Position Hitch:

   • Raise the hitch into position, aligning it with the frame rails.

4. Install Fasteners:

   • For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
   • For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.

5. Tighten All Fasteners:

   • Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
   • Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).

6. Ensure Proper Clearance:

   • Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.

Torque Specifications:

• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
• M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)

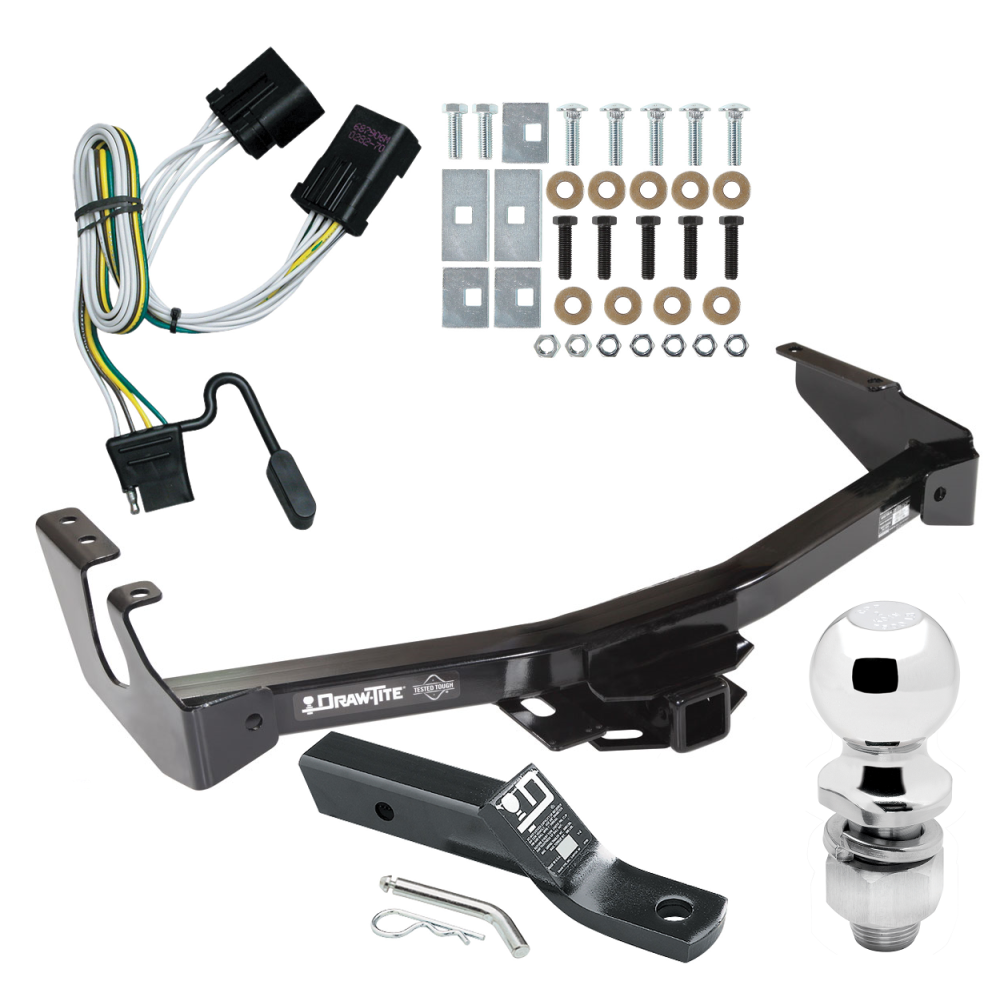

Hardware List:

• (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
• (2) Blocks, 1/4" x 1-1/2" x 2" (1277)
• (2) Blocks, 1/4" x 1-1/2" x 3" (1711)
• (4) Hex Nuts, 1/2"-13
• (4) Conical Toothed Washers, 1/2"
• (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
• (2) Conical Toothed Washers, M12

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 6,000 lb
  • Max Tongue Weight: 600 lb
• Weight Distributing:
  • Max Gross Trailer Weight: 10,000 lb
  • Max Tongue Weight: 1,000 lb

Additional Notes:

• This hitch does not fit vehicles equipped with a factory step bumper.
• Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118381

Wiring Access Location:

• Underneath the vehicle, behind the bumper, on the driver’s side.

Tools Required:

• None specified.

Step-by-Step Instructions:

For Full-Size Dodge Vans Without Factory 7-Way:

1. Locate the vehicle’s trailer harness connector (A), found under the vehicle, behind the bumper, on the driver’s side (Fig. 1).

2. Remove the protective cap (B) from the connector (A) and save it.

   • Ensure the mating surfaces of the connectors are free of dirt. Clean if necessary.

3. Connect the T-Connector adapter end (C) to the vehicle’s connector (A).

   • Ensure the T-Connector is fully inserted and the locking tabs are in place.

4. Place the protective cap (B) on the remaining plug end (Fig. 1).

5. Skip to step 7 for final installation instructions.

For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):

1. Remove the screws holding the 7-way trailer tow bracket in place (Fig. 2).

2. Pull out the 7-way connector to access the plug on its back.

   • Slide the red locking tab to the unlocked position and separate the connector (A) (Fig. 3).

3. Connect the T-Connector adapter in between the separated halves (B).

   • Slide the red locking tab back to the locked position.

4. Route the 4-flat connector away from the 7-way bracket.

5. Push the 7-way connector back into the bracket and reinstall the screws.

Final Steps for All Installations:

6. Test the installation with a test light or trailer.

   • Specifications:
     • This unit is rated for 7.5 amps per circuit.

Hardware List:

• T-Connector adapter.
• Protective cap.

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.
• Do not exceed the specified amperage rating to prevent damage or fire.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.
