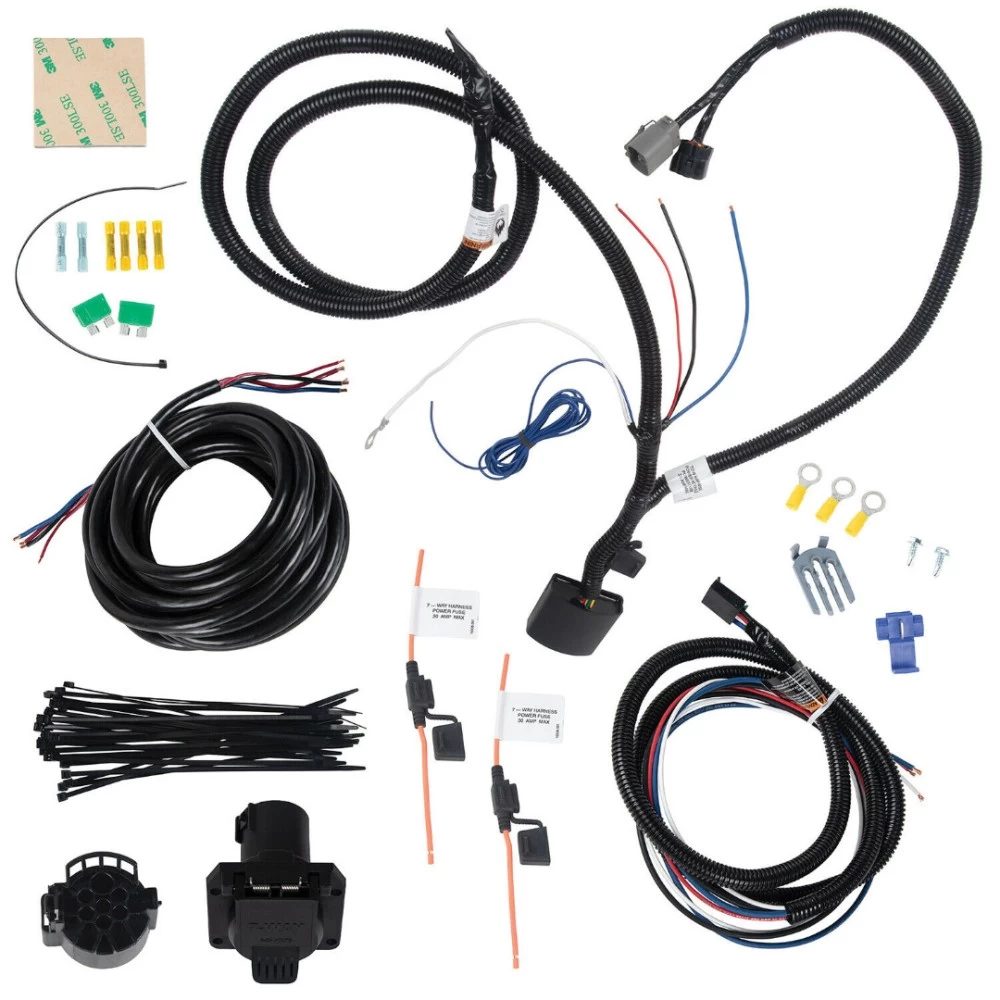

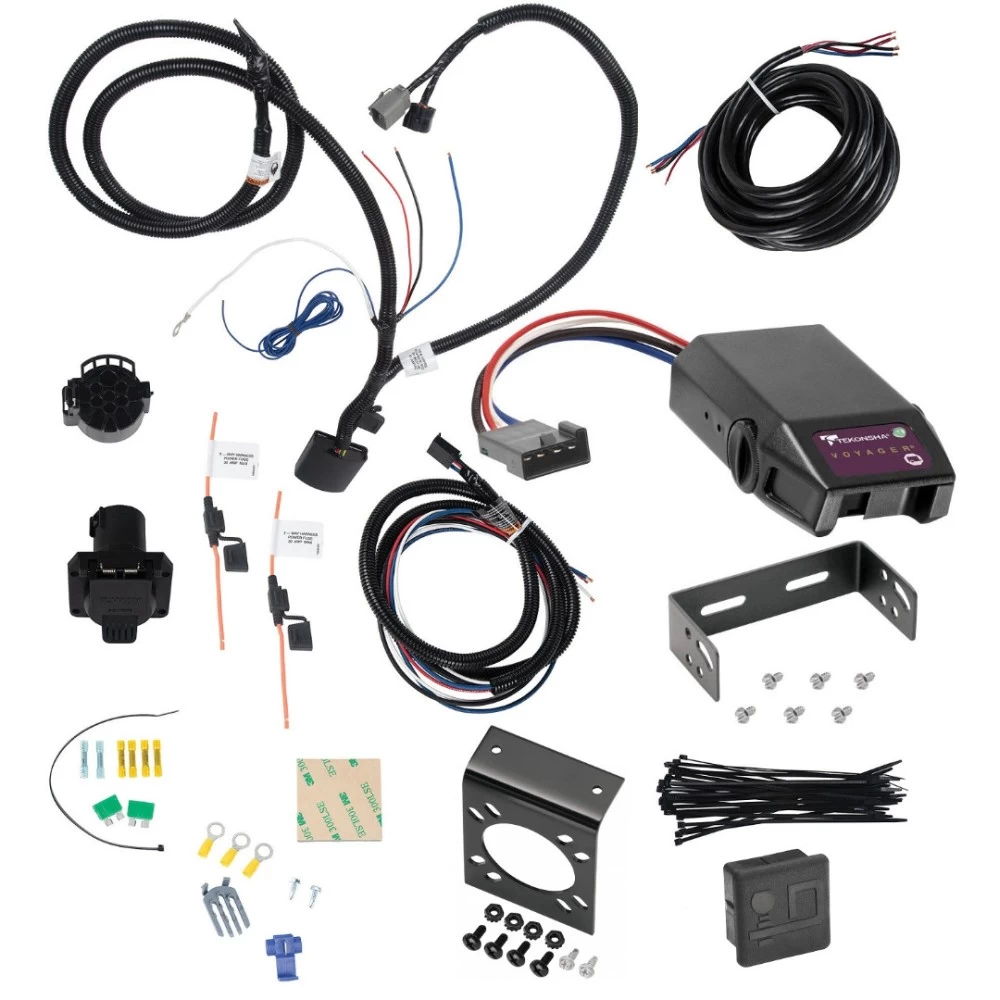

7-Way RV Trailer Wiring W/ Brake Control For 13-21 Santa Fe 15-21 Sedona 07-21 Sorento

Part Number	22122
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

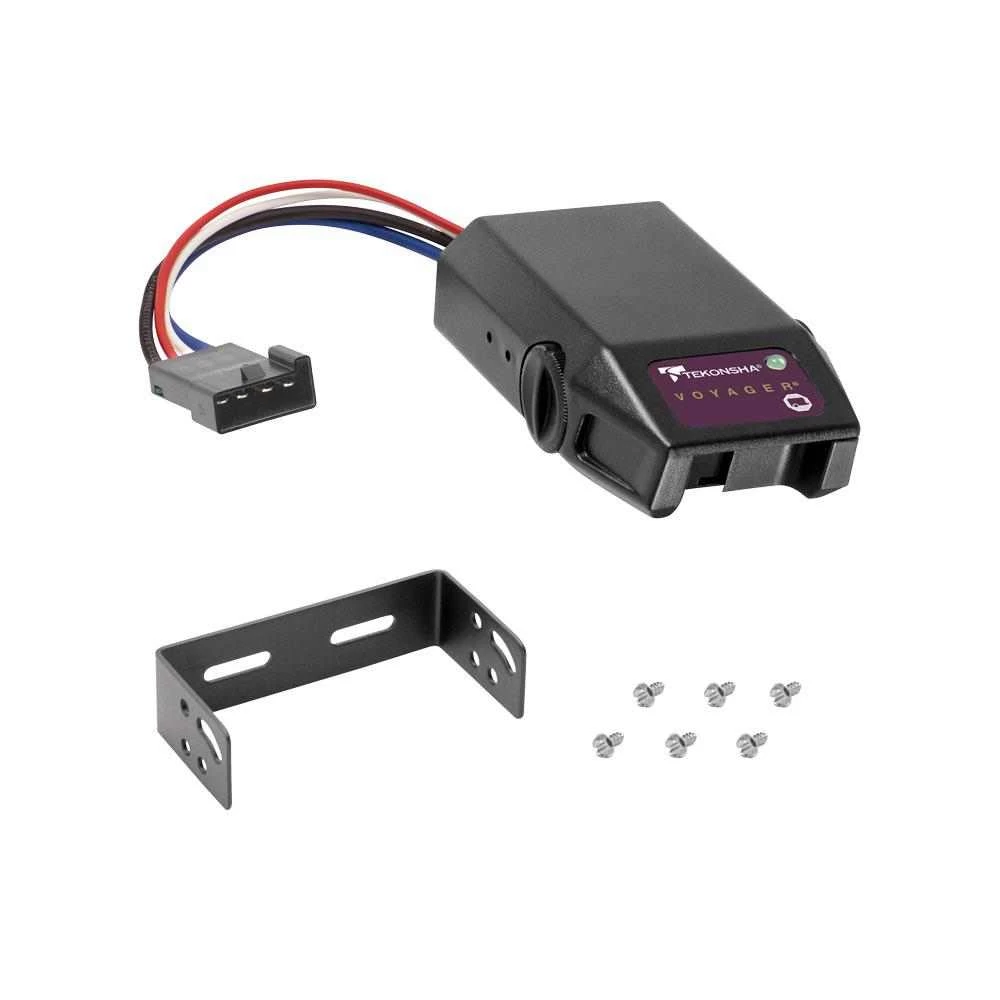

Brake Control Specs:

Part Number	9030
Brand	Tekonsha
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	5 Year Limited
Features:	Broad control range makes setting quick and easy. As braking power is applied, the LED changes color gradually from green, completed circuit, to red, to indicate relative braking power. Advanced electronics minimize false braking for smoother ride. Electric trailer brake control for up to 4 braking axles. Plug-N-Play feature allows quick and easy connection. 5 year limited warranty.
Installation Instructions

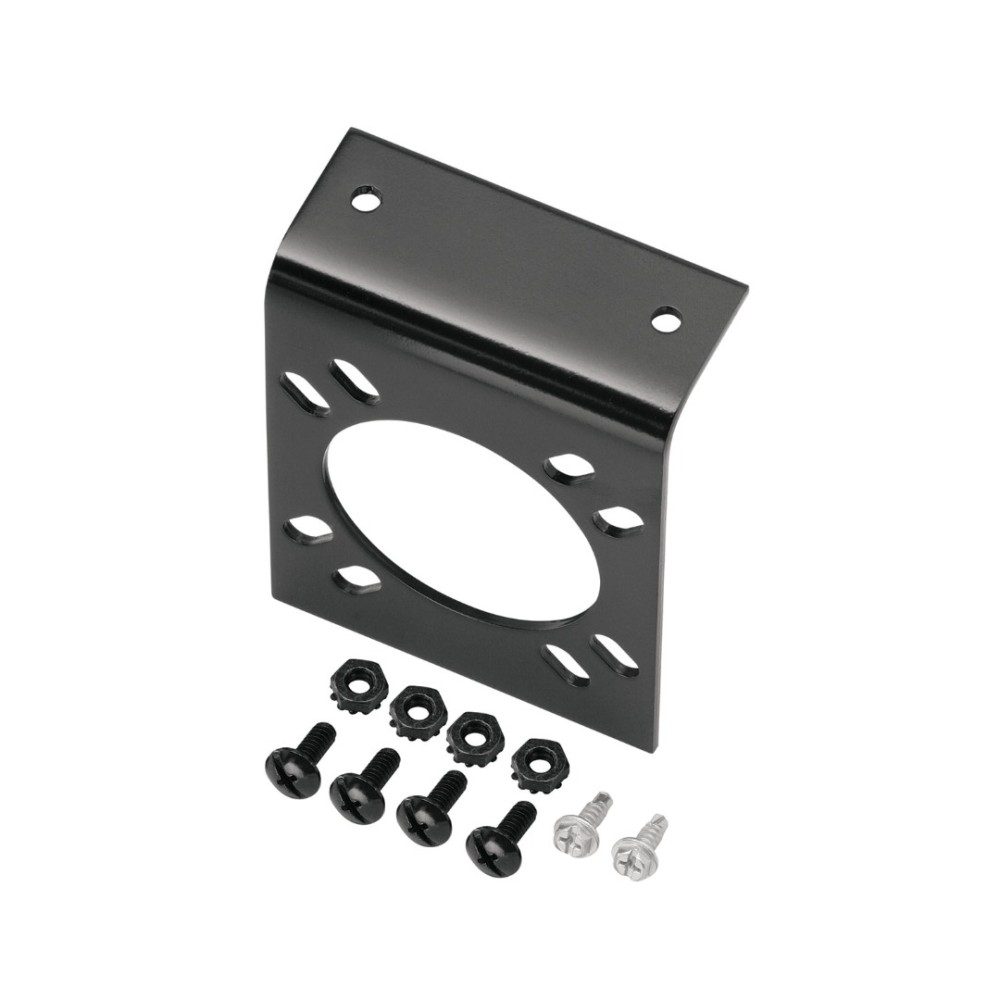

7-Way Mount Bracket

Part Number	20212
Fits	7-Way Flat Pin Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

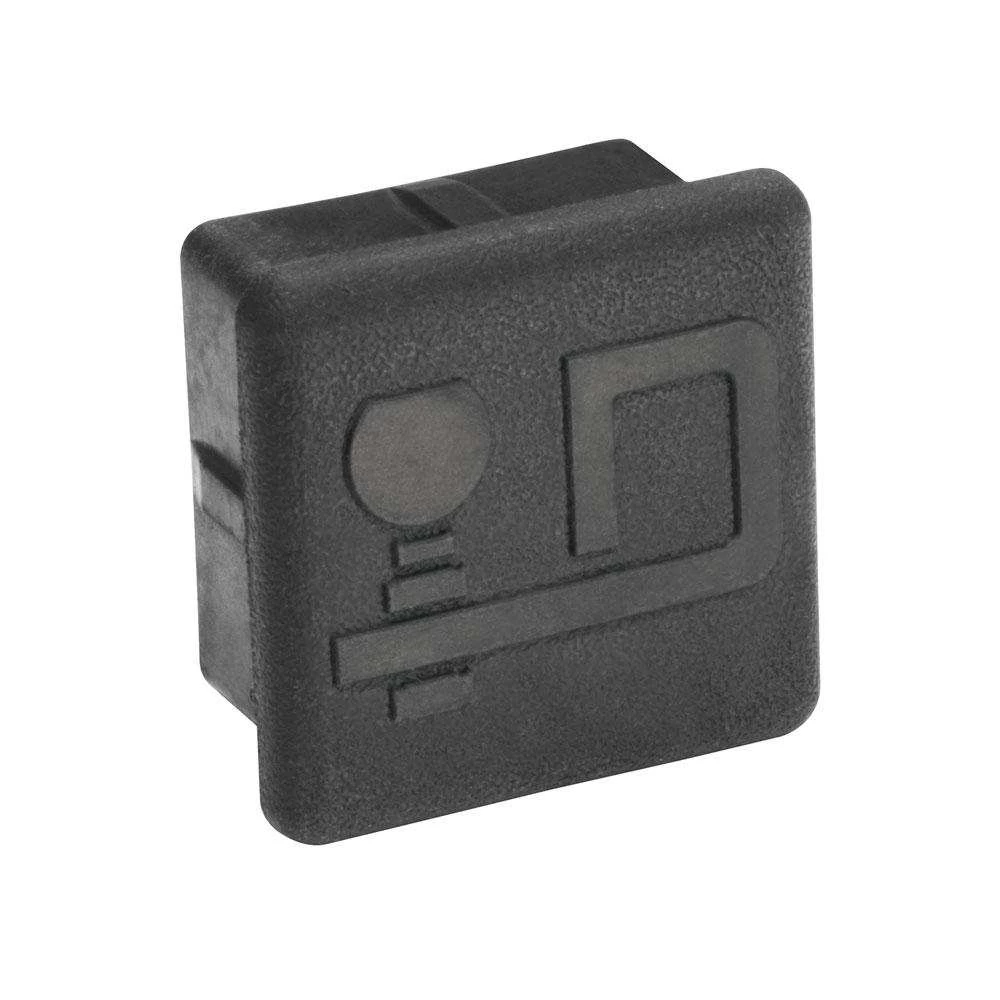

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any  2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your  2" x 2" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year



Questions or Comments? Call 702-374-8999


Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
