Trailer Tow Hitch For 84-95 Toyota Pickup Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 84-95 Toyota Pickup Receiver w/ 1-7/8" and 2" Ball
$388.72
- Stock: In Stock
- Brand: Draw-Tite
- Model: 75031 23 63845 63816

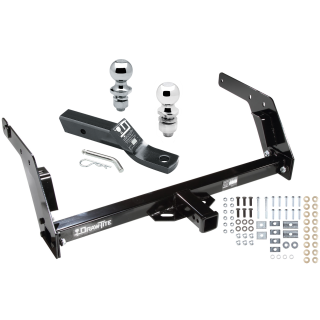

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1984 - 1995 Toyota, Pickup, Except T-100
Trailer Hitch Specs:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1984 - 1995 Toyota, Pickup, Except T-100
Trailer Hitch Specs:
| Part Number | 75031 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Fits 2" square receiver tube opening
Includes pin and clip
Black powder coat finish over A-Coat
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
Includes pin and clip
Black powder coat finish over A-Coat
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
When installing the ball, torgue to 160 ft. lbs
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
When installing the ball, torgue to 250 ft. lbs
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
