Installation Instructions for Mercedes ML320, ML350, ML430, and ML500

Part Numbers:

• 75087
• 87469
• 44720

Wiring Access Location:

• SUV3

Tools Required:

• Screwdriver (Standard)
• Wrenches: 10mm, 21mm, 9/16", 11/16", 3/4"
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Rear Fascia:

   • Remove 4 or 6 bolts from the rear fascia as shown in Figure 1 and carefully remove the fascia.
   • Note: Some models have a cellular phone antenna and module attached to the fascia. Ensure fascia is supported when removed.

2. Remove Fascia Door:

   • Detach the fascia door from the fascia.

3. Install Hitch and Reinforcement Brackets:

   • Position the hitch and reinforcement brackets as shown in Figure 2.
   • For 2002 and later models, trim the fascia as shown in Figure 3.

4. Reinstall Rear Fascia:

   • Reattach the rear fascia using the bolts removed in Step 1.

5. Fascia Door Adjustment:

   • Either return the fascia door to the vehicle owner or trim it to fit the hitch. Consult the vehicle owner before trimming.

6. Tighten Fasteners:

   • Tighten all fasteners to the specified torque values:
     • 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m)
     • 1/2"-13 GR5 fasteners: 50 lb-ft (68 N·m)
     • M14 x 1.50 CL10.9 fasteners: 117 lb-ft (159 N·m)

Torque Specifications:

• 3/8"-16 GR5: 30 lb-ft (41 N·m)
• 1/2"-13 GR5: 50 lb-ft (68 N·m)
• M14 x 1.50 CL10.9: 117 lb-ft (159 N·m)

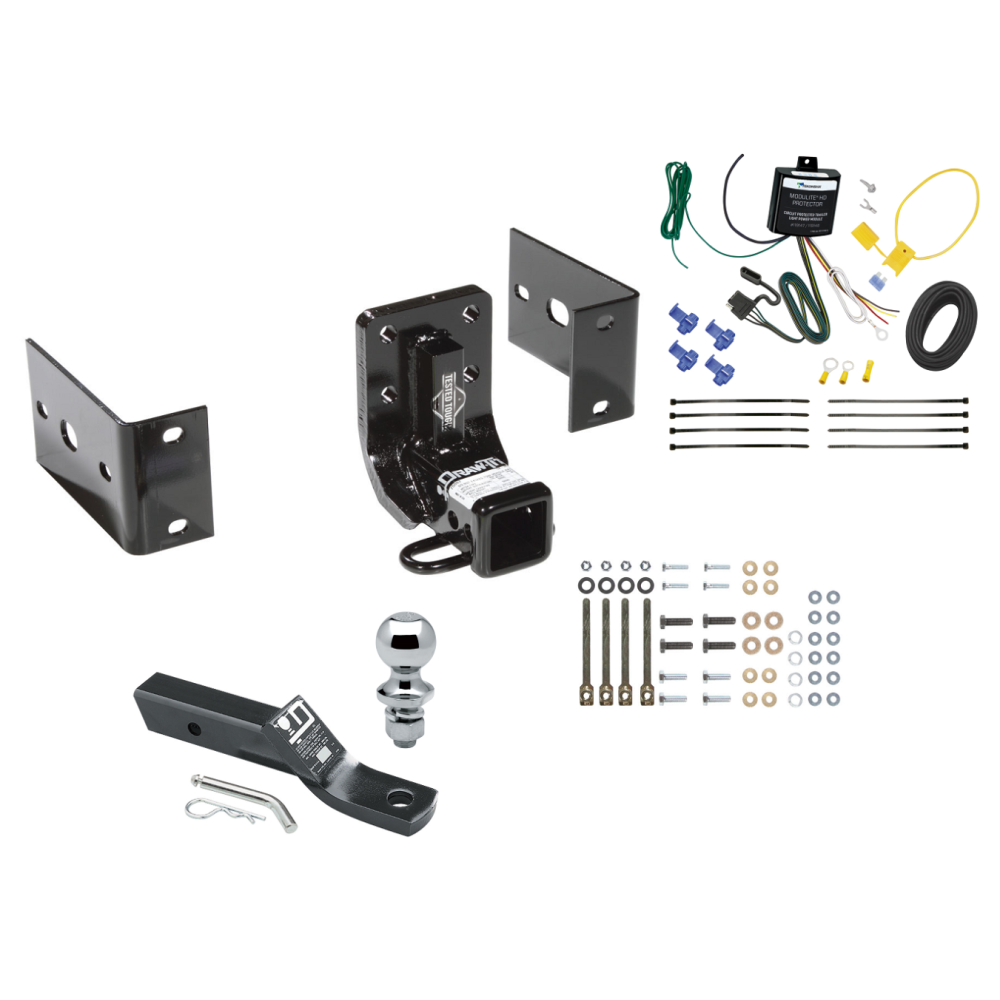

Hardware List:

• (4) Hex Bolts, M14 x 1.50 x 45mm CL10.9
• (12) Flat Washers, 5/16"
• (4) Lock Washers, 9/16"
• (4) Flat Washers (Hardened), 9/16"
• (4) Hex Bolts, 1/2"-13 x 1.50 GR5
• (4) Hex Bolts, 3/8"-16 x 1.50 GR5
• (4) Conical Toothed Washers, 1/2"
• (8) Conical Toothed Washers, 3/8"
• (4) Handle Nut Assemblies, 1/2"-13
• (4) Hex Nuts, 3/8"-16

Safety Notes:

• Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lb (2,270 kg)
  • Max Tongue Weight: 500 lb (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 5,000 lb (2,270 kg)
  • Max Tongue Weight: 500 lb (227 kg)

Additional Notes:

• This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
• Ensure all fasteners are properly torqued before towing.

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
