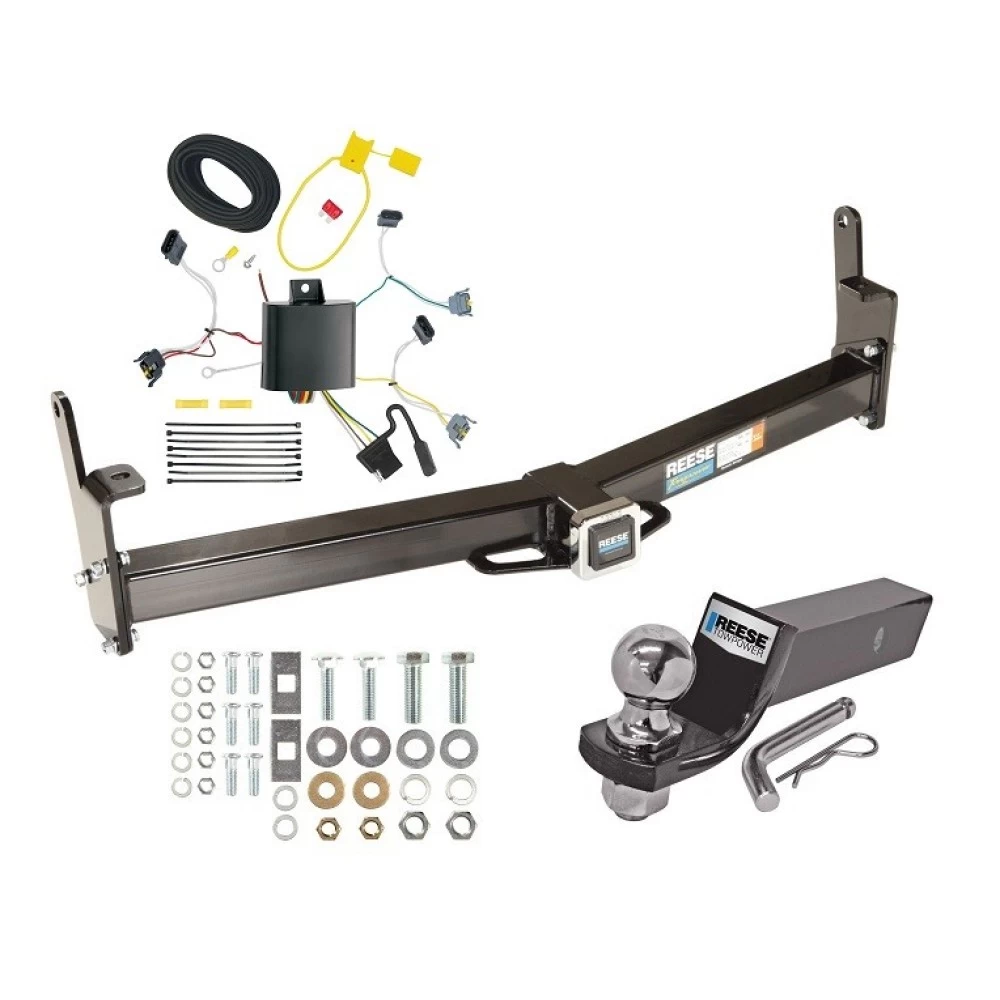

Reese Trailer Tow Hitch For 95-01 Ford Explorer 97-01 Mercury Mountaineer Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Ford Explorer 2 & 4 Door, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75096
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
Attachment of Hitch-to-Frame Adapter Brackets:
-
Remove Tow Hooks (If Equipped):
- Remove the tow hooks from the vehicle frame and return them to the owner for possible reinstallation if the hitch is removed.
-
Attach Adapter Brackets:
- Secure the adapter brackets to the rearmost existing holes in the vertical surfaces of the vehicle frame. These holes are approximately 18" from the rear end of the frame.
-
Position Adapter Brackets:
- Orient the brackets as shown in Figure 1. Align the brackets with the existing holes in the frame.
-
Install Bracket-to-Frame Fasteners:
- Tighten the bracket-to-frame fasteners as shown in Figure 2.
Attachment of Hitch Assembly to Vehicle:
-
Measure and Adjust Brackets:
- Ensure spacing between the "Long" hitch brackets is 33-7/8". Adjust if needed for proper alignment.
-
Raise Hitch into Position:
- Align the hitch holes with the holes in the adapter bracket:
- Use the lower holes in the adapter bracket for the passenger side.
- Use the upper holes in the adapter bracket for the driver’s side.
- Align the hitch holes with the holes in the adapter bracket:
-
Secure Hitch:
- Install hitch-to-adapter bracket fasteners as shown in Figure 3.
-
Drill Holes for 1994 and Prior Models:
- Using the hitch as a template, drill a 1/2" hole through the frame rail.
-
Install Fasteners for 1994 and Later Models:
- Secure the hitch assembly using the provided fasteners.
-
Tighten All Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (6) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (6) Lock Washers
- (6) Hex Nuts
- (6) Blocks (1/4" x 1-1/2" x 2")
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118345
- Application: Compatible vehicles
Tools Required:
- Drill with 3/32” drill bit
- Philips Head Screwdriver
Step-by-Step Instructions:
-
Remove the Vehicle Taillights:
- Open the vehicle’s rear tailgate.
- Remove the two screws on each taillight assembly.
- Carefully pull the taillight assemblies away to avoid damage.
-
Prepare the T-Connector Harness:
- Stretch the T-connector wiring harness across the rear bumper, ensuring the connector with the green wire is on the passenger (right) side.
-
Install the Driver-Side T-Connector:
- On the driver’s side, route the black box and connectors with the yellow and red wires through the access hole below the vehicle and up into the taillight opening.
- Disconnect the top gray taillight socket and plug the T-Connector with the yellow wire between the disconnected halves.
- Disconnect the center black taillight socket and plug the T-Connector with the red wire between the disconnected halves.
- Ensure all connectors are fully seated, and the locking tabs are secure.
-
Ground the White Wire:
- Drill a 3/32” hole into the metal cross brace inside the taillight opening.
- Attach the white wire using the provided eyelet and screw.
-
Install the Passenger-Side T-Connector:
- Route the T-Connector with the green wire across the vehicle and up into the passenger-side taillight opening.
- Disconnect the top gray taillight socket and plug the T-Connector with the green wire between the disconnected halves.
- Ensure all connectors are locked securely.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the supplied fuse holder.
- Use the provided ring terminal to connect one end of the fuse holder to the vehicle’s positive (+) battery terminal.
- Use the yellow butt connector to attach the other end of the fuse holder to the included black 12-gauge wire.
-
Route the Power Wire:
- Route the black 12-gauge power wire from the front of the vehicle along the driver-side frame rail toward the rear of the vehicle.
- Avoid routing the wire near hot pipes, heat shields, fuel tanks, or sharp edges.
- Route the wire up through the same access hole used for the driver-side connectors.
-
Connect the Power Wire to the T-Connector:
- Attach the black 12-gauge wire to the red wire on the T-Connector’s black box using the supplied yellow butt connector.
-
Install the Fuse and Test the System:
- Reconnect the vehicle’s negative battery cable.
- Install the provided 10-amp fuse into the fuse holder.
- Use a test light or connect a trailer to verify proper functionality of:
- Running Lights
- Left Turn Signal
- Right Turn Signal
- Brake Lights
-
Mount the Black Module Box:
- Clean a flat area near the black box using rubbing alcohol and water.
- Mount the black module box using the provided foam tape.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure all loose wiring under the vehicle.
- Ensure the wiring is routed safely away from sharp edges, moving parts, and hot components.
-
Route the 4-Flat Connector:
- Route the 4-flat connector through the taillight access hole and secure it under the vehicle.
- Optional: Expose the vehicle’s jack storage compartment by removing the access panel. Slit the rubber grommet between the taillight opening and the jack storage compartment. Push the 4-flat connector through for storage.
-
Reassemble the Vehicle Components:
- Reinstall the access panels and the taillight assemblies in their original positions.
Specifications:
- Current Rating: 4 amps per circuit
Safety Notes:
- Verify the installation by testing all trailer lighting functions before towing.
- Avoid overloading the circuits beyond the specified amperage limits.
- Routinely inspect the wiring system for signs of wear, corrosion, or damage.
Warnings:
- Do not route wires near hot exhaust components, sharp edges, or areas that may pinch the wiring.
- Follow all safety precautions when working near the vehicle’s battery.
Technical Support:
For further assistance, contact the manufacturer’s technical support team.
Note: Store the 4-flat connector securely when not in use to prevent damage.
