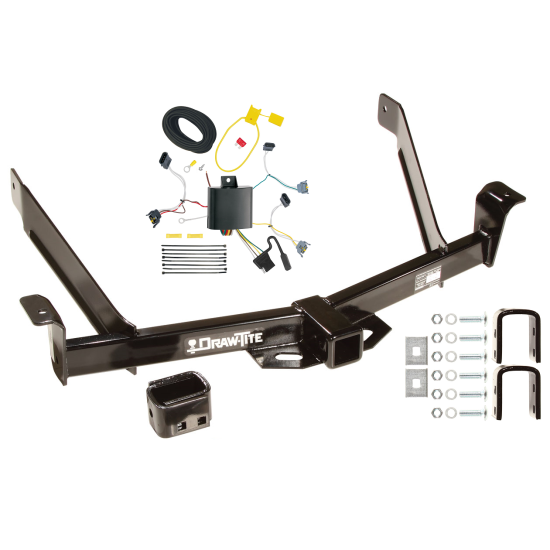

Trailer Tow Hitch For 95‑01 Ford Explorer 97‑01 Mercury Mountaineer w/ Wiring Harness Kit
Model: 75096 118345Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1995 - 2001 Ford, Explorer, All Styles
1997 - 2001 Mercury, Mountaineer, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118345 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 95 96 97 98 99 00 01 1995 1996 1997 1998 1999 2000 2001
$282 43 $435.12 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$435.12 $282 43
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75096 118345
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1995 - 2001 Ford, Explorer, All Styles
1997 - 2001 Mercury, Mountaineer, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118345 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 95 96 97 98 99 00 01 1995 1996 1997 1998 1999 2000 2001
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | Yes |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 7,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 750 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 95-01 Ford Explorer 97-01 Mercury Mountaineer w/ Wiring Harness Kit Install Notes
Installation Instructions for Ford Explorer 2 & 4 Door, Mazda Navajo, and Mercury Mountaineer
Part Numbers:
- 75096
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
Attachment of Hitch-to-Frame Adapter Brackets:
-
Remove Tow Hooks (If Equipped):
- Remove the tow hooks from the vehicle frame and return them to the owner for possible reinstallation if the hitch is removed.
-
Attach Adapter Brackets:
- Secure the adapter brackets to the rearmost existing holes in the vertical surfaces of the vehicle frame. These holes are approximately 18" from the rear end of the frame.
-
Position Adapter Brackets:
- Orient the brackets as shown in Figure 1. Align the brackets with the existing holes in the frame.
-
Install Bracket-to-Frame Fasteners:
- Tighten the bracket-to-frame fasteners as shown in Figure 2.
Attachment of Hitch Assembly to Vehicle:
-
Measure and Adjust Brackets:
- Ensure spacing between the "Long" hitch brackets is 33-7/8". Adjust if needed for proper alignment.
-
Raise Hitch into Position:
- Align the hitch holes with the holes in the adapter bracket:
- Use the lower holes in the adapter bracket for the passenger side.
- Use the upper holes in the adapter bracket for the driver’s side.
- Align the hitch holes with the holes in the adapter bracket:
-
Secure Hitch:
- Install hitch-to-adapter bracket fasteners as shown in Figure 3.
-
Drill Holes for 1994 and Prior Models:
- Using the hitch as a template, drill a 1/2" hole through the frame rail.
-
Install Fasteners for 1994 and Later Models:
- Secure the hitch assembly using the provided fasteners.
-
Tighten All Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (6) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (6) Lock Washers
- (6) Hex Nuts
- (6) Blocks (1/4" x 1-1/2" x 2")
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118345
- Application: Compatible vehicles
Tools Required:
- Drill with 3/32” drill bit
- Philips Head Screwdriver
Step-by-Step Instructions:
-
Remove the Vehicle Taillights:
- Open the vehicle’s rear tailgate.
- Remove the two screws on each taillight assembly.
- Carefully pull the taillight assemblies away to avoid damage.
-
Prepare the T-Connector Harness:
- Stretch the T-connector wiring harness across the rear bumper, ensuring the connector with the green wire is on the passenger (right) side.
-
Install the Driver-Side T-Connector:
- On the driver’s side, route the black box and connectors with the yellow and red wires through the access hole below the vehicle and up into the taillight opening.
- Disconnect the top gray taillight socket and plug the T-Connector with the yellow wire between the disconnected halves.
- Disconnect the center black taillight socket and plug the T-Connector with the red wire between the disconnected halves.
- Ensure all connectors are fully seated, and the locking tabs are secure.
-
Ground the White Wire:
- Drill a 3/32” hole into the metal cross brace inside the taillight opening.
- Attach the white wire using the provided eyelet and screw.
-
Install the Passenger-Side T-Connector:
- Route the T-Connector with the green wire across the vehicle and up into the passenger-side taillight opening.
- Disconnect the top gray taillight socket and plug the T-Connector with the green wire between the disconnected halves.
- Ensure all connectors are locked securely.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the supplied fuse holder.
- Use the provided ring terminal to connect one end of the fuse holder to the vehicle’s positive (+) battery terminal.
- Use the yellow butt connector to attach the other end of the fuse holder to the included black 12-gauge wire.
-
Route the Power Wire:
- Route the black 12-gauge power wire from the front of the vehicle along the driver-side frame rail toward the rear of the vehicle.
- Avoid routing the wire near hot pipes, heat shields, fuel tanks, or sharp edges.
- Route the wire up through the same access hole used for the driver-side connectors.
-
Connect the Power Wire to the T-Connector:
- Attach the black 12-gauge wire to the red wire on the T-Connector’s black box using the supplied yellow butt connector.
-
Install the Fuse and Test the System:
- Reconnect the vehicle’s negative battery cable.
- Install the provided 10-amp fuse into the fuse holder.
- Use a test light or connect a trailer to verify proper functionality of:
- Running Lights
- Left Turn Signal
- Right Turn Signal
- Brake Lights
-
Mount the Black Module Box:
- Clean a flat area near the black box using rubbing alcohol and water.
- Mount the black module box using the provided foam tape.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure all loose wiring under the vehicle.
- Ensure the wiring is routed safely away from sharp edges, moving parts, and hot components.
-
Route the 4-Flat Connector:
- Route the 4-flat connector through the taillight access hole and secure it under the vehicle.
- Optional: Expose the vehicle’s jack storage compartment by removing the access panel. Slit the rubber grommet between the taillight opening and the jack storage compartment. Push the 4-flat connector through for storage.
-
Reassemble the Vehicle Components:
- Reinstall the access panels and the taillight assemblies in their original positions.
Specifications:
- Current Rating: 4 amps per circuit
Safety Notes:
- Verify the installation by testing all trailer lighting functions before towing.
- Avoid overloading the circuits beyond the specified amperage limits.
- Routinely inspect the wiring system for signs of wear, corrosion, or damage.
Warnings:
- Do not route wires near hot exhaust components, sharp edges, or areas that may pinch the wiring.
- Follow all safety precautions when working near the vehicle’s battery.
Technical Support:
For further assistance, contact the manufacturer’s technical support team.
Note: Store the 4-flat connector securely when not in use to prevent damage.
