Installation Instructions for Ford Explorer Sport Trac

Part Numbers:

• 75112
• 44718
• 87008
• 78206 U-Haul

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 13/16", 7/8", 15/16"
• Drill Bits: None

Step-by-Step Instructions:

1. Raise the receiver into position and attach it with the fasteners as shown.
2. Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
3. Tighten all 9/16"-12 GR5 fasteners with a torque wrench to 110 lb-ft (149 N·m).

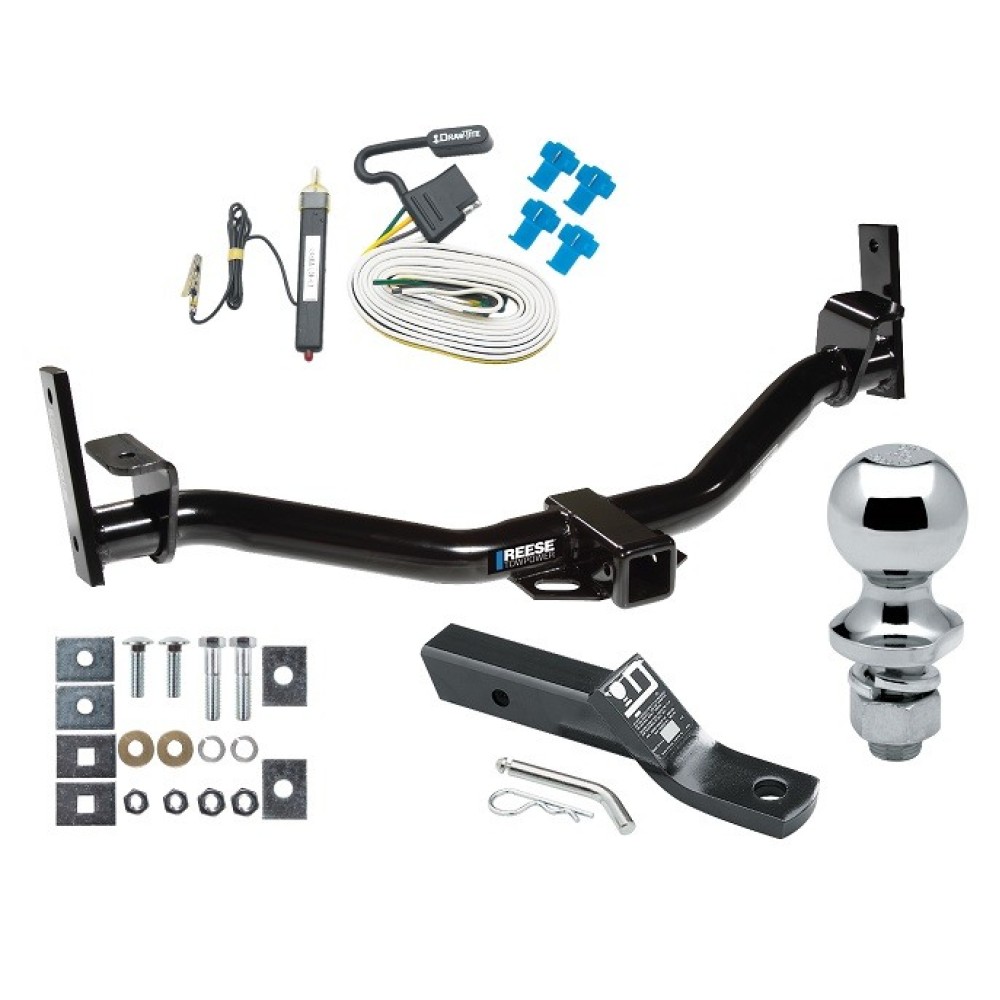

Hardware List:

• (2) Hex Bolts: 9/16"-12 x 2-1/2" GR5
• (2) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
• (2) Spacer Blocks: 1/4" x 1-1/2" x 2"
• (2) Spacer Blocks: 3/8" x 1-1/2" x 2"
• (2) Conical Toothed Washers
• (2) Lock Washers – 9/16"
• (2) Hex Nuts: 1/2"-13
• (2) Hex Nuts: 9/16"-12

Safety Notes:

• Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any hitch or ball that has been damaged.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Maximum Load Ratings:
  • Weight Distributing:
    • Gross Trailer Weight: 6,000 lbs (2,724 kg)
    • Tongue Weight: 600 lbs (272 kg)
  • Weight Carrying (Ball Mount):
    • Gross Trailer Weight: 5,000 lbs (2,270 kg)
    • Tongue Weight: 500 lbs (227 kg)
• Hitch Type: Class III
• Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches
