Reese Trailer Tow Hitch For 02-07 Jeep Liberty Deluxe Package Wiring 2" Ball Mount and Lock

Reese Trailer Tow Hitch For 02‑07 Jeep Liberty Deluxe Package Wiring 2" Ball Mount and Lock

Model: 44082 118524 7005111 7010

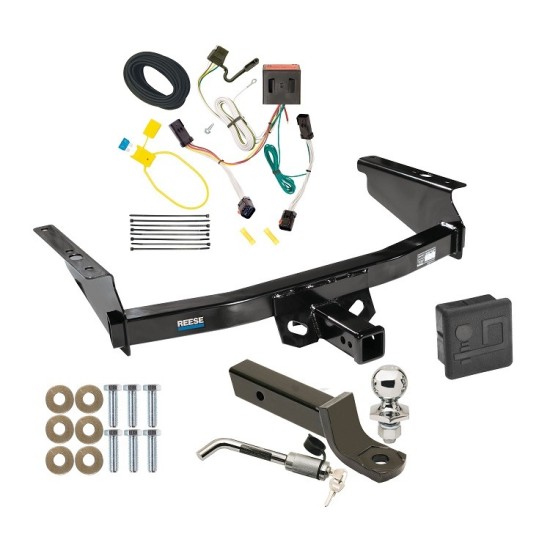

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2002 - 2007 Jeep, Liberty, All Styles

Trailer Hitch Specs:

Part Number	44082
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime

Wiring Kit Specs:

Part Number	118524
Brand	Tekonsha
Warranty	1 Year

Ball Mount Specs:

Part Number	7005111
Brand	Reese Towpower
Finish	Black Powder Coat
Towing Capacity	6000 lbs
Tongue Weight Capacity	600 lbs
Fits	2" Receiver
Drop	2"
Rise	3/4"
Warranty	1 Year

Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 02 03 04 05 06 07 2002 2003 2004 2005 2006 2007

See Full Description

$339 ⁹⁷ $483.25 30% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$483.25 $339 ⁹⁷

Pay in 4 interest-free installments of $84.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $84.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 44082 118524 7005111 7010
Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Interlock Trailer Tow Hitch Ball Mount Security Kit, Trailer Tow Hitch Tube Cover

Be the first to ask a question.

Description

Part Number	44082
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime

Wiring Kit Specs:

Part Number	118524
Brand	Tekonsha
Warranty	1 Year

Ball Mount Specs:

Part Number	7005111
Brand	Reese Towpower
Finish	Black Powder Coat
Towing Capacity	6000 lbs
Tongue Weight Capacity	600 lbs
Fits	2" Receiver
Drop	2"
Rise	3/4"
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Partial list of fitment years: 02 03 04 05 06 07 2002 2003 2004 2005 2006 2007

Tags: 44082 , 118524 , 7005111 , 7010 , Reese , Trailer , Tow , Hitch , 02-07 , Jeep , Liberty , Deluxe , Package , Wiring , 2" , Ball , Mount , and , Lock , 02 , 03 , 04 , 05 , 06 , 07 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007

Get Expert Help

Reese Trailer Tow Hitch For 02-07 Jeep Liberty Deluxe Package Wiring 2" Ball Mount and Lock Install Notes

Installation Instructions for T-Connector Adapter for Jeep Liberty

Part Numbers:

118524

Wiring Access Location:

Rear taillight assemblies and under the vehicle near the bumper.

Tools Required:

Trim panel remover.
10mm socket and ratchet or wrench.
Drill with a 3/32" drill bit.
Wire crimpers and cutters.
Philips head screwdriver.
Test probe.
T20 Torx.

Step-by-Step Instructions:

Open the rear glass gate and tailgate to access the screws that hold the taillights in place.
- On the driver’s side, locate the T-20 Torx screws near the tailgate hinge. Remove the screws and carefully pry the taillight housings rearward away from the vehicle, being cautious not to damage the alignment tabs.
Disconnect the wire harness from both taillight sockets.
- Slide the red locking tab on the harness connector to the unlocked position and disconnect the connectors.
Starting on the driver’s side:
- Plug the T-Connector harness containing the yellow wire in between the vehicle’s connectors. Slide the red locking tab into the locked position.
Route the harness containing the green wire and the 4-flat down through the opening behind the driver’s side taillight.
- Route the 4-flat harness to the center of the vehicle and the harness with the green wire under the vehicle, up through the opening behind the passenger’s side taillight.
Repeat step 4 for the passenger’s side using the T-Connector harness with the green wire.
Locate a suitable grounding point near the adapter:
- Clean dirt and rustproofing from the area. Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury.
On the driver’s side:
- Locate the red 12-gauge power wire from the T-Connector box. Attach the black 12-gauge wire provided. Route the black wire through the taillight socket opening, behind the bumper, along the frame or wiring thresholds, into the engine compartment, and to the battery. Avoid areas that may pinch, break, or melt the wire.
Disconnect the vehicle’s negative battery cable.
- Install the yellow fuse holder on the positive battery cable. Attach the ring terminal and secure it to the battery’s positive post.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
Reconnect the vehicle’s negative battery cable.
- Insert the 15-amp fuse into the fuse holder and close the cap.
Test the installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition. Re-insert the key and test all functions.
Secure the T-Connector black box behind the driver’s side taillight assembly using the provided cable ties or double-sided tape.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
Reinstall the taillight assemblies and other components removed during installation, ensuring no wires are pinched or cut.
Mount the 4-flat connector in a suitable location under the vehicle.
- Secure the remainder of the harness with the provided cable ties.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).

Hardware List:

T-Connector adapter.
Black converter box.
Yellow fuse holder with 15-amp fuse.
Eyelet and screw.
Double-sided tape.
Cable ties.

Safety Notes:

Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Ensure all connections are clean and securely fastened.

Manufacturer Notes:

Follow all warnings and installation instructions provided.
Use a test light or trailer to confirm proper installation.
Refer to the vehicle owner’s manual for additional details.
