Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball

Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 03-14 Volvo XC90 Receiver w/ 1-7/8" and 2" Ball
$275.02
  • Stock: Pre-Order
  • Brand: Draw-Tite
  • Model: 75152 23 63845 63816

Applies to this product only

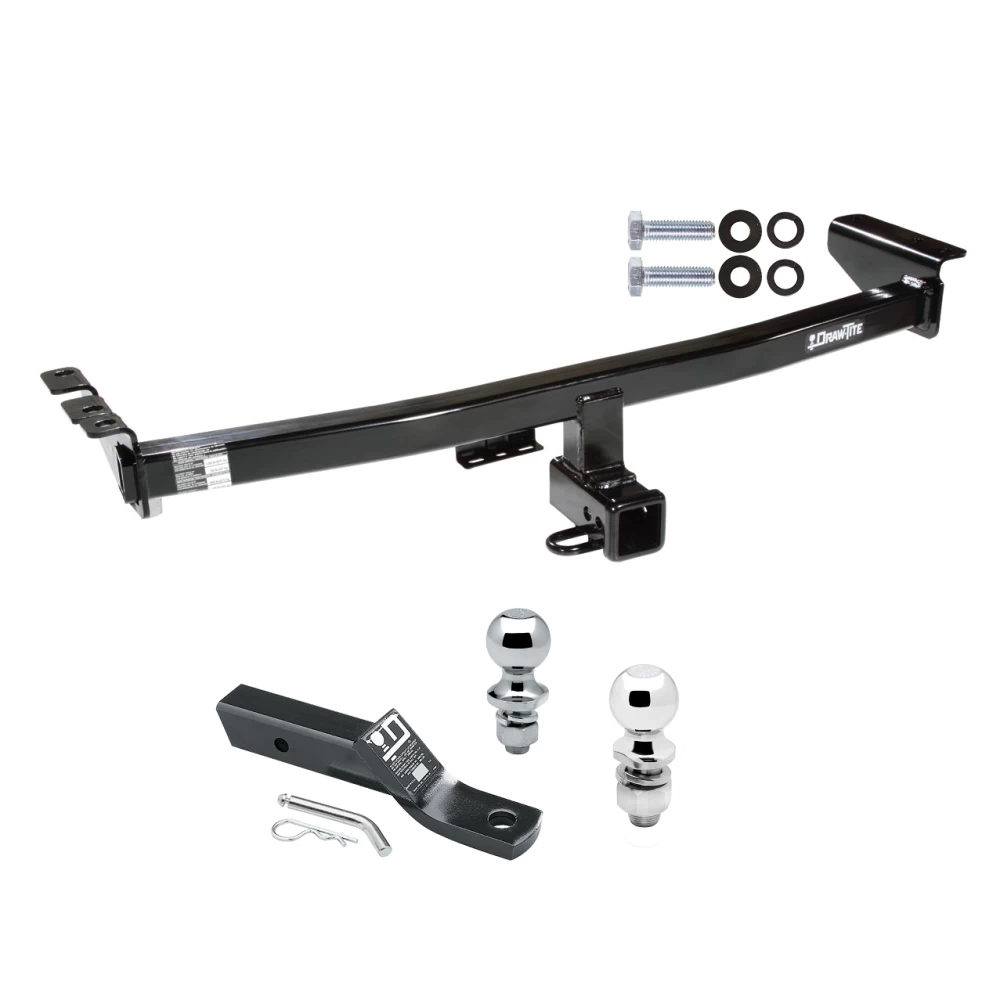

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles
2003 - 2014    Volvo, XC90, All Styles

Trailer Hitch Specs:
Part Number 75152
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 5,000 lbs
Max GTW w/ weight distribution 5,000 lbs
Max Tongue Weight 500 /500 lbs
Warranty Lifetime
Installation Instructions

Ball Mount Specs:

Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime


Hitch Ball Specs:

Part Number 63816
Brand Draw-Tite
Size 1-7/8" x 1" x 2-1/8",  torgue to 160 ft. lbs
Towing Capacity 2,000 lbs. GTW
Material Chrome
Torque torgue to 160 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime



Hitch Ball Specs:

Part Number 63845
Brand Draw-Tite
Size 2" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque Torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime


Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.


Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014



Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 5,000 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 500 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
