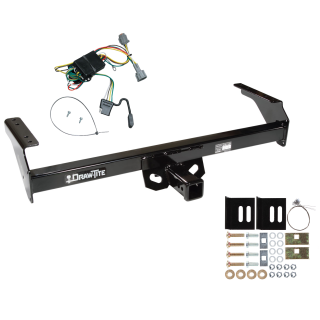

Trailer Tow Hitch For 98‑04 Nissan Frontier w/ Wiring Harness Kit
Model: 75186 118362Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2004 Nissan, Frontier, All Styles
Trailer Hitch Specs:
| Part Number | 75186 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 400/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118362 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 98 99 00 01 02 03 04 1998 1999 2000 2001 2002 2003 2004
$329 68 $511.02 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$511.02 $329 68
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $82.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75186 118362
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2004 Nissan, Frontier, All Styles
Trailer Hitch Specs:
| Part Number | 75186 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 400/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118362 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 98 99 00 01 02 03 04 1998 1999 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch For 98-04 Nissan Frontier w/ Wiring Harness Kit Install Notes
Installation Instructions for Nissan Pick-Up
Part Numbers:
- 75186
- 44148
- 87491
- 78273 (U-Haul)
Wiring Access Location:
- PU4
Tools Required:
- Wrenches: 3/4"
- Drill Bits: 1/2"
Step-by-Step Instructions for Models with 75" Bed:
- Remove the bolt from the bottom of the frame on both sides of the vehicle. Insert a 1/2” carriage bolt and a large bolt plate through the large rear hole in the frame. Repeat for the other side.
- Lift the hitch up to the frame with the carriage bolts going down through the second hole from the forward end of the hitch bracket. Install 1/2" lock washers and nuts on the bolts. Hand-tighten fasteners.
- Attach the “L” brackets to hitch brackets using the 1/2" carriage bolts with small bolt plates and the 1/2” hex bolts with 1/2” conical washers. Hold the hitch level. Using one of the obround holes in the “L” bracket as a guide, drill a 1/2" hole into the bumper bracket. Install 1/2" hex bolt, serrated washer, lock washer, and nut on both sides.
- Tighten all 1/2” fasteners to 75 lb-ft (102 N·m).
Step-by-Step Instructions for Models with 56" Bed:
- Remove the bolt from the bottom of the frame on both sides of the vehicle. Insert a 1/2” carriage bolt and a large bolt plate through the large rear hole in the frame. Bolt leaders may be used to assist installation. Repeat for the other side.
- Lift the hitch up to the frame with the carriage bolts going down through the second hole from the rear in the hitch bracket. Install 1/2" lock washers and nuts on the bolts.
- Using the front hole in the bracket as a guide, drill a 1/2" hole in the frame. Insert a 1/2" carriage bolt with a small bolt plate down through the frame and the hitch bracket. Install a 1/2" lock washer and nut on the bolt. Repeat for the other side.
Note: The above installation can be used for models with 75” beds, but longer ball mounts and weight distributing shanks will be required.
Hardware List:
- (4) 1/2-13 x 2.00 Carriage Bolts
- (2) 0.25 x 1.00 x 2.00 Blocks
- (8) 1/2” Lock Washers
- (8) 1/2-13 Hex Nuts
- (2) 0.25 x 1.50 x 3.00 Blocks
- (4) 1/2-13 x 1.25 Bolts
- (4) 1/2” Conical Washers
- (2) “L” Brackets
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 550 lbs (250 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118362
Wiring Access Location:
- Underneath the truck bed near the passenger side frame rail.
Tools Required:
- Drill with a 3/32" drill bit.
- Electrical tape or tie straps (not provided).
Step-by-Step Instructions:
-
Locate the vehicle's tail light wiring harness underneath the truck bed near the passenger side frame rail.
- The harness will have connection points matching the ends of the T-Connector adapter.
-
Separate the vehicle's connectors.
- Note: Be careful not to damage the locking tabs.
- Ensure the mating surfaces of the connectors are free of dirt. Clean if necessary.
-
Insert the T-Connector harness between the vehicle's connectors.
-
Locate a suitable grounding point near the connectors, such as the vehicle's frame or crossmember.
- Caution: Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle's crossmember or another mounting point using electrical tape or tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 4 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
