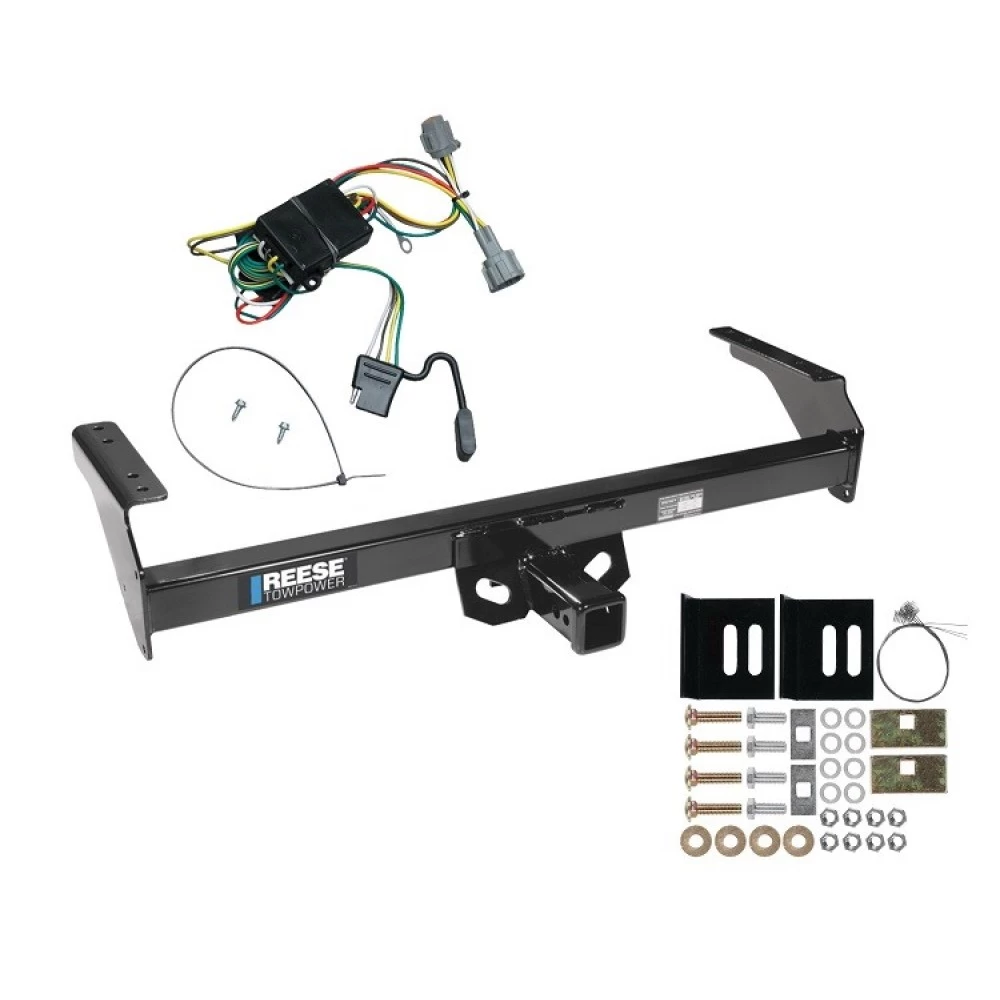

Reese Trailer Tow Hitch For 98-04 Nissan Frontier w/ Wiring Harness Kit Install Notes
Installation Instructions for Nissan Pick-Up
Part Numbers:
- 75186
- 44148
- 87491
- 78273 (U-Haul)
Wiring Access Location:
- PU4
Tools Required:
- Wrenches: 3/4"
- Drill Bits: 1/2"
Step-by-Step Instructions for Models with 75" Bed:
- Remove the bolt from the bottom of the frame on both sides of the vehicle. Insert a 1/2” carriage bolt and a large bolt plate through the large rear hole in the frame. Repeat for the other side.
- Lift the hitch up to the frame with the carriage bolts going down through the second hole from the forward end of the hitch bracket. Install 1/2" lock washers and nuts on the bolts. Hand-tighten fasteners.
- Attach the “L” brackets to hitch brackets using the 1/2" carriage bolts with small bolt plates and the 1/2” hex bolts with 1/2” conical washers. Hold the hitch level. Using one of the obround holes in the “L” bracket as a guide, drill a 1/2" hole into the bumper bracket. Install 1/2" hex bolt, serrated washer, lock washer, and nut on both sides.
- Tighten all 1/2” fasteners to 75 lb-ft (102 N·m).
Step-by-Step Instructions for Models with 56" Bed:
- Remove the bolt from the bottom of the frame on both sides of the vehicle. Insert a 1/2” carriage bolt and a large bolt plate through the large rear hole in the frame. Bolt leaders may be used to assist installation. Repeat for the other side.
- Lift the hitch up to the frame with the carriage bolts going down through the second hole from the rear in the hitch bracket. Install 1/2" lock washers and nuts on the bolts.
- Using the front hole in the bracket as a guide, drill a 1/2" hole in the frame. Insert a 1/2" carriage bolt with a small bolt plate down through the frame and the hitch bracket. Install a 1/2" lock washer and nut on the bolt. Repeat for the other side.
Note: The above installation can be used for models with 75” beds, but longer ball mounts and weight distributing shanks will be required.
Hardware List:
- (4) 1/2-13 x 2.00 Carriage Bolts
- (2) 0.25 x 1.00 x 2.00 Blocks
- (8) 1/2” Lock Washers
- (8) 1/2-13 Hex Nuts
- (2) 0.25 x 1.50 x 3.00 Blocks
- (4) 1/2-13 x 1.25 Bolts
- (4) 1/2” Conical Washers
- (2) “L” Brackets
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 550 lbs (250 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118362
Wiring Access Location:
- Underneath the truck bed near the passenger side frame rail.
Tools Required:
- Drill with a 3/32" drill bit.
- Electrical tape or tie straps (not provided).
Step-by-Step Instructions:
-
Locate the vehicle's tail light wiring harness underneath the truck bed near the passenger side frame rail.
- The harness will have connection points matching the ends of the T-Connector adapter.
-
Separate the vehicle's connectors.
- Note: Be careful not to damage the locking tabs.
- Ensure the mating surfaces of the connectors are free of dirt. Clean if necessary.
-
Insert the T-Connector harness between the vehicle's connectors.
-
Locate a suitable grounding point near the connectors, such as the vehicle's frame or crossmember.
- Caution: Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle's crossmember or another mounting point using electrical tape or tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 4 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
