Installation Instructions for Range Rover Evoque

Part Numbers:

• 75227
• 87009
• 44779

Applications:

• 2012-Current Range Rover Evoque (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 19mm, 22mm, 3/4"
• Flat Head Screwdriver
• Tin Snips
• Utility Knife
• Marker
• Tape Measure

Installation Time:

• Approximately 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach 3 rubber isolators from the exhaust: 1 on the driver side and 2 on the passenger side.
   • Use a spray lubricant to assist. Lower the exhaust slowly and support it to prevent damage.

2. Remove Rear Heat Shield:

   • Trace the heat shield with a permanent marker where it touches the inside fascia near both exhaust pipes (see Figure 1).
   • Remove the rear heat shield by unscrewing (4) 10mm hex bolts and (8) screws.
   • Set the heat shield aside for trimming later.

3. Prepare Frame for Hitch Installation:

   • Use the reverse fishwire technique to insert the 1/2" carriage bolt (Item 7) and block (Item 6) through the rearward access hole on the driver side frame rail.
   • Leave the fishwire temporarily attached for easier hitch installation.

4. Trim Fascia and Heat Shield:

   • Use a utility knife and tin snips to trim the fascia and heat shield.
   • Trim approximately 3 7/8" wide by 1" high from the bottom of the fascia (see Figure 2).
   • Reinstall the trimmed heat shield.

5. Install Hitch:

   • Raise the hitch into position.
   • Thread the fishwire through the appropriate slot to prevent the bolt and block from being pushed into the frame.
   • Install the fasteners as shown.
   • Torque the fasteners as follows:
     • 1/2” fastener: 75 lb-ft (102 N·m)
     • M14 fastener: 100 lb-ft (136 N·m)
     • M12 fasteners: 68 lb-ft (92 N·m)

6. Raise Exhaust:

   • Lift the exhaust back into position and reattach the 3 rubber isolators.

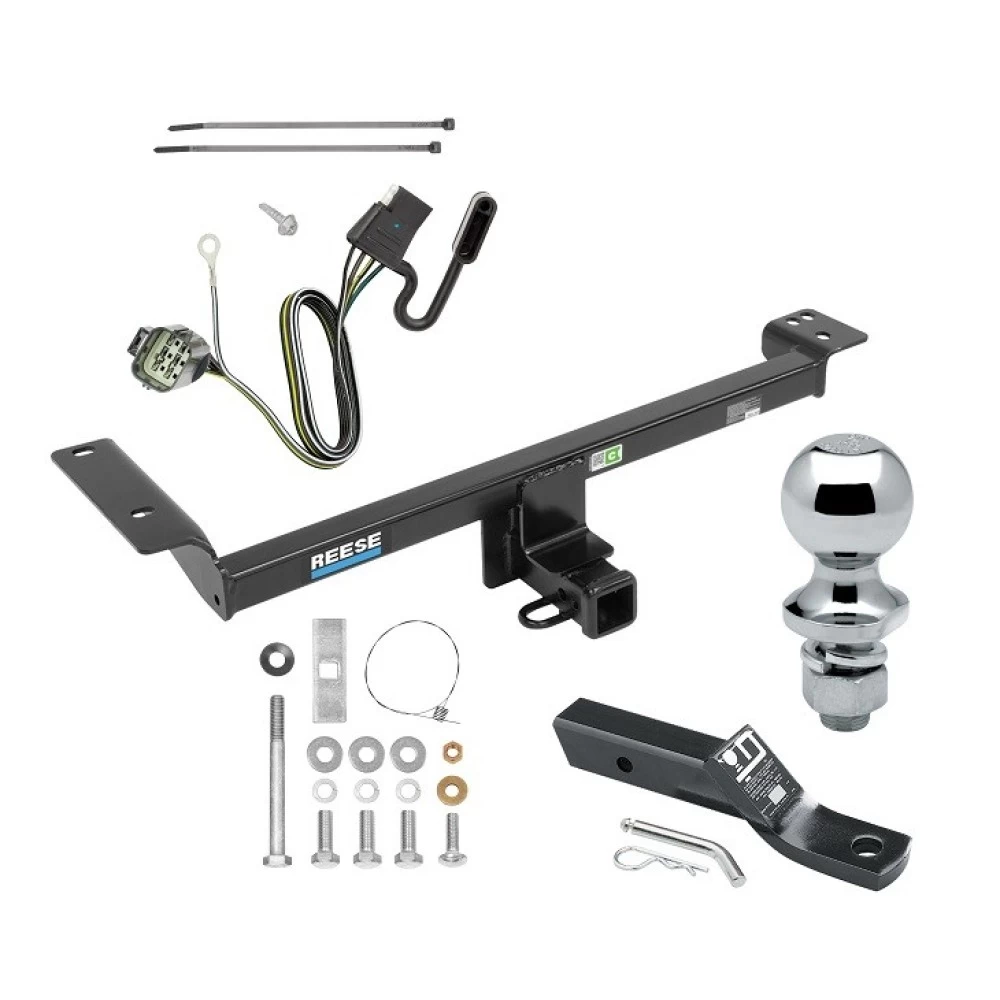

Hardware List:

• (3) M12 x 1.75 x 40 CL8.8 Bolts
• (3) 12mm Flat Washers
• (3) 1/2” Lock Washers
• (1) M14 x 2.00 x 100 CL8.8 Bolt
• (1) 5/8” Conical Washer
• (1) 1/4” x 1” x 3” Block
• (1) 1/2”-13 x 1.75” GR5 Carriage Bolt
• (1) 1/2” Conical Washer
• (1) 1/2”-13 GR5 Hex Nut
• (1) 1/2”-13 Fishwire

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 4,500 lbs (2,041 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Not applicable.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for T-One® T-Connector for Range Rover Evoque

Part Numbers:

• 118624

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle’s Tow Plug:

   • The tow plug is located under the vehicle on the passenger side near the muffler.
   • Reach up into the opening on the right side of the muffler to locate the vehicle’s grey tow plug.
   • Disconnect the mating protective cover and discard it.
   • Connect the tow plug harness into the mating harness. Ensure that the mating surfaces of the connectors match and are clean and free of dirt.

   Warning: All connector surfaces must be clean and free of dirt. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.

2. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces.

3. Mount the 4-Flat Connector:

   • Secure the 4-flat end in an accessible location using a bracket or electrical box (not included).

Specifications:

• Max. stop/turn light: 7.5 amps
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the product’s stated specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional information.
• Store these instructions for future reference.
