Reese Trailer Tow Hitch For 05-15 Toyota Tacoma Except X-Runner Complete Package w/ Wiring and 1-7/8" Ball












Reese Trailer Tow Hitch For 05-15 Toyota Tacoma Except X-Runner Complete Package w/ Wiring and 1-7/8" Ball

$262.96
- Stock: In Stock
- Brand: Reese
- Model: 44746 118496 23 63816
Verify Product Fitment
Sorry, this product does not fit your selected vehicle:
View products that fit your vehicle
View products that fit your vehicle
Fits 's with the following styles:

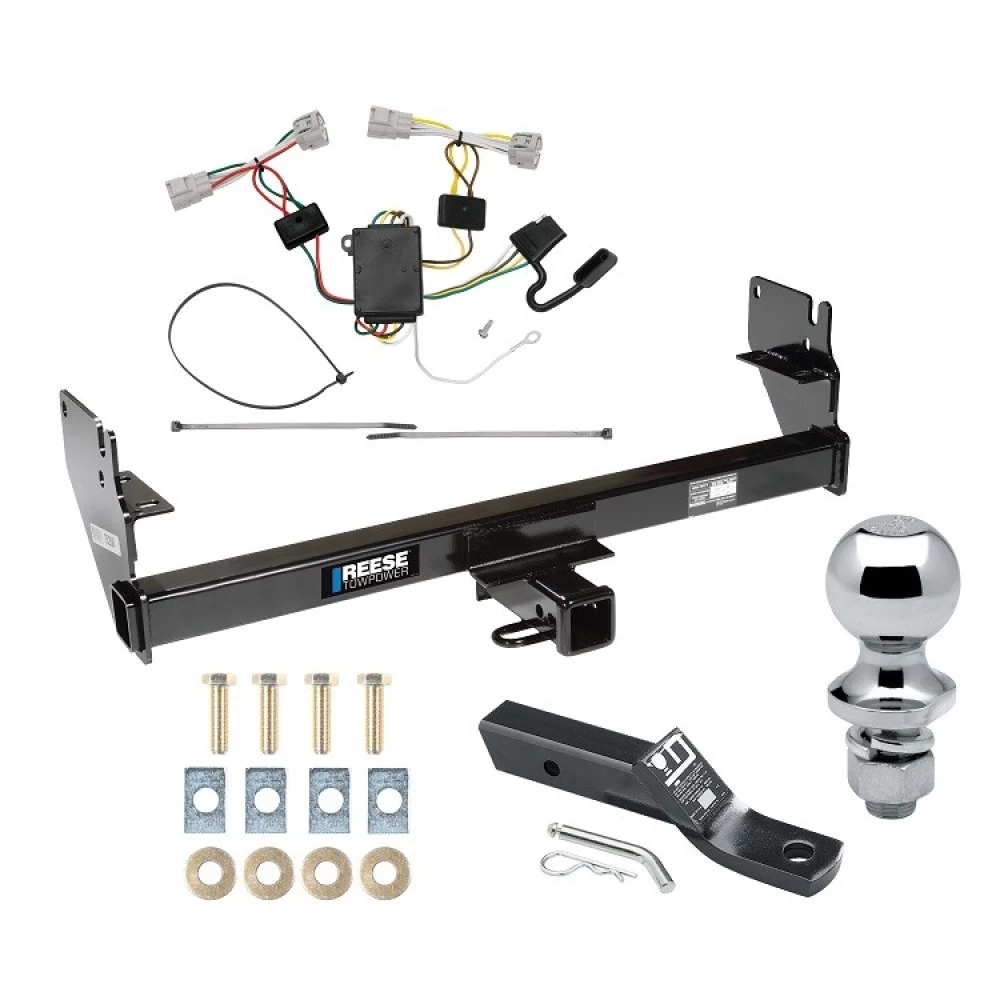

Includes Everything Pictured:

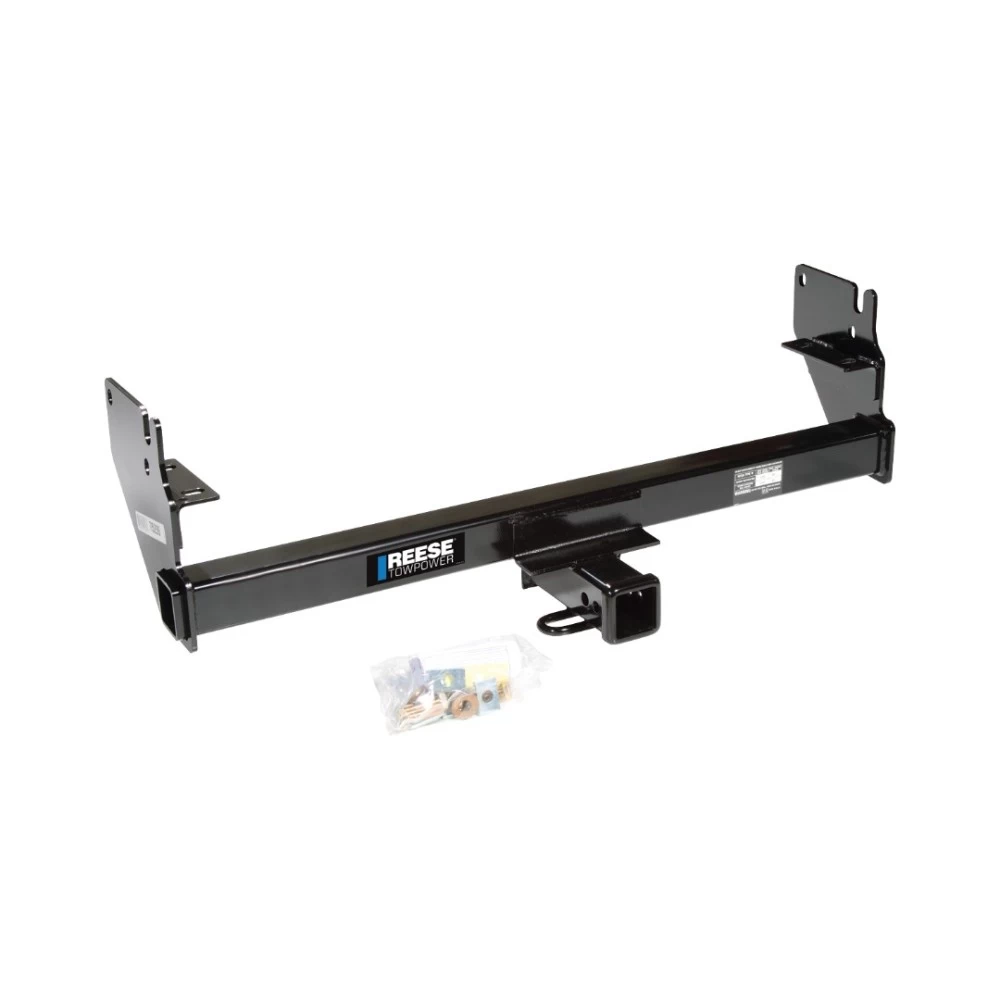

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2015 Toyota, Tacoma, Except X-Runner
Trailer Hitch Specs:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2015 Toyota, Tacoma, Except X-Runner
Trailer Hitch Specs:
Part Number | 44746 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 5,000 lbs |
Max GTW w/ weight distribution | 5,500 lbs |
Max Tongue Weight | 500/550 lbs |
Warranty | Lifetime |
Wiring Kit Specs:
Part Number | 118496 |
Brand | Tekonsha |
Warranty | 1 Year |
Ball Mount Specs:
Fits | 2" x 2" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63816 |
Brand | Draw-Tite |
Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 5,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 550 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Ask a Question about Reese Trailer Tow Hitch For 05-15 Toyota Tacoma Except X-Runner Complete Package w/ Wiring and 1-7/8" Ball
Be the first to ask a question.
Compatibility Chart:
Year Range | Make | Model | Style |
---|
