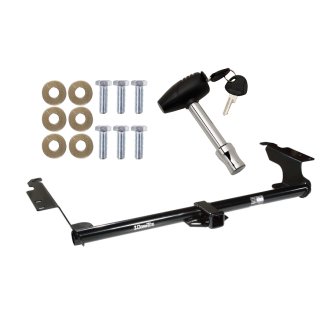

Trailer Tow Hitch For 99‑17 Honda Odyssey w/ Security Lock Pin Key
Model: 75270 580407Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2017 Honda, Odyssey, All Styles
Trailer Hitch Specs:
| Part Number | 75270 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
$209 73 $330.11 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$330.11 $209 73
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75270 580407
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Description
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2017 Honda, Odyssey, All Styles
Trailer Hitch Specs:
| Part Number | 75270 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Get Expert Help
Trailer Tow Hitch For 99-17 Honda Odyssey w/ Security Lock Pin Key Install Notes
Installation Instructions for Honda Odyssey
(1999-2004 and 2005 & Later Models)
Part Numbers:
- 75270
- 44174
- CQT75270
Applications:
- Honda Odyssey (1999-2004 and 2005 & Later Models)
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- SUV3
Step-by-Step Instructions:
For 1999-2004 Models:
-
Remove Appearance Panel:
- If present, remove the plastic appearance panel covering the driver’s side frame rail.
- Return the appearance panel and fasteners to the vehicle owner.
-
Lower Exhaust:
- Lower the vehicle exhaust to allow for hitch installation.
-
Install Hitch:
- Raise the hitch into position.
- Install the six (6) M12 fasteners and blocks using the forward slots on the hitch side brackets.
-
Reinstall Exhaust:
- Reinstall the vehicle exhaust to its original position.
For 2005 & Later Models:
-
Lower Exhaust:
- Lower the vehicle exhaust to allow for hitch installation.
-
Install Hitch:
- Raise the hitch into position.
- Install the six (6) M12 fasteners and blocks as shown in the diagram.
-
Reinstall Exhaust:
- Reinstall the vehicle exhaust to its original position.
Hardware List:
- (6) M12 x 1.25 x 35mm CL8.8 Bolts
- (6) 1/4” x 1-1/2” x 3” Blocks
- (6) 1/2” Conical Washers
Torque Specifications:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
