Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball

Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
Trailer Tow Hitch For 07-13 Chevy Silverado GMC Sierra 1500 Complete Package w/ Wiring and 1-7/8" Ball
$274.35
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75362 118384 23 63816

Applies to this product only

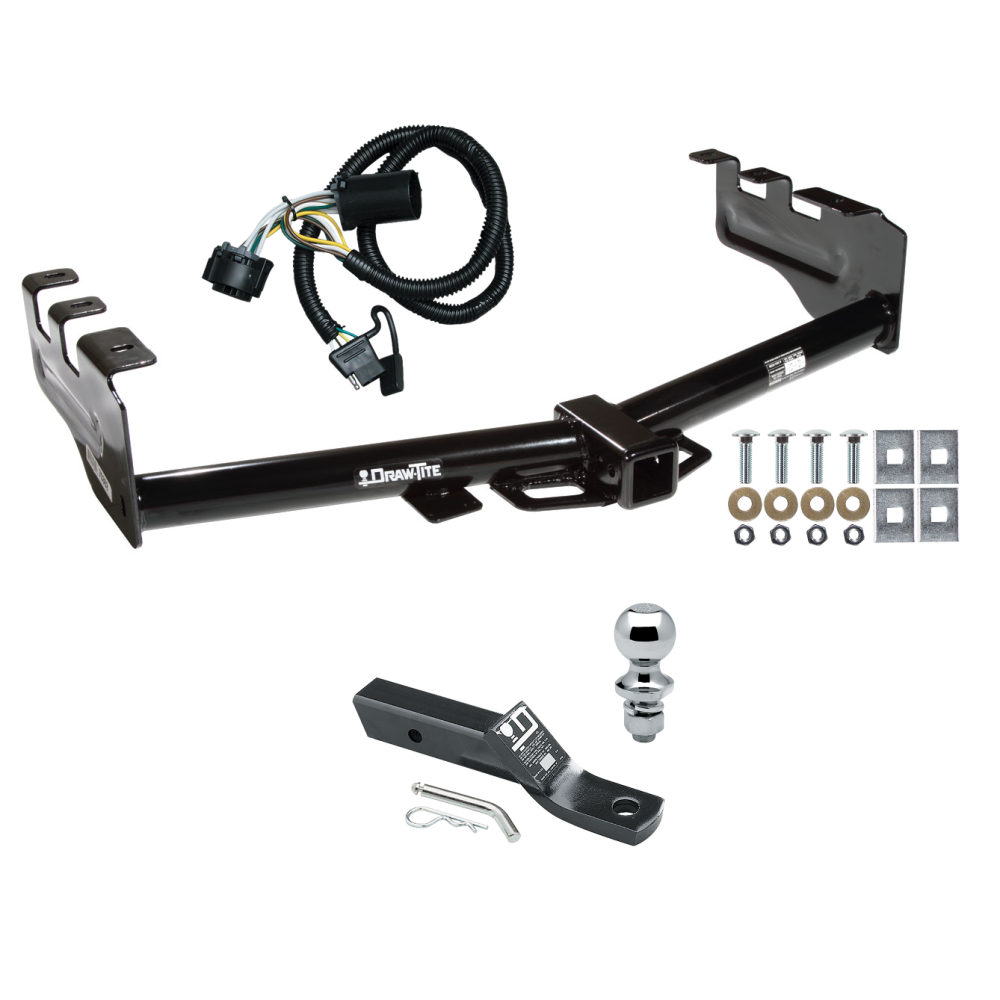

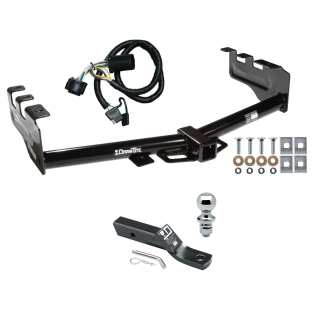

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2007 - 2013 GMC, Sierra 1500, All Styles

Trailer Hitch Specs:

Part Number 75362
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution 8,000 lbs
Max Tongue Weight 900/900lbs
Warranty Lifetime
Installation Instructions

Wiring Kit Specs:


Part Number 118384
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black

Fits 2" square receiver tube opening
Includes pin and clip
Black powder coat finish over A-Coat

Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome

Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
When installing the ball, torgue to 160 ft. lbs
Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 07 08 09 10 11 12 13 2007 2008 2009 2010 2011 2012 2013
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 8,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 900 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
