- Stock: In Stock
- Brand: Draw-Tite
- Model: 75500 23 63845 63816

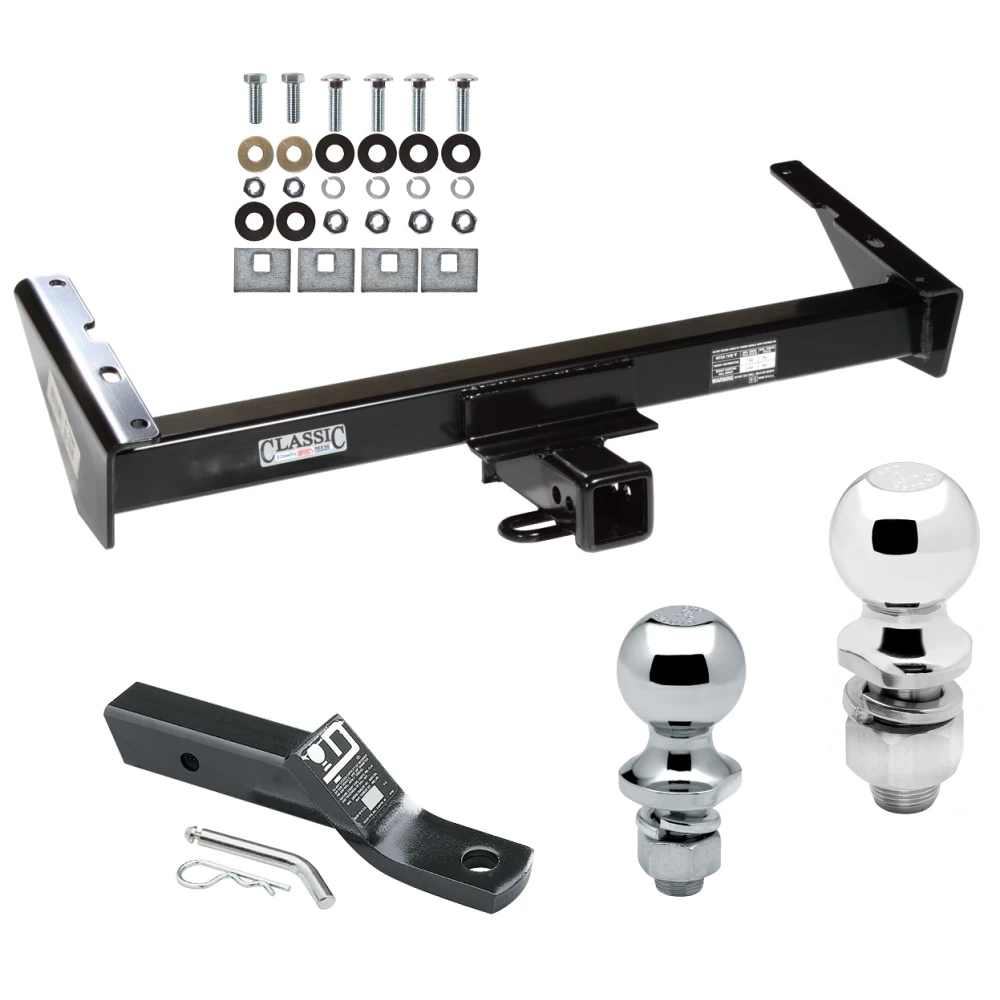

Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1973 - 1986 Chevrolet, Suburban C10, All Styles
1973 - 1986 Chevrolet, Suburban C20, All Styles
1973 - 1986 Chevrolet, Suburban K10, All Styles
1973 - 1986 Chevrolet, Suburban K20, All Styles
1973 - 1978 GMC, Suburban C15, All Styles
1973 - 1978 GMC, Suburban K15, All Styles
1973 - 1978 GMC, Suburban K25, All Styles
1975 - 1978 GMC, Suburban C25, All Styles
1979 - 1986 GMC, Suburban C1500, All Styles
1979 - 1986 GMC, Suburban C2500, All Styles
1979 - 1986 GMC, Suburban K1500, All Styles
1979 - 1986 GMC, Suburban K2500, All Styles
1987 - 1988 Chevrolet, Suburban R10, All Styles
1987 - 1988 Chevrolet, Suburban R20, All Styles
1987 - 1988 Chevrolet, Suburban V10, All Styles
1987 - 1988 Chevrolet, Suburban V20, All Styles
1987 - 1991 GMC, Suburban R1500, All Styles
1987 - 1991 GMC, Suburban R2500, All Styles
1987 - 1991 GMC, Suburban V1500, All Styles
1987 - 1991 GMC, Suburban V2500, All Styles
1989 - 1991 Chevrolet, Suburban R1500, All Styles
1989 - 1991 Chevrolet, Suburban R2500, All Styles
1989 - 1991 Chevrolet, Suburban V1500, All Styles
1989 - 1991 Chevrolet, Suburban V2500, All Styles
Trailer Hitch Specs:
| Part Number | 75500 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991
