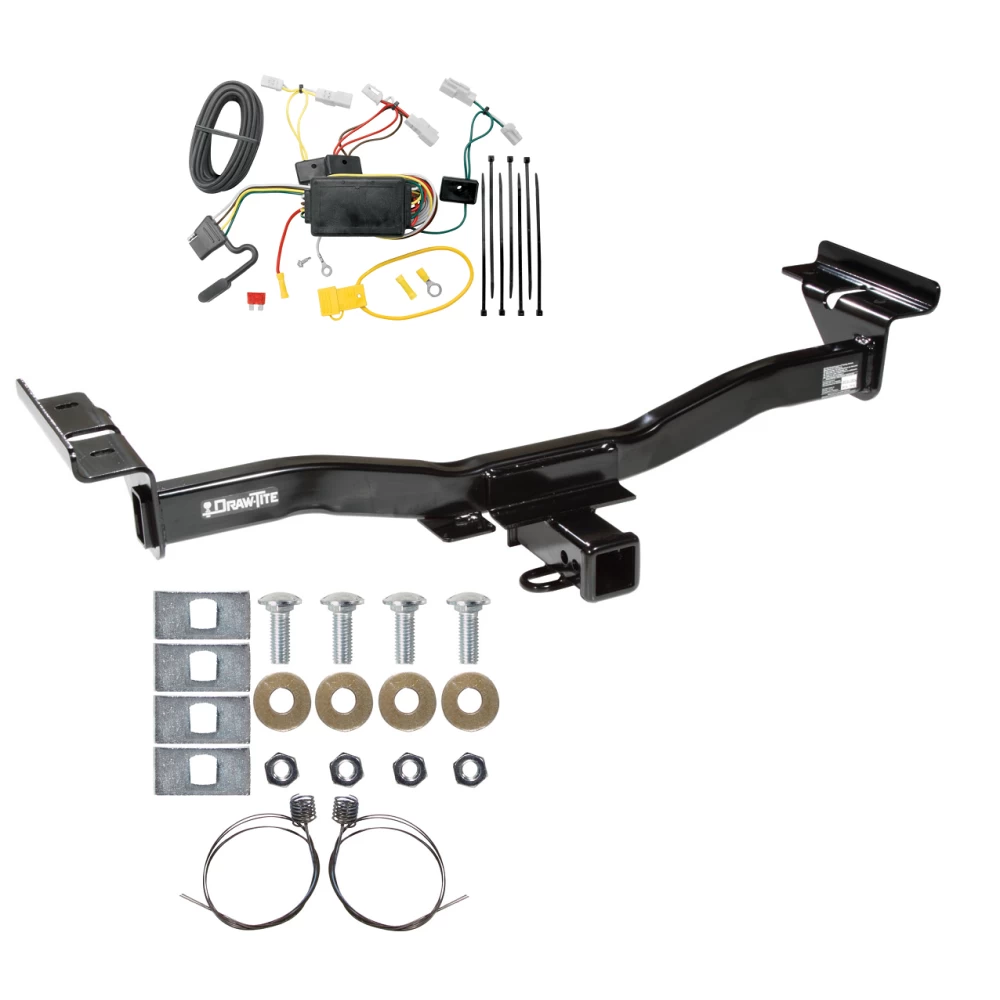

Trailer Tow Hitch For 07-12 Mazda CX-7 w/ Wiring Harness Kit Install Notes
Installation Instructions for Mazda CX-7
Part Numbers:
- 87421
- 75512
- 44554
Tools Required:
- Wrenches: 11/16"
- Pull Wire (provided)
- Metal File
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Lower the Exhaust:
- Detach both rear rubber muffler hangers to lower the exhaust.
-
Enlarge Frame Rail Holes:
- Enlarge either hole on the bottom of both frame rails with a metal file. Ensure the opening is large enough to fit the spacer.
-
Install Fasteners Using Pull Wire:
- Feed the pull wire through the newly enlarged hole.
- Attach the spacer and bolt, then feed them one at a time into the frame rail. Leave the pull wire attached.
- Repeat on both frame rails.
-
Install Additional Fasteners:
- Feed the second spacer and bolt through the enlarged hole and back out. Leave the pull wire attached.
- Repeat on both frame rails.
-
Position the Hitch:
- Feed the pull wires through the slot on the hitch brackets.
- Carefully raise the hitch into position without pushing the fasteners back into the frame rails.
-
Attach Remaining Fasteners:
- Hand-tighten all fasteners as shown in Figure 1.
-
Align Hitch:
- Ensure the hitch is centered on the vehicle. The bracket may not fit snugly against the side of the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
-
Reattach Exhaust:
- Reattach the rubber muffler hangers.
Hardware List:
- (4) 7/16"-14 x 1.25" GR5 Carriage Bolts
- (4) 7/16"-14 Hex Nuts
- (4) 7/16" Conical Washers
- (4) Spacers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118405
Wiring Access Location:
- Rear taillight assemblies and under the vehicle near the bumper.
Tools Required:
- Drill with 3/32” drill bit.
- Philips head screwdriver.
- 10mm socket and ratchet or wrench.
- Wire crimpers and cutters.
- Trim panel remover.
Step-by-Step Instructions:
-
Access Vehicle Wiring:
- Open the rear tailgate and remove the threshold panel.
- For Mazda 6 Sedan and Coupe, remove the two 10mm nuts securing the driver’s side taillight housing. Pull the housing directly rearward to remove and set aside.
-
Prepare Wiring for Mazda 6 and Toyota Camry:
- Locate the vehicle's wiring inside the trunk area by removing the plastic threshold cover and trunk liner.
- Route the black 12-gauge wire through the opening in the taillight socket and behind the bumper to the engine compartment.
-
Driver’s Side Connection:
- Attach the T-Connector containing the yellow and red wires between the vehicle wiring connectors behind the driver’s side taillight. Ensure the connectors are fully inserted and secure the locking tabs.
-
Passenger’s Side Connection:
- Route the T-Connector with the green wire to the passenger side beneath the vehicle threshold cover.
- Repeat step 3 using the T-Connector ends with the green wire.
-
Ground Connection:
- Locate a suitable grounding point near the connector:
- Option 1: Clean the area, drill a 3/32” hole, and secure the white wire with the provided eyelet and screw.
- Option 2: Use an existing ground stud. Loosen the bolt, attach the eyelet, and retighten.
- Locate a suitable grounding point near the connector:
-
Routing the Power Wire:
- Route the black 12-gauge wire from the taillight area to the engine compartment, avoiding hot pipes, heat shields, and the fuel tank.
-
Connect to the Battery:
- Disconnect the negative battery cable.
- Install the yellow fuse holder on the positive battery cable using the provided ring terminal and yellow butt connector.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Reconnect Battery and Test Installation:
- Reconnect the negative battery cable.
- Insert the 10-amp fuse into the fuse holder.
- Test the installation with a test light or trailer.
-
Final Steps:
- Secure the T-Connector black box using the provided double-sided tape.
- Use cable ties to secure the remaining harness to prevent damage or rattling.
- Reinstall all panels, liners, and covers removed during the process.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (4.2 amps).
Hardware List:
- T-Connector adapter.
- Black converter box.
- Yellow fuse holder with 10-amp fuse.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Ensure all connections are complete to avoid circuit overload.
- Test thoroughly after installation to confirm functionality.
Manufacturer Notes:
- Follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
