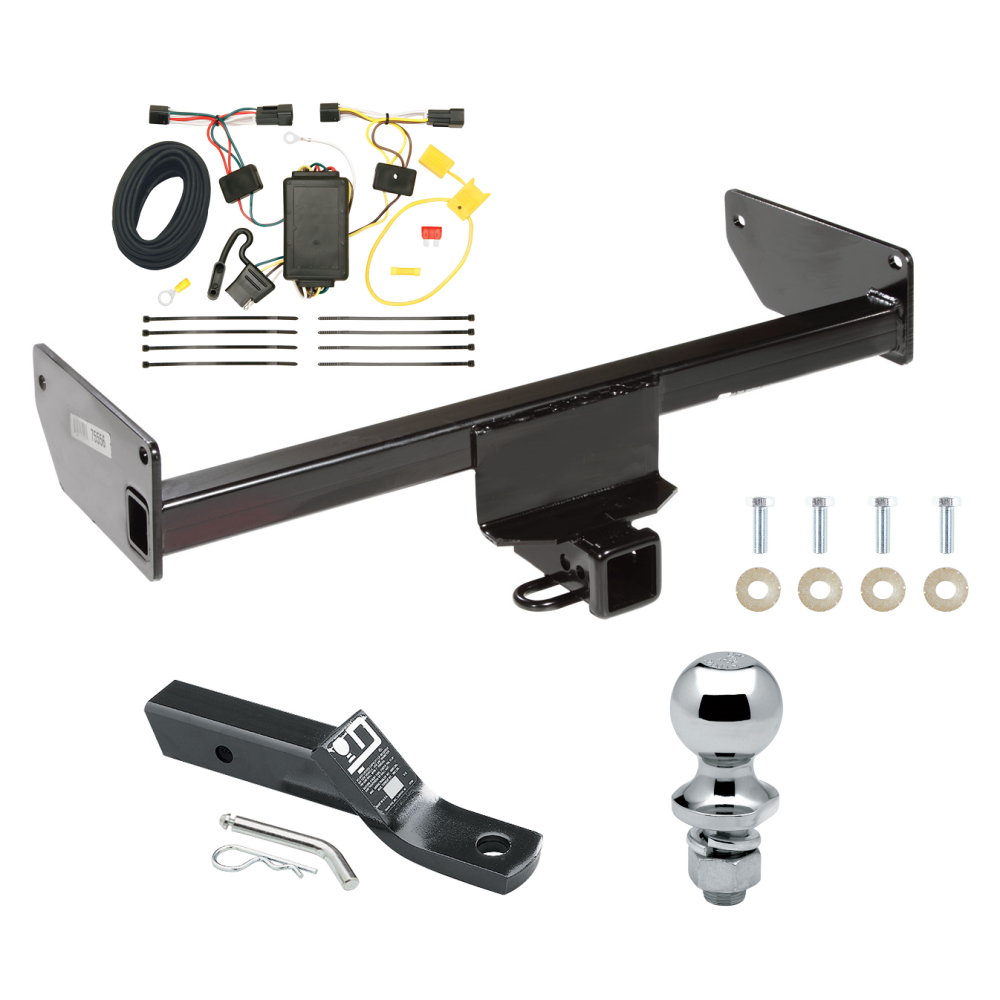

Trailer Tow Hitch For 2012 Chevy Captiva Sport 08-09 Saturn Vue Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Saturn Vue
Part Numbers:
- 87445
- 75556
- 44580
Tools Required:
- Wrenches: 18mm
- Drill Bits: None
Wiring Access Location:
- SUV3 & SUV4
Step-by-Step Instructions:
-
Lower Exhaust (if needed):
- To allow easier access for installing frame bolts, temporarily lower the exhaust system by removing the two rearward rubber isolator hangers on each side.
- Spray lubricant on the isolators to aid in removal.
-
Install the Hitch:
- Raise the hitch into position.
- Install the supplied M12 bolts and conical washers into the existing weldnuts in the vehicle frame.
-
Reinstall Exhaust:
- If the exhaust was lowered, reinstall the exhaust hangers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 92 lb-ft (125 N·m).
Hardware List:
- (4) 1/2” Conical Washers
- (4) M12-1.75 x 35mm CL10.9 Hex Head Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

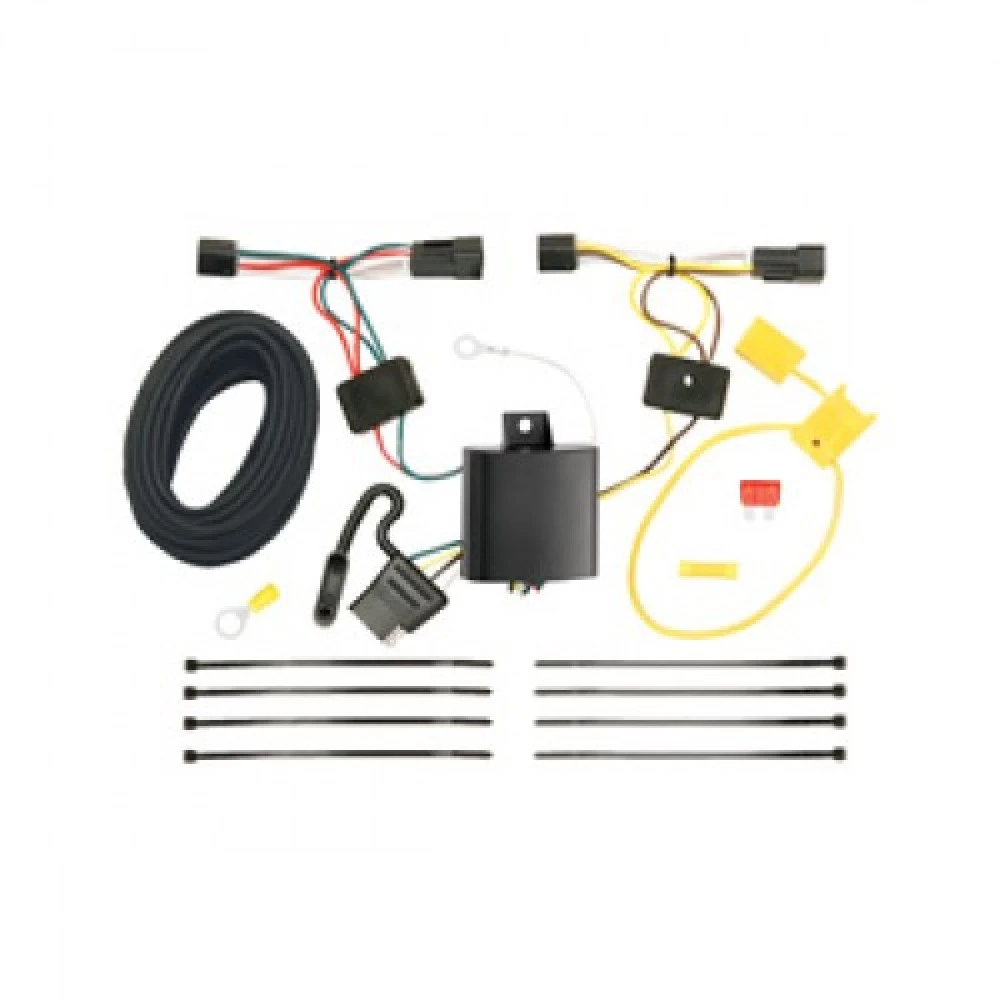

Installation Instructions for T-Connector Adapter
Part Numbers:
- 118443
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Torx-45
- Torx-30
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear liftgate.
- Remove the threshold plate, trunk floor panels, and spare tire tray from the vehicle.
- Remove the cargo loops, Phillips head screws, sliders, and screws from the side rails.
- Pull the driver’s side trim panel away from the vehicle.
-
Remove the Styrofoam Tray:
- On the driver’s side, remove the fasteners holding the black Styrofoam tray and carefully pry it out.
-
Access the Side Pockets:
- On both the driver’s and passenger’s sides, locate and pry out the plastic side pockets inside the trim panels.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both sides, locate the taillight wiring harness inside the panel where the plastic trays were removed.
- Separate the connectors carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Passenger-Side T-Connector:
- Insert the T-Connector end with the green wire between the vehicle’s wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route and Install the Driver-Side T-Connector:
- Route the T-Connector end with the yellow wire across the threshold and into the driver’s side trim panel.
- Repeat Step 5 for the driver’s side using the T-Connector with the yellow wire.
-
Ground the White Wire:
- On the passenger side, locate an existing ground stud inside the trim panel.
- Loosen the nut, place the white wire’s ring terminal on the stud, and retighten the nut. Ensure all existing ground connections remain attached.
-
Route the Power Wire:
- Route the black power wire into the engine compartment and up to the battery.
- Warning: Avoid routing near hot pipes, heat shields, or areas that could pinch or break the wire.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the fuse holder’s ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
-
Mount the Black Box:
- Mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.
-
Reassemble the Vehicle:
- Reposition the passenger side panels, trays, and trunk floor panels.
- Reattach the threshold and any other items removed during installation.
-
Test the Installation:
- Test and verify the installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (4.2 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Always follow vehicle warnings and installation instructions.
Manufacturer Notes:
- Store the 4-flat connector in the rear cargo area when not in use.
- Refer to the vehicle owner’s manual for additional details.
