- Stock: In Stock
- Brand: Draw-Tite
- Model: 75647 118653 23 63845 580407 7010

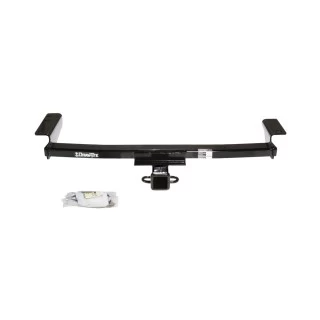

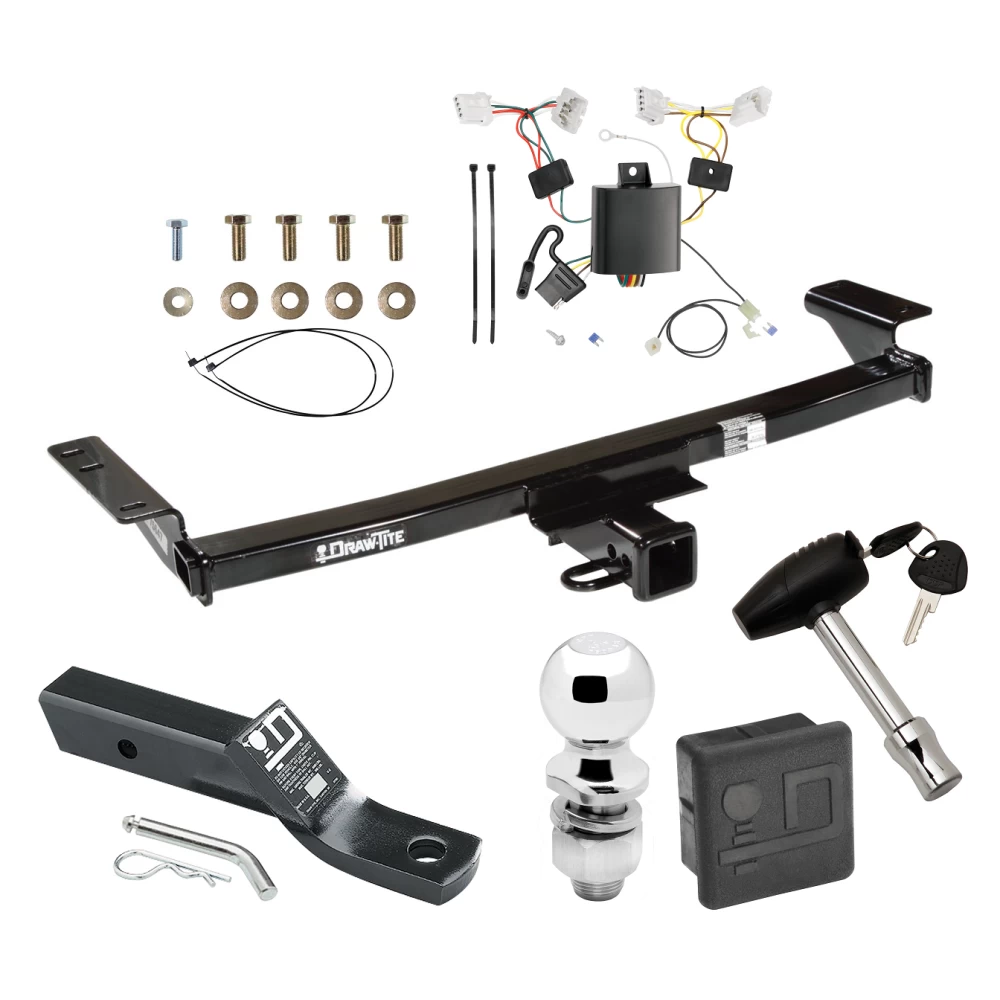

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover

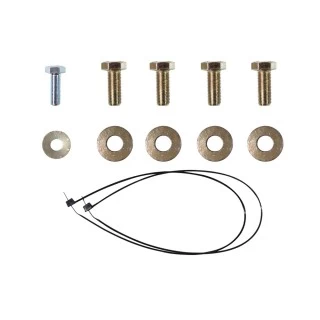

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 - 2014 Nissan, Murano, Except w/Aero Kit & CrossCabriolet
Trailer Hitch Specs:
| Part Number | 75647 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118653 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. 8-1/2" Length, 3/4" Rise, 2" Drop
Fits 2" square receiver tube opening
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 2" 7,500 lbs. GTW Chrome
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength
When installing the ball, torgue to 250 ft. lbs
Trailer Hitch Security Lock Pin w/ Sleeve
Includes Dust Cap
Fits 2" and 1-7/8" Tow Receivers
Prevents theft
Use in place of standard pin and clip
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
Rubber Trailer Hitch Tow Plug Cover Fits 2" Receiver
Attaches to any 2" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into you 2" x 2" hitch opening
Prevents any buildup of dirt and debris
Raised "D" Logo to distinguish the Draw-Tite brand
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 09 10 11 12 13 14 2009 2010 2011 2012 2013 2014
