Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball

Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
Trailer Tow Hitch For 09-14 Ford F-150 Receiver w/ 1-7/8" and 2" Ball
$198.06
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75691 23 63845 63816

Applies to this product only

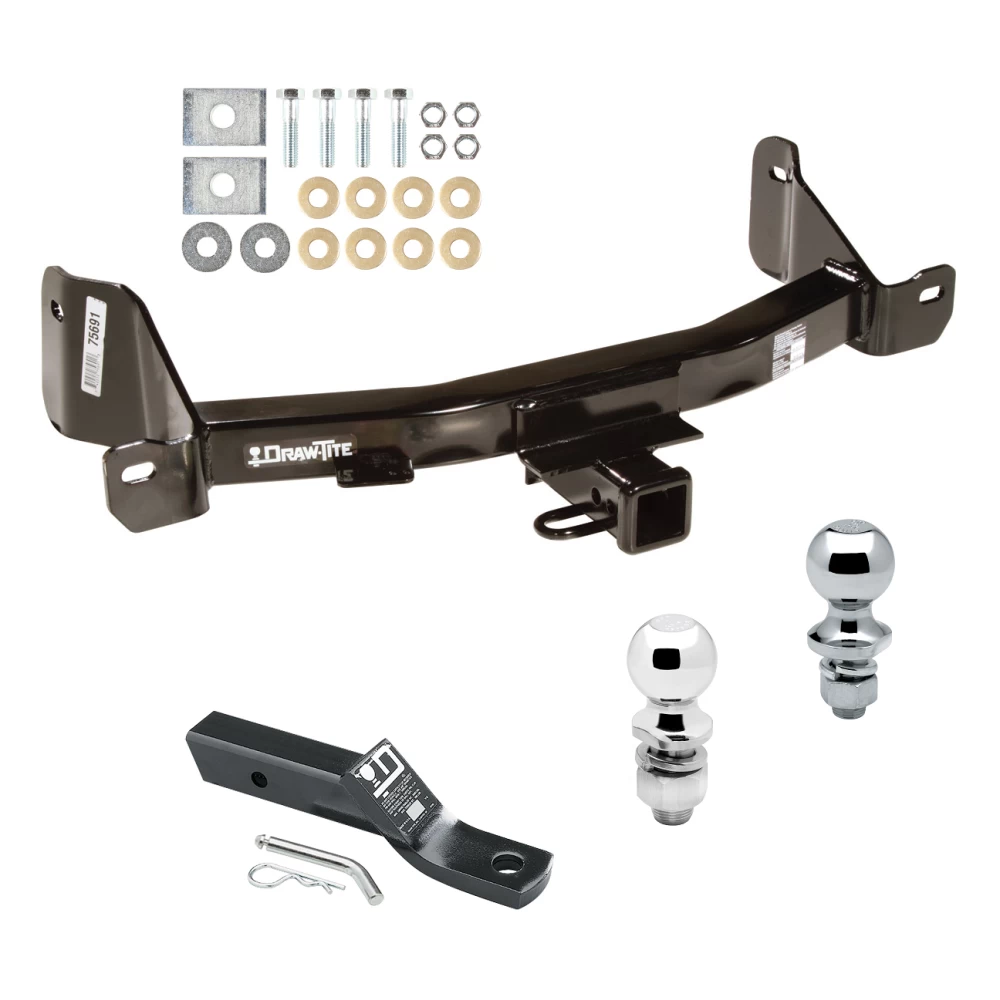

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles
2009 - 2014 Ford, F-150, All Styles, w/o Factory Hitch
2010 - 2014 Ford, F-150 Raptor, All Styles, w/o Factory Hitch

Trailer Hitch Specs:

Part Number 75691
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution 12,000 lbs
Max Tongue Weight 600/1200 lbs
Warranty Lifetime
Installation Instructions

Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black

Fits 2" square receiver tube opening
Includes pin and clip
Black powder coat finish over A-Coat

Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5
Cold forged for superior strength

Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome

When installing the ball, torgue to 160 ft. lbs

Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome

    When installing the ball, torgue to 250 ft. lbs

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 09 10 11 12 13 14 2009 2010 2011 2012 2013 2014
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 12,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
