Trailer Tow Hitch For 00‑06 Chevy GMC Tahoe Yukon XL Denali Suburban 1500 2500 Complete Package w/ Wiring and 2" Ball

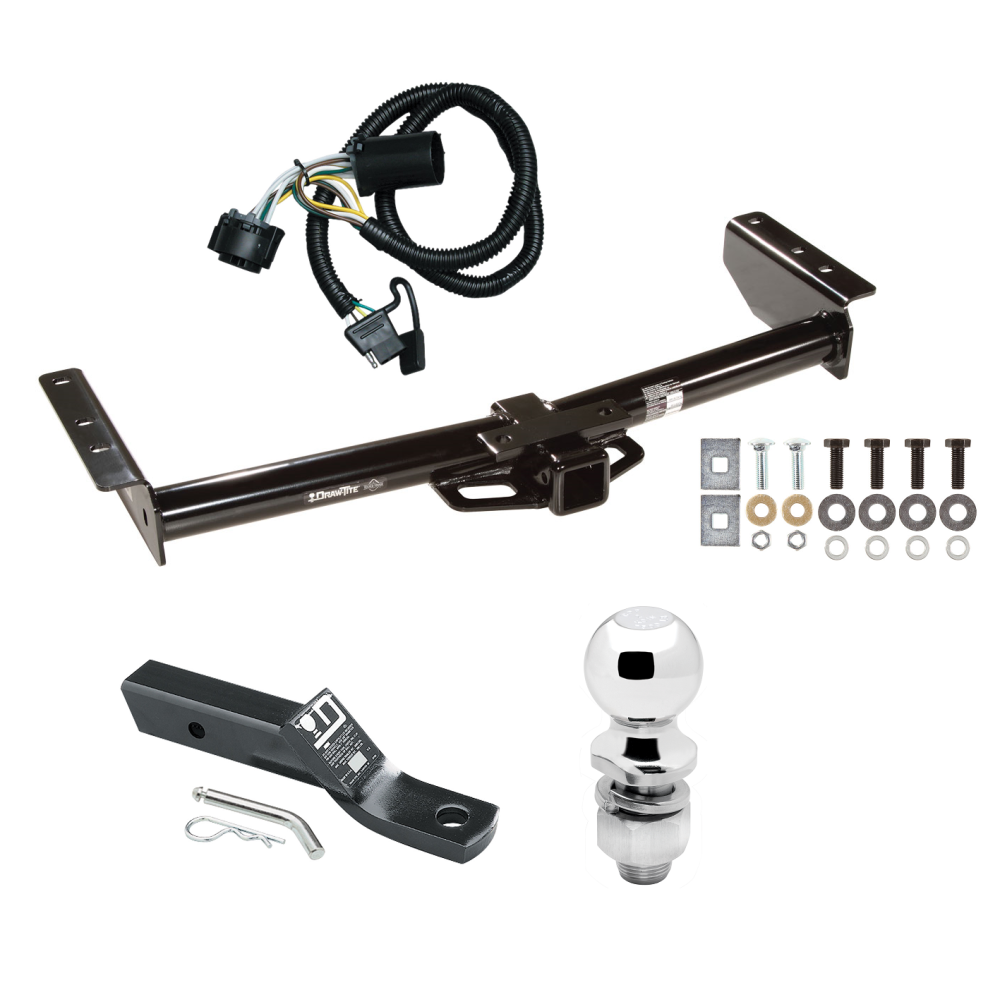

Model: 75725 118384 23 63845Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2006 Chevrolet, Suburban 1500, w/Amber Turn Signals
2000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 Chevrolet, Tahoe, w/Amber Turn Signals
2000 - 2006 GMC, Yukon, w/Amber Turn Signals
2001 - 2002 GMC, Yukon Denali, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 1500, All Styles
2001 - 2002 GMC, Yukon XL 1500 Denali, All Styles
2000 - 2006 GMC, Yukon XL 2500, All Styles
Trailer Hitch Specs:
| Part Number | 75725 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900 / 1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118384 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$296 57 $437.01 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$437.01 $296 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $74.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75725 118384 23 63845
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2006 Chevrolet, Suburban 1500, w/Amber Turn Signals
2000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 Chevrolet, Tahoe, w/Amber Turn Signals
2000 - 2006 GMC, Yukon, w/Amber Turn Signals
2001 - 2002 GMC, Yukon Denali, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 1500, All Styles
2001 - 2002 GMC, Yukon XL 1500 Denali, All Styles
2000 - 2006 GMC, Yukon XL 2500, All Styles
Trailer Hitch Specs:
| Part Number | 75725 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900 / 1000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118384 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 00-06 Chevy GMC Tahoe Yukon XL Denali Suburban 1500 2500 Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Chevrolet Suburban, Chevrolet Tahoe, GMC Yukon XL, GMC Yukon, Cadillac Escalade, and Chevrolet Avalanche
Part Numbers:
- 75725
- 87614
- 44668
Wiring Access Location:
- SUV6
Tools Required:
- Wrenches: 7/8", 22mm
- Drill Bits: None
Step-by-Step Instructions:
- Remove the existing M14 bumper bracket bolts from the bottom surface of the frame on both sides and return them to the vehicle owner.
- Raise the hitch into position and align it with the existing weldnuts inside the bumper.
- Install the provided fasteners as shown. Ensure all bolts are secured evenly on both sides.
Hardware List:
- Qty (2): Carriage Bolts 1/2-13 x 1.75 GR5
- Qty (2): Spacers
- Qty (2): Conical Washers
- Qty (2): Hex Nuts 1/2-13
- Qty (4): Hex Bolts M14 x 2.00 x 40mm CL10.9
- Qty (4): Lock Washers
- Qty (4): Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
Manufacturer Notes:
- All vehicles require the OEM bumper.
- Tighten all 1/2 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N*m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the tow vehicle’s trailer harness connector (A).
- This is located under the vehicle, behind the bumper, on the driver’s side.
-
Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector adapter end (B) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted with locking tabs in place.
-
Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way attached to the hitch on the driver’s side.
-
Separate the factory socket (A) and the 7-Way (C).
-
Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
