Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock

Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner 2" Receiver w/ J-Pin Anti-Rattle Lock
$283.13
  • Stock: Pre-Order
  • Brand: Draw-Tite
  • Model: 75751 63201

Applies to this product only

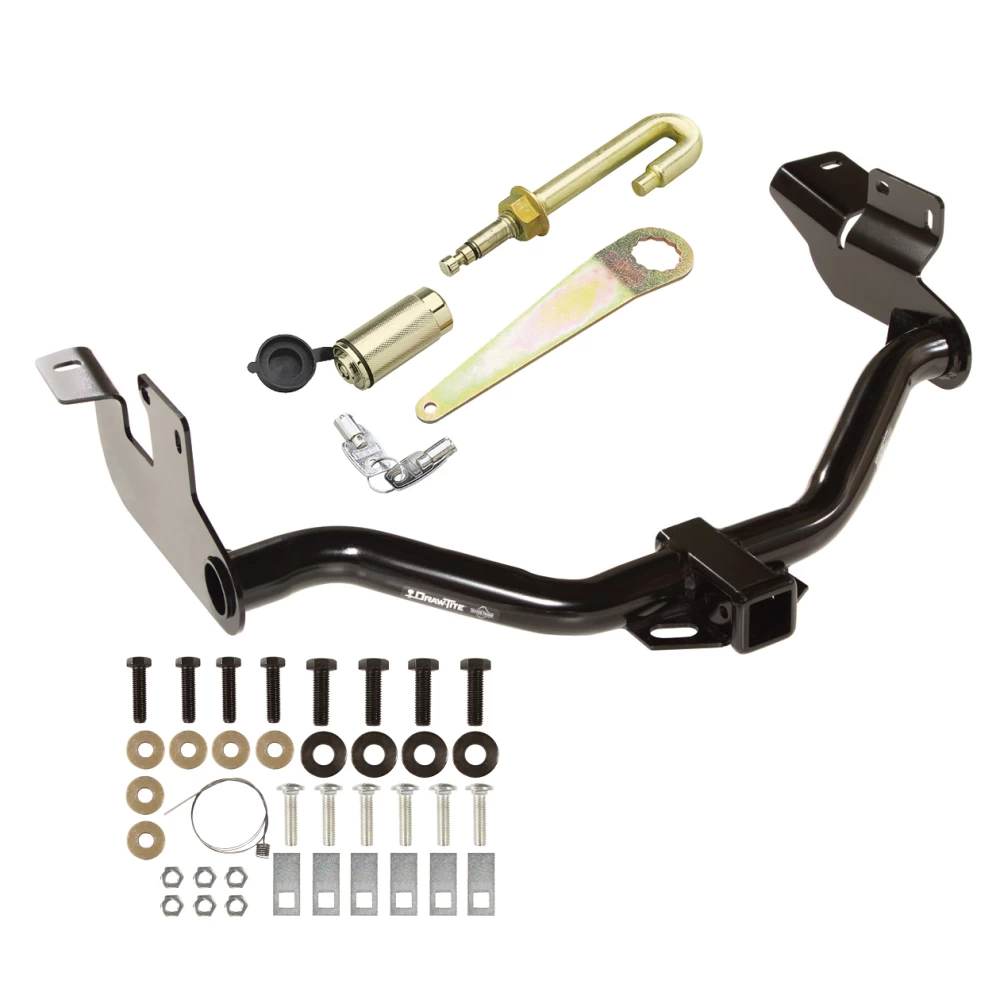

Includes Everything Pictured:

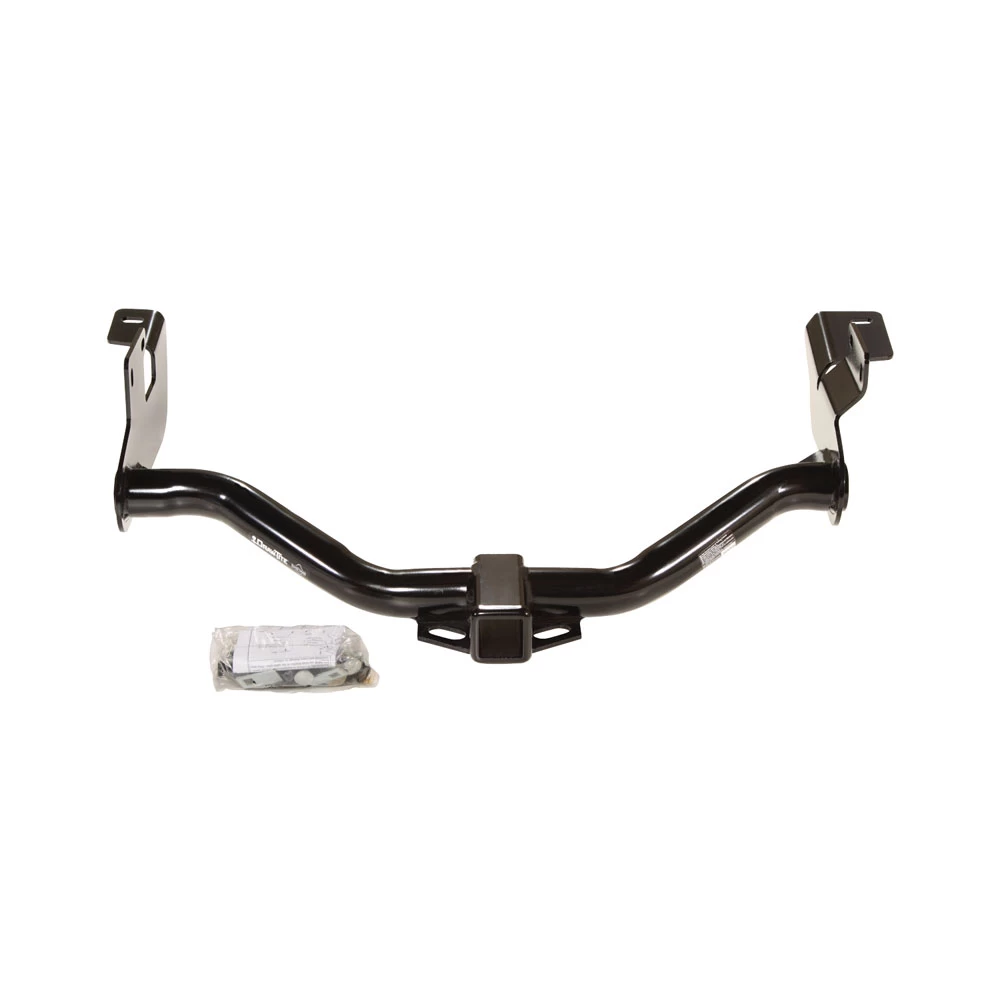

Custom Fit Trailer Hitch
Security J-Pin

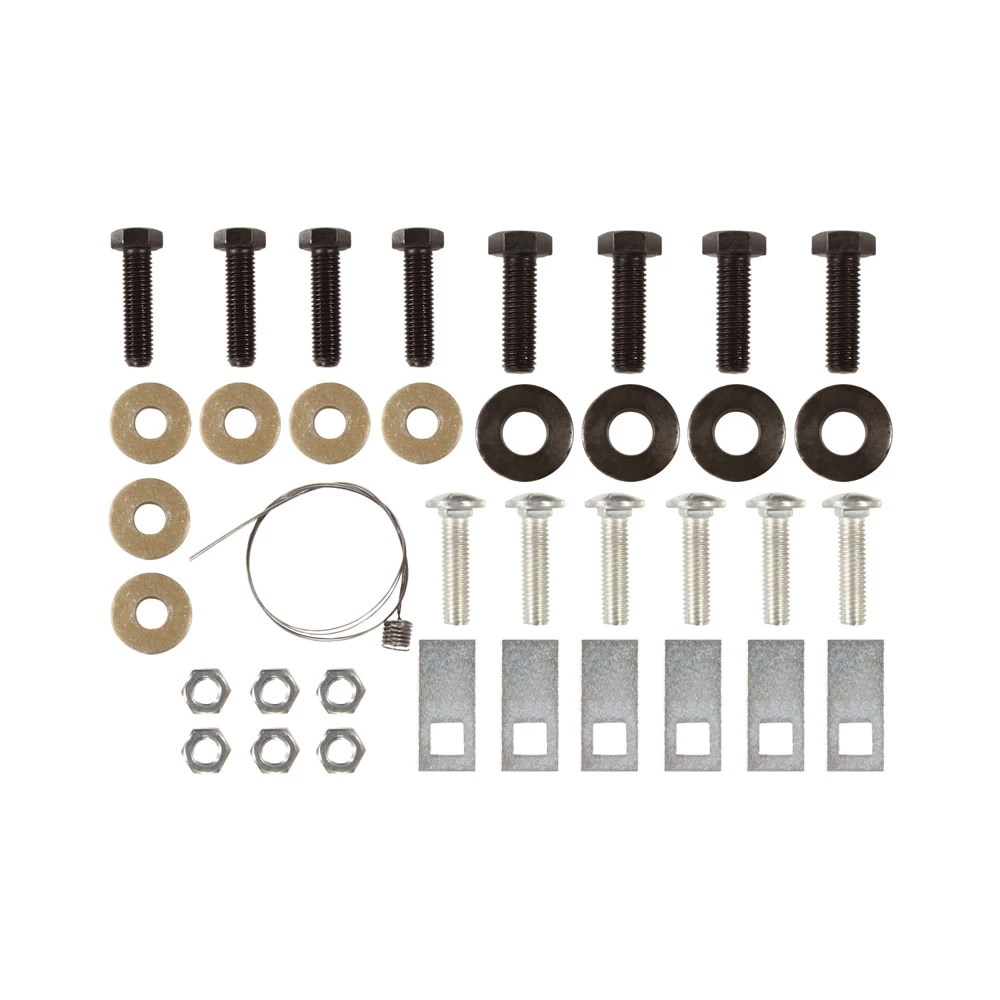

Installation Hardware
Installation Instructions


Fits The Following Vehicles

2005 - 2012    Ford, Escape, All Styles
2005 - 2011    Mazda, Tribute, All Styles
2005 - 2011    Mercury, Mariner, All Styles

Trailer Hitch Specs:

Part Number 75751
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 4,500 lbs
Max GTW w/ weight distribution 5,250 lbs
Max Tongue Weight 675/675 lbs
Warranty Lifetime
Installation Instructions

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft    STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head    STEP 3:
Secure ball mount or hitch-mounted accessory with locking head


Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 05 06 07 08 09 10 11 12 2005 2006 2007 2008 2009 2010 2011 2012

Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 4,500 lbs.
Gross Towing Weight w/ Weight Distribution Kit 5,250 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 675 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 675 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
