Trailer Tow Hitch For 2013 Isuzu D-Max Receiver w/ 1-7/8" and 2" Ball

Trailer Tow Hitch For 2013 Isuzu D‑Max Receiver w/ 1‑7/8" and 2" Ball

Model: 75792 23 63845 63816

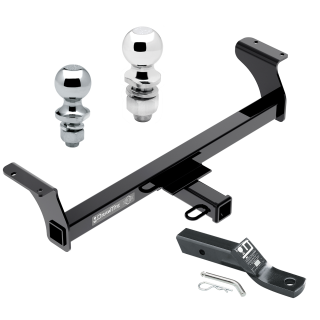

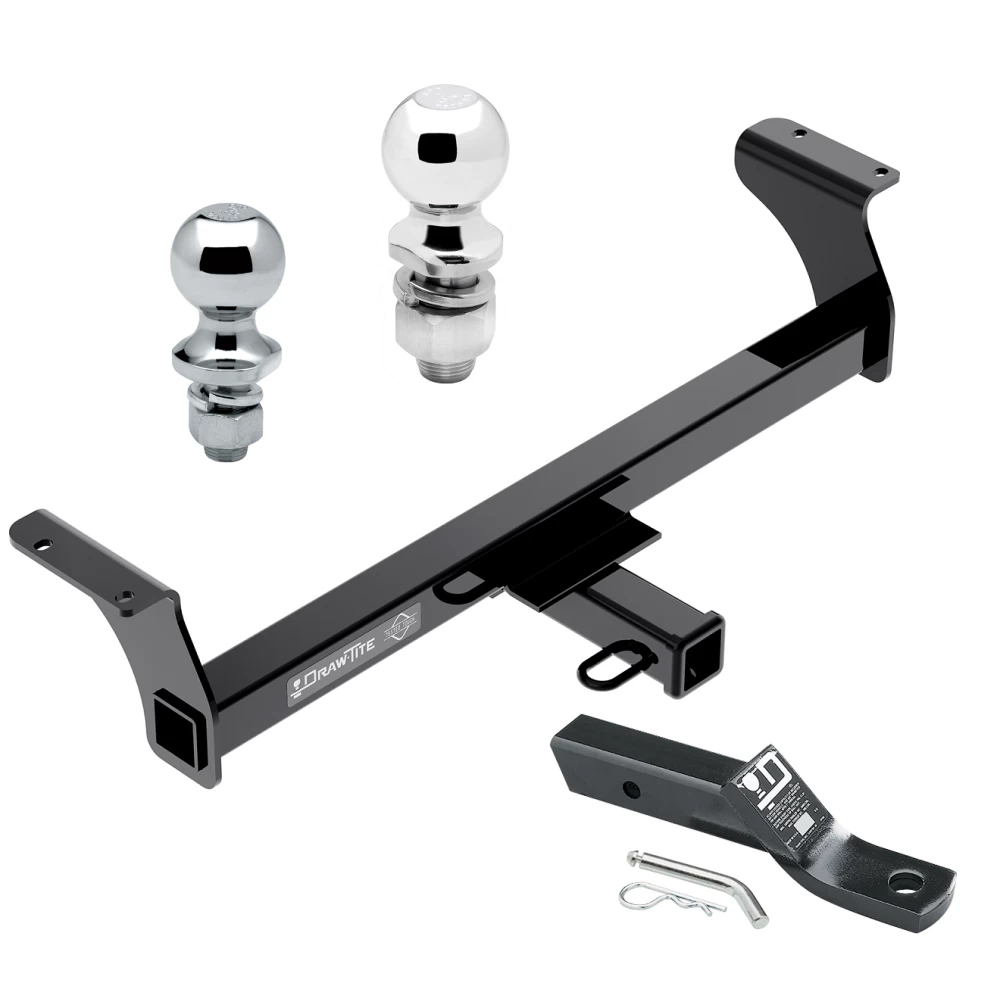

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles
2013 Isuzu, D-Max, All Styles

Trailer Hitch Specs:

Part Number	75792
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4.000 lbs
Max GTW w/ weight distribution	6,000 lbs
Max Tongue Weight	525 lbs
Warranty	Lifetime
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63816
Brand	Draw-Tite
Size	1-7/8" x 1" x 2-1/8"
Towing Capacity	2,000 lbs. GTW
Material	Chrome
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 13 2013

See Full Description

$322 ⁴¹ $501.93 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$501.93 $322 ⁴¹

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $80.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75792 23 63845 63816
Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball

Compatibility Chart

Year Range	Make	Model	Style

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	4,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	6,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	600 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	75792
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	4.000 lbs
Max GTW w/ weight distribution	6,000 lbs
Max Tongue Weight	525 lbs
Warranty	Lifetime
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63816
Brand	Draw-Tite
Size	1-7/8" x 1" x 2-1/8"
Towing Capacity	2,000 lbs. GTW
Material	Chrome
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 75792 , 23 , 63845 , 63816 , Draw-Tite , Trailer , Tow , Hitch , 2013 , Isuzu , D-Max , Receiver , 1-7/8" , and , 2" , Ball

Get Expert Help

Trailer Tow Hitch For 2013 Isuzu D-Max Receiver w/ 1-7/8" and 2" Ball Install Notes

Installation Instructions for Isuzu D-Max

Part Numbers:

75792

Wiring Access Location:

Tools Required:

Wrench: 7/8"

Step-by-Step Instructions:

Install Carriage Bolts and Blocks:
- Using the pull wire procedure, insert the carriage bolts and blocks into the frame rail.
- Leave the pull wires attached.
Position the Hitch:
- Place the hitch beneath the frame rail as shown in the instructions.
Secure the Bolts:
- Use the pull wires to guide the carriage bolts through the attachment holes in the hitch.
- Remove the pull wires.
Attach Washers and Nuts:
- Install flat washers, lock washers, and hex nuts onto the bolts as shown.
Tighten Fasteners:
- Torque all 1/2"-13 GR8 fasteners to 110 Lb.-Ft. (149 N*M).

Hardware List:

(4) Carriage Bolts: 1/2”-13 x 1-3/4” GR8
(4) Blocks: 1/4” x 1” x 3”
(4) Flat Washers: 1/2”
(4) Lock Washers: 1/2”
(4) Hex Nuts: 1/2”-13 GR8
(4) Pull Wires: 1/2”-13

Safety Notes:

Regularly check all fasteners to ensure they are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering the vehicle.
Replace any damaged hitch or ball.
Always wear eye protection while working under the vehicle.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type:
- Weight Distributing: 6,000 lb. (2,724 kg) Max Gross Trailer Weight, 600 lb. (272 kg) Max Tongue Weight
- Weight Carrying: 4,000 lb. (1,816 kg) Max Gross Trailer Weight, 600 lb. (272 kg) Max Tongue Weight
This product complies with SAE J684 and New York V.E.S.C. Regulation V-5.
