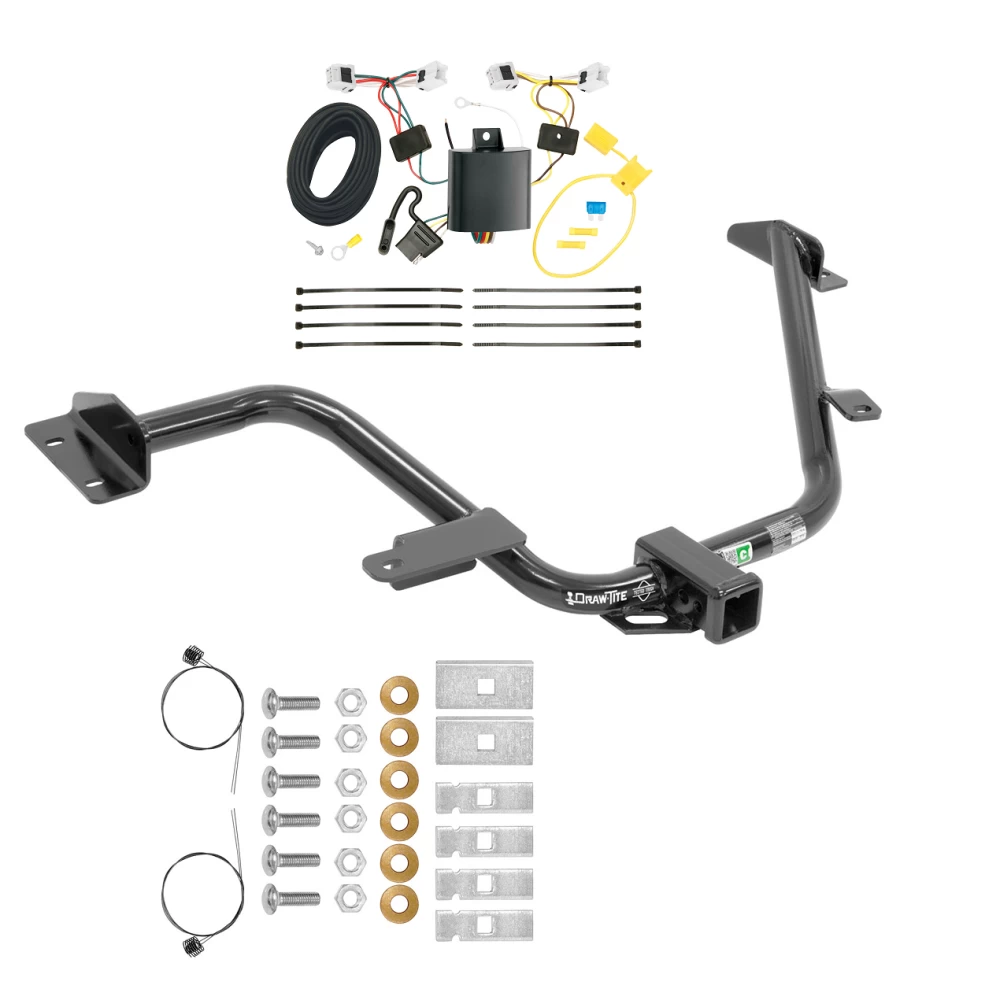

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 15-18 Chevy City Express 13-22 Nissan NV200 w/ Wiring Harness Kit Install Notes
Installation Instructions for Nissan NV200 and Chevrolet City Express
Part Numbers:
- 75898
- 87662
- 44711
- 78599 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Small Screwdriver
- Lubricant or Soapy Water
- Utility Knife or Shears
- Drill or Rotary Tool (optional)
- Wrenches: 11/16", 7/8"
Step-by-Step Instructions:
-
Lower and Remove Spare Tire:
- The tire release is located inside the rear cargo area in the middle of the floor.
-
Lower Exhaust System:
- Remove the rubber isolators from the exhaust hangers. Use lubricant or soapy water to ease removal.
-
Remove Fascia Tabs:
- Remove the plastic rivets that secure the fascia tabs to the vehicle using a flat screwdriver. Keep the rivets for reinstallation.
-
Insert Fasteners into Frame Rails:
- Option A: Feed fasteners into the frame rails through the access hole over the spring shackle into the forward hole. Repeat for the rearward holes.
- Option B: Enlarge the forward hole with a drill or rotary tool to fit the carriage bolt and spacer.
-
Insert Remaining Fasteners:
- Feed additional fasteners into the holes in the rear crossmember of the vehicle. Leave pull wires attached.
-
Position and Secure Hitch:
- Raise the hitch into position, feeding pull wires through the hitch slots. Use conical washers to hold the bolts in place and attach hex nuts. Repeat for all fasteners.
-
Reinstall Spare Tire:
- Confirm that the spare tire does not interfere with the hitch after reinstallation.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- 7/16-14 GR5 fasteners: 50 lb-ft (68 N*m)
- Tighten all fasteners to the specified torque values:
-
Trim Fascia Tabs:
- Trim the fascia tabs as necessary. Reinstall the fascia attachments on both sides.
-
Reattach Exhaust System:
- Raise the exhaust system back into position and secure it to the rubber isolators.
Hardware List:
- Qty (6): Carriage Bolt – 7/16"-14 x 1.50" GR5
- Qty (6): Conical Washer – 7/16"
- Qty (6): Hex Nut – 7/16"-14
- Qty (4): Spacer – .250 x 1.00 x 3.00
- Qty (2): Spacer – .250 x 1.50 x 3.00
- Qty (6): Pull Wire – 7/16"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-Connector Adapter for Nissan NV200
Part Numbers:
- 118597
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring Connectors:
- Open the rear door and remove the access panels on both sides to expose the vehicle’s wiring connectors.
- Remove trim panel fasteners carefully to avoid damaging the panels.
-
Locate the Taillight Wiring Harness:
- Disconnect the vehicle’s taillight wiring harness on both driver and passenger sides.
- Ensure connectors are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Plug the T-Connector harness with the yellow wire in between the driver-side vehicle’s wiring connectors.
- Ensure the locking tabs are secure and the connectors are fully inserted.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector with the green wire across the top threshold and through the passenger-side trim panel access hole.
- Connect the green wire T-Connector to the passenger-side wiring harness.
Note: For easier installation, attach the harness to a fish wire and pull it carefully toward the passenger side.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind before drilling to avoid damage or injury.
-
Mount the Black Box:
- Mount the T-Connector black box so the epoxy side faces downward to prevent water buildup.
-
Connect the Power Wire:
- Attach the provided black 12-gauge wire to the black power wire from the T-Connector box using the supplied yellow butt connector.
- Route the black wire through a grommet or follow the existing wiring along the thresholds to the engine compartment and battery.
Warning: Avoid routing the wire near hot pipes, heat shields, or areas that could pinch or break the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the vehicle’s positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector. Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
Warning: Ensure all connections are complete before testing the system. Test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that could pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated ratings or vehicle manufacturer's specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
