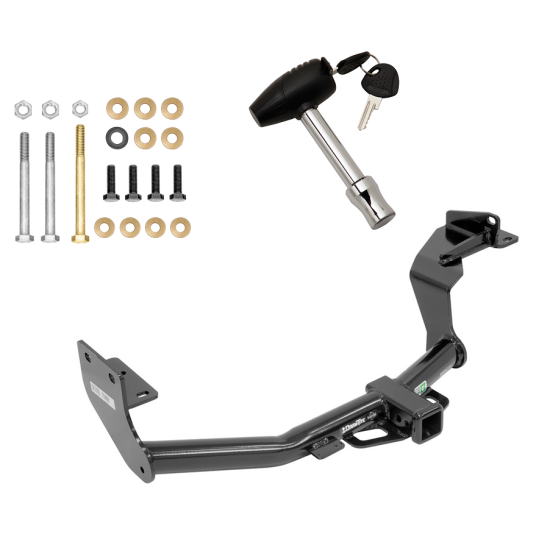

Trailer Tow Hitch For 16‑20 Kia Sorento 19‑20 Hyundai Santa Fe New Body w/ Security Lock Pin Key
Model: 75908 580407 *Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2020 KIA, Sorento, All Styles
2019 - 2020 Hyundai, Santa Fe, (New Body Style)
Trailer Hitch Specs:
| Part Number | 75908 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 2016 2017 2018 2019 2020
$247 57 $389.24 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$389.24 $247 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75908 580407 *
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Description
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2020 KIA, Sorento, All Styles
2019 - 2020 Hyundai, Santa Fe, (New Body Style)
Trailer Hitch Specs:
| Part Number | 75908 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch For 16-20 Kia Sorento 19-20 Hyundai Santa Fe New Body w/ Security Lock Pin Key Install Notes
Installation Instructions for Kia Sorento (2016–Current)
Part Numbers:
- 75908
- 87665
- 44750
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 14mm, 16mm, 17mm, 18mm, 19mm
- Socket Extension: 6"
- Philips Screwdriver
- Lubricant or Soapy Water
Step-by-Step Instructions:
-
Lower and Remove Spare Tire:
- The tire release is located underneath the storage compartment in the back of the vehicle.
-
Remove Driver Side Rear Plastic Cover:
- Use a small Phillips screwdriver to remove fasteners.
- Remove (5) plastic push pins and (2) nuts.
-
Lower Exhaust:
- Remove the rear and side hangers, supporting the exhaust to prevent damage.
- Spray lubricant or soapy water on the metal hanger rod and the rubber isolator for easier removal.
- Remove rubber plugs from the bottom of the frame rail on both sides.
-
Prepare Weldnuts:
- Run M10 bolts into the existing weldnuts in the frame rail to clean out debris, then remove them.
-
Position Hitch:
- Raise the hitch into position.
- Insert (items 1 & 2) on the driver’s side and (items 4 & 5) on the passenger’s side.
- Insert bolts through the bracket and frame as shown in Figure 1 for support.
- Note: If the bumper locator pin interferes with the hitch hardware, trim the pin with an angle grinder at the shoulder.
-
Secure Bolts:
- Insert M10 bolts (items 8 & 7) through the bracket into the frame and hand-tighten.
-
Install Washers and Nuts:
- Attach the remaining conical washers and hex nuts to the bolts.
-
Torque Fasteners:
- Tighten fasteners to the specified torque values:
- M10 CL10.9 bolts: 40 lb-ft (54 N*m)
- 1/2 GR5 bolts: 75 lb-ft (102 N*m)
- M12 GR8.8 bolts: 68 lb-ft (92 N*m)
- Tighten fasteners to the specified torque values:
-
Reattach Exhaust:
- Raise the exhaust back into position.
-
Reinstall Plastic Cover:
- Reinstall the plastic cover removed in Step 2.
-
Reinstall Spare Tire:
- Ensure the spare tire is seated properly.
Hardware List:
- Qty (2): Hex Bolt – 1/2-13 x 4.50 GR5
- Qty (5): Conical Washer – 1/2"
- Qty (2): Hex Nut – 1/2-13
- Qty (1): Hex Bolt – M12 x 1.75 x 120mm CL8.8
- Qty (1): Flat Washer – 1/2" Hardened
- Qty (1): Hex Nut – M12 x 1.75 CL8
- Qty (4): Hex Bolt – M10 x 1.25 x 30mm CL10.9
- Qty (4): Conical Washer – 7/16"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 500 lbs (227 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
