Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock

Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Legacy and Limited w/ J-Pin Anti-Rattle Lock
$269.32
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 76016 63201

Applies to this product only

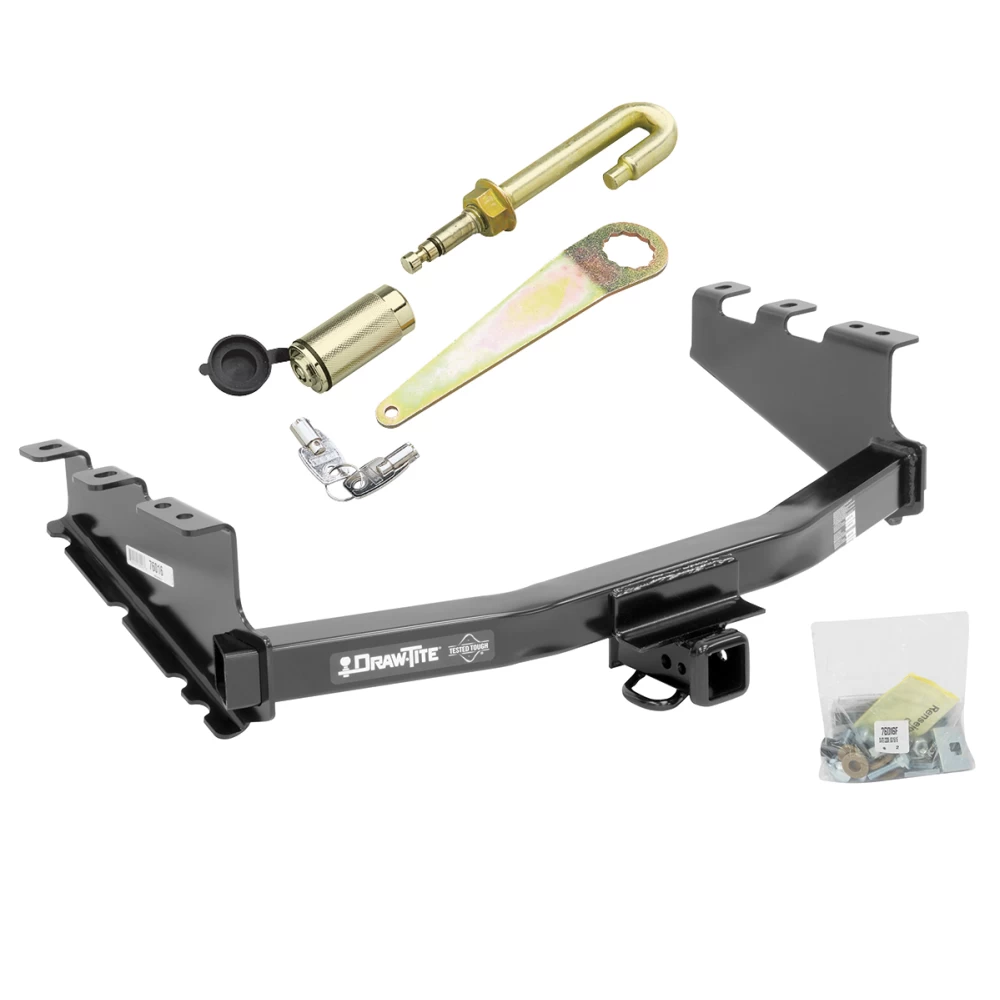

Includes Everything Pictured:
Custom Fit Trailer Hitch
Security J-Pin
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2014 - 2018    Chevrolet, Silverado 1500, All Styles
2014 - 2018    GMC, Sierra 1500, All Styles
2019    GMC, Sierra 1500, Legacy
2019    Chevrolet, Silverado 1500, Limited

Trailer Hitch Specs:

Part Number 76016
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution 10,000 lbs
Max Tongue Weight 900/1000 lbs
Warranty Lifetime
Installation Instructions

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft    STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head    STEP 3:
Secure ball mount or hitch-mounted accessory with locking head


Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019

Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 10,000 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,000 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
