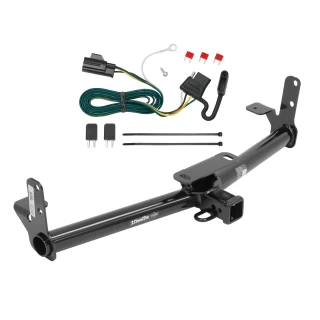

Trailer Tow Hitch For 07‑09 Chevy Equinox Pontiac Torrent w/ Wiring Harness Kit
Model: 76028 118432Custom Fit Trailer Hitch

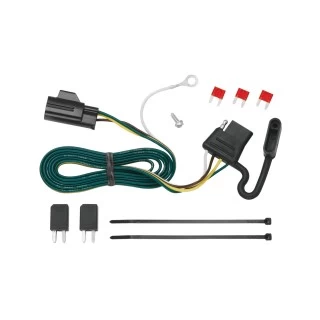

Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Chevrolet, Equinox, All Styles
2007 - 2009 Pontiac, Torrent, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118432 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 07 08 09 2007 2008 2009
$194 14 $304.60 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$304.60 $194 14
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $48.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76028 118432
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 675 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 675 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Chevrolet, Equinox, All Styles
2007 - 2009 Pontiac, Torrent, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118432 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 07 08 09 2007 2008 2009
Get Expert Help
Trailer Tow Hitch For 07-09 Chevy Equinox Pontiac Torrent w/ Wiring Harness Kit Install Notes
Installation Instructions for Draw-Tite and Reese Trailer Hitch #76028, #84028, and #CQT76028
Part Numbers:
- 76028
- 84028
- CQT76028
Applications:
- Years: 2005-Current (Chevrolet Equinox), 2010-Current (GMC Terrain), 2006-2009 (Pontiac Torrent), 2002-2007 (Saturn Vue, except Redline)
- Make and Models: Chevrolet Equinox, GMC Terrain, Pontiac Torrent, Saturn Vue
For the most up-to-date application years and trim levels, refer to the manufacturer's website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18 mm, 19 mm, 3/4"
- 6" Socket Extension
- Utility Knife
- Tape Measure
Step-by-Step Instructions:
1. Remove the Fascia Door:
- If present, remove the fascia door.
2. Install Carriage Bolts and Blocks:
- Feed the carriage bolt and large block through slots on the bottom of the frame rails using the pull wire as shown in Figure 3.
3. Position the Hitch:
- Raise the hitch into position, lifting the bumper mounting bracket over the fascia where necessary.
- Secure the hitch using M12 bolts and conical washers into the existing weld nuts. Be cautious not to push the bolts into the frame (Figure 1).
4. Install Hardware:
- Thread the conical washer over the pull wire to hold the bolt in place, remove the pull wire, and attach the hex nut.
- Hand-tighten all bolts.
5. Secure to Bumper:
- For vehicles without weld nuts:
Pull carriage bolts and small blocks through the end of the bumper and the bumper mounting bracket using the pull wire. Attach the conical washer and nut. - For vehicles with weld nuts:
Install the M12 bolts and conical washers into the existing weld nuts on the bumper (Figure 2).
6. Tighten Fasteners:
- Torque all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
7. Replace or Modify Fascia Door:
- Replace the fascia door for 2005-2015 Equinox models.
- For 2016 and newer models, trim the fascia door as shown in Figure 4 (obtain the owner's permission before trimming).
- Return fascia doors to the owner for other models.
Hardware List:
- 4 × Carriage Bolt (1/2-13 × 1.50 GR5)
- 2 × Spacer Block (.250 × 1.50 × 3.00)
- 8 × Conical Washer (1/2")
- 4 × Hex Nut (1/2-13 GR2)
- 6 × Bolt (M12 × 1.75 × 45 CL10.9)
- 2 × Small Spacer Block (.250 × 1.50 × 2.0)
- 4 × Pull Wire (1/2-13)
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque for all fasteners to keep the hitch secure while towing.
- Do not cut access or attachment holes with a torch.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
- Periodically check all fasteners for tightness.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118432
- Application: Chevrolet Equinox, Pontiac Torrent, Suzuki XL-7
Tools Required:
- Ratchet
- 10mm Socket or Wrench
Step-by-Step Instructions:
-
Access the Wiring Harness Area:
- Chevrolet Equinox / Pontiac Torrent:
- Open the rear tailgate.
- Locate the jack storage compartment on the driver’s side.
- Remove the panel and tire jack to access the harness area.
- Suzuki XL-7:
- Open the rear tailgate.
- Locate the jack storage compartment on the passenger side.
- Remove the panel and tire jack to access the harness area.
- Chevrolet Equinox / Pontiac Torrent:
-
Locate the Trailer Harness Connector:
- Chevrolet Equinox / Pontiac Torrent:
- The 4-pin connector is attached to the floor of the jack compartment with a plastic clip.
- Suzuki XL-7:
- The 4-pin connector is located on the top-left side of the jack compartment.
- Chevrolet Equinox / Pontiac Torrent:
-
Insert the T-Connector:
- Connect the T-Connector into the vehicle’s trailer plug harness.
- Ensure the T-Connector is fully inserted and the locking tabs engage securely.
-
Ground the White Wire:
- Chevrolet Equinox / Pontiac Torrent:
- Locate the ground stud near the trailer plug connector.
- Use a 10mm socket or wrench to remove the bolt.
- Place the white wire with the eyelet around the bolt and re-tighten it.
- Suzuki XL-7:
- Locate the ground stud on the floor beneath the jack compartment.
- Remove the bolt, attach the white wire eyelet, and re-tighten the bolt.
Warning: Ensure all other ground connections remain secure when reattaching the ground stud.
- Chevrolet Equinox / Pontiac Torrent:
-
Install Relays in Fuse Box:
- Open the vehicle’s hood and locate the fuse/relay box near the driver’s side firewall.
- Carefully remove the cover without damaging the locking tabs.
- Locate relay positions 58 and 59:
- Place one of the provided relays into position 58 to activate the Right Turn/Stop Trailer Light.
- Place the second relay into position 59 to activate the Left Turn/Stop Trailer Light.
Warning: Relays must not exceed 20 amps. Using improper relays may cause damage.
-
Insert Fuses:
- Locate fuse positions 35, 37, and 43 in the fuse box:
- Insert a 10-amp fuse into position 35 to power the Park Lamp Trailer Function.
- Insert a 10-amp fuse into position 37 to power the Left Turn/Stop Function.
- Insert a 10-amp fuse into position 43 to power the Right Turn/Stop Function.
Warning: Replacing fuses exceeding 10 amps may damage the vehicle or trailer.
- Locate fuse positions 35, 37, and 43 in the fuse box:
-
Verify Installation:
- Test the wiring harness installation using a test light or by connecting a trailer.
- To reset the vehicle’s electrical system during the first test, temporarily remove the key from the ignition.
Warnings:
-
Overloaded Circuits:
- Do not exceed the following amperage limits:
- Max Stop/Turn Lights: 7.5 amps
- Max Tail Lights: 7.5 amps
- Refer to the vehicle’s owner’s manual for towing ratings.
- Do not exceed the following amperage limits:
-
Relays and Fuses:
- Ensure all relays and fuses are inserted properly.
- Only use the provided relays and 10-amp fuses.
-
Safety Precautions:
- Wear safety glasses and follow proper safety guidelines when working near electrical systems.
Notes:
- Store the 4-flat connector in the jack storage compartment when not in use.
- Periodically check all connections and wiring for wear or damage.
Technical Support:
For questions or troubleshooting, contact the manufacturer’s technical support team.
Warning: Improper installation or circuit overloads may result in system failure, vehicle damage, or fire.
