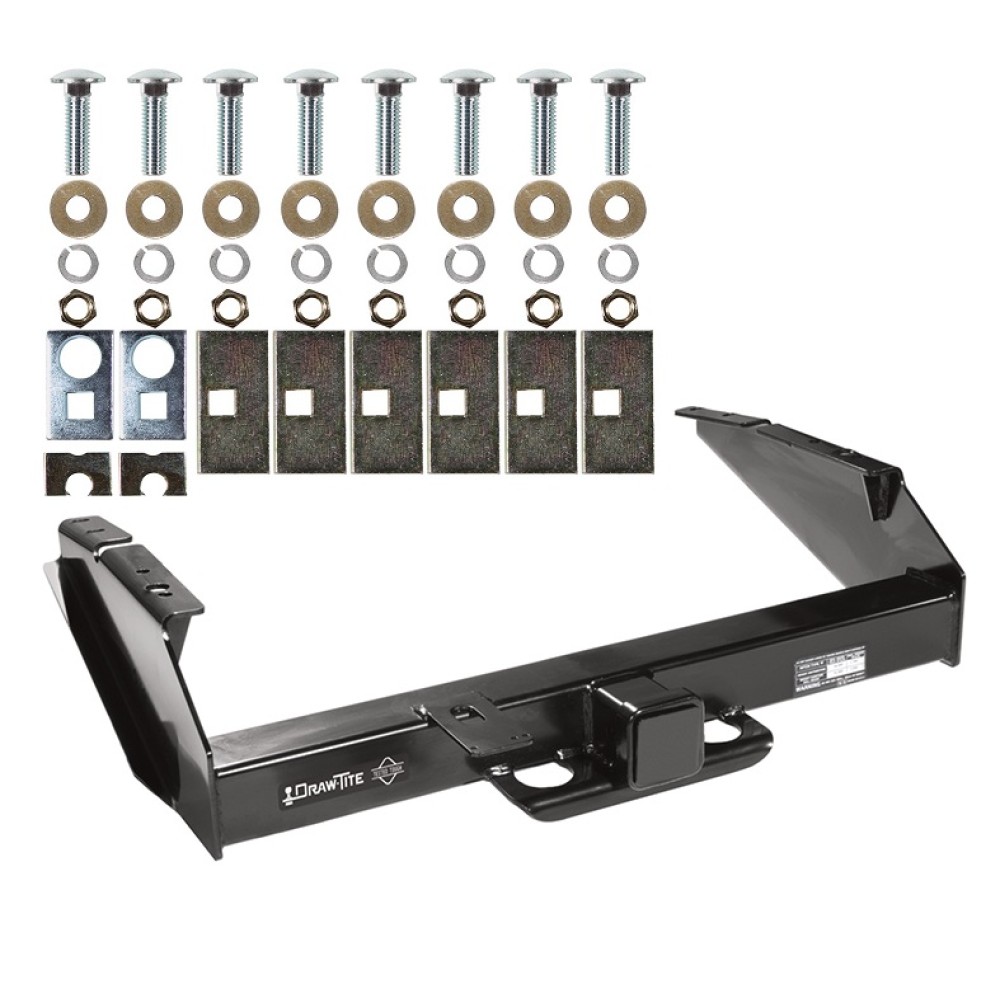

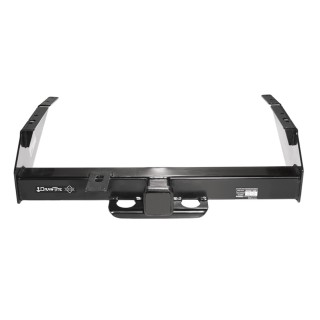

Trailer Tow Hitch For 80‑97 FORD F‑250 F‑350 2‑1/2" Towing Receiver Class V
Model: 455021980 - 1986 Ford, F-250, Except w/Custom Fascia
1980 - 1986 Ford, F-350, Except w/Custom Fascia
1987 - 1996 Ford, F-250, All Styles
1987 - 1996 Ford, F-350, All Styles
1997 Ford, F-250, Heavy Duty
1997 Ford, F-350, Heavy Duty
Trailer Hitch Specs:
| Part Number | 45502 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
$289 47 $452.00 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$452.00 $289 47
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $72.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45502
- UPC: 742512455021
- Includes: Titan Class 5 Trailer Tow Hitch
Compatibility Chart
1980 - 1986 Ford, F-250, Except w/Custom Fascia
1980 - 1986 Ford, F-350, Except w/Custom Fascia
1987 - 1996 Ford, F-250, All Styles
1987 - 1996 Ford, F-350, All Styles
1997 Ford, F-250, Heavy Duty
1997 Ford, F-350, Heavy Duty
Trailer Hitch Specs:
| Part Number | 45502 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
Get Expert Help
Trailer Tow Hitch For 80-97 FORD F-250 F-350 2-1/2" Towing Receiver Class V Install Notes
Installation Instructions for Ford F-250 and F-350 (1980–1997)
Part Numbers:
- 45502
- 45702
- CQT45502
Wiring Access Location:
- Not specified
Tools Required:
- Wrenches: 3/4"
- Drill Bits: 1/2"
- Ratchet
- Torque Wrench
- Safety Glasses
- Clamps
Installation Time:
- Approximately 45 minutes for professional installers
Step-by-Step Instructions:
-
Position Hitch:
- Place the hitch up to the frame with the large hole in the hitch flange over the rivet head near the end of the frame.
- Clamp the hitch into position.
-
Drill Holes:
- Using the holes in the brackets as a guide, drill eight (8) 1/2" holes into the truck frame.
-
Install Rear Fasteners:
- Insert a 1/2" carriage bolt with a small bolt plate and a two-hole plate through the rear hole in the frame.
- Install conical washers (teeth side against the hitch), lock washers, and hex nuts on the bolts.
-
Install Remaining Fasteners:
- Insert 1/2" carriage bolts with large bolt plates through the remaining holes.
- Install conical washers, lock washers, and hex nuts on the bolts.
-
Tighten All Fasteners:
- Use a torque wrench to tighten all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 Grade 5 fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (8) Carriage Bolts, 1/2"-13 x 2.00" GR5
- (6) Spacer Blocks, 0.250" x 1.5" x 3"
- (8) Conical Washers, 1/2"
- (8) Lock Washers, 1/2"
- (8) Hex Nuts, 1/2"-13 GR5
- (2) Spacer Blocks, 0.250" x 0.9" x 1.4"
- (2) Spacer Blocks, 0.250" x 1.43" x 2.32"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,356 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Not recommended for use on 1/2-ton vehicles.
- Observe all manufacturer warnings and installation instructions.
