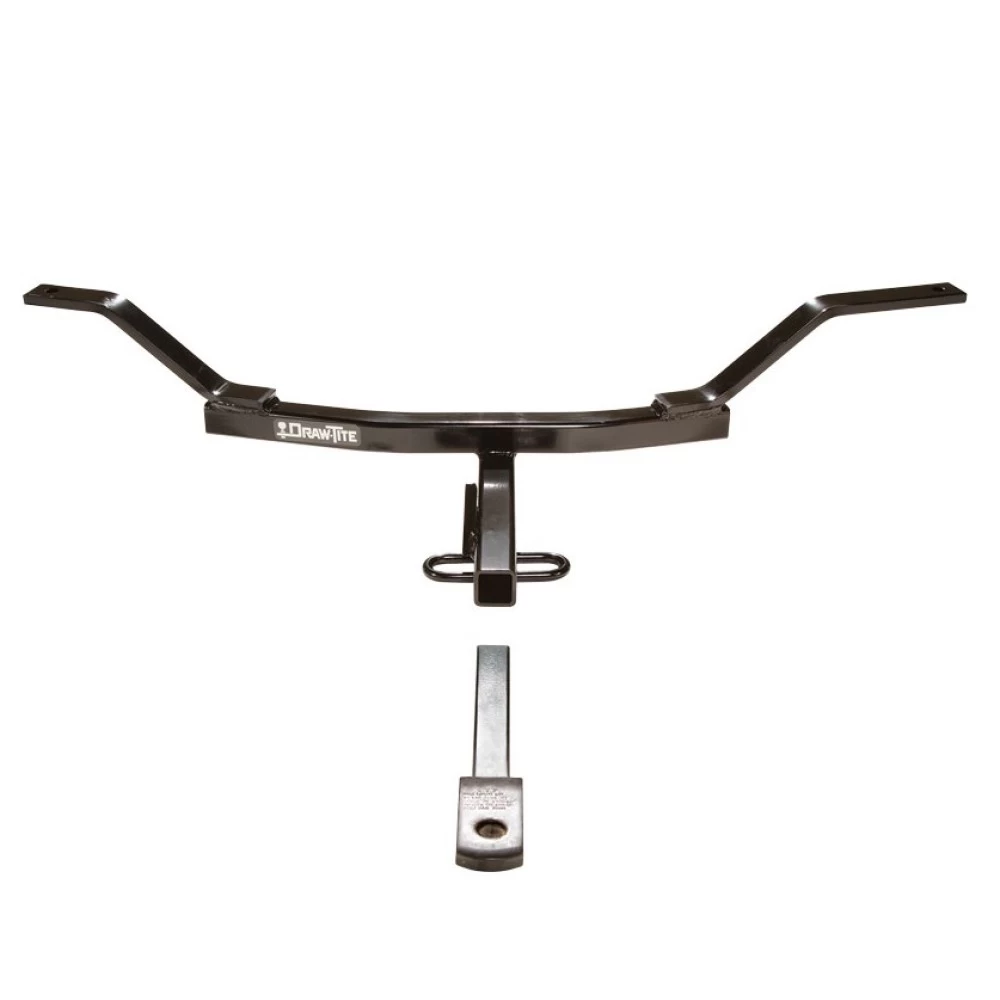

Trailer Tow Hitch For 97-01 Honda CR-V 1-1/4" Towing Receiver w/ Draw Bar Kit

Trailer Tow Hitch For 97‑01 Honda CR‑V 1‑1/4" Towing Receiver w/ Draw Bar Kit

Model: 247900

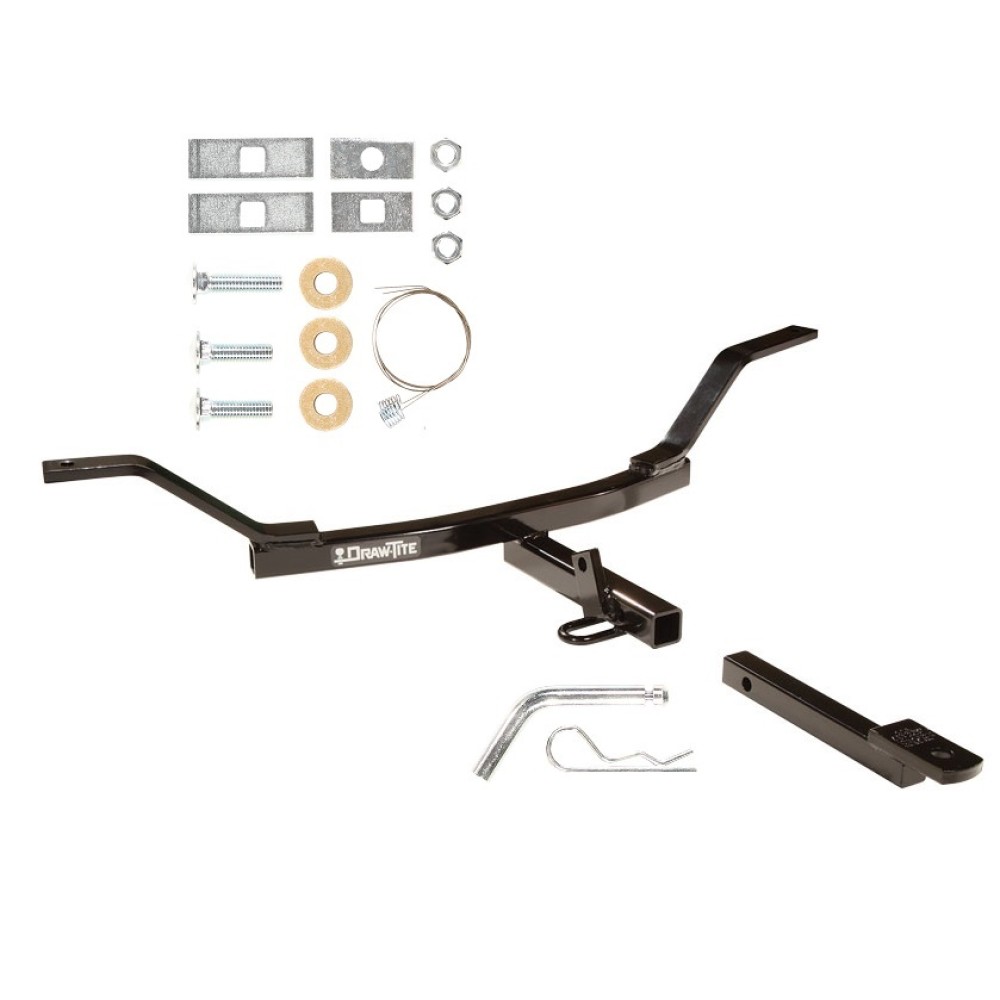

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions

This Hitch Fits The Following Vehicles:
1997 - 2001 Honda, CR-V, All Styles

Trailer Hitch Specs:

Part Number	247900
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 97 98 99 00 01 1997 1998 1999 2000 2001

See Full Description

$168 ⁸⁸ $274.24 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$274.24 $168 ⁸⁸

Pay in 4 interest-free installments of $42.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $42.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 247900
UPC: 016118136869
Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	247900
Brand	Draw-Tite
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 247900 , 1997 , 1998 , 1999 , 2000 , 2001 , 97 , 98 , 99 , 00 , 01 , Honda , CR-V , Draw-Tite , Trailer , Hitch , W/ , Draw-Bar

Get Expert Help

Trailer Tow Hitch For 97-01 Honda CR-V 1-1/4" Towing Receiver w/ Draw Bar Kit Install Notes

Installation Instructions for Honda CR-V

Part Numbers:

60907
24790
77164

Wiring Access Location:

SUV3

Tools Required:

Wrenches: 3/4”
Drill Bits: None

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Prepare Bolt and Plate Assembly:
- Thread the bolt leader onto the 1 3/4” carriage bolt.
- Insert the bolt leader through the hole in the reinforcing plate.
Fishwire the Bolt Assembly:
- Feed the carriage bolt (head first), followed by the reinforcing plate, into the access hole in the bottom of the frame.
- Carefully pull the bolt leader until the bolt and plate are positioned correctly. Repeat for the other side.
Install Hitch:
- Raise the hitch into position on the vehicle, ensuring not to push the bolt assemblies back into the frame.
- Remove the bolt leaders and install the conical washers and nuts.
Secure Tie-Down Hook:
- Install the 2” carriage bolt along with the square hole spacer, round hole spacer, conical washer, and nut through the vehicle’s tie-down hook and the hitch’s mounting tab. Follow the sequence shown in the illustration.
Tighten Fasteners:
- Torque all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).
Final Check:
- Verify that all fasteners and the hitch ball are securely tightened.

Hardware List:

(2) 1/2”-13 x 1 3/4” GR5 Carriage Bolts
(2) Reinforcement Plates (1” x 3” x 1/4”)
(3) 1/2”-13 Nuts
(3) Conical Toothed Washers
(2) Bolt Leaders
(1) 1/2”-13 x 2” GR5 Carriage Bolt
(1) Spacer (Square Hole, 1” x 2” x 1/4”)
(1) Spacer (Round Hole, 1” x 2” x 1/4”)

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always observe safety precautions and wear eye protection when working under the vehicle.
Do not cut access or attachment holes with a torch.

Drawbar:

Drawbar Kit: 3591
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

Check the hitch frequently to ensure all fasteners remain tight.
For enclosed frame installation, refer to the access instructions provided on the additional diagram.
