Trailer Tow Hitch For 99‑09 VW Volkswagen Jetta Sedan City 1‑1/4" Receiver Class 1
Model: 247481999 - 2005 Volkswagen, Jetta, Sedan, Except Gas Turbo & Wagon
2007 - 2009 Volkswagen, Jetta City, Sedan (Canada Only)
Trailer Hitch Specs:
| Part Number | 24748 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
$211 93 $320.73 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $211 93
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24748
- UPC: 742512247480
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
1999 - 2005 Volkswagen, Jetta, Sedan, Except Gas Turbo & Wagon
2007 - 2009 Volkswagen, Jetta City, Sedan (Canada Only)
Trailer Hitch Specs:
| Part Number | 24748 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
Get Expert Help
Trailer Tow Hitch For 99-09 VW Volkswagen Jetta Sedan City 1-1/4" Receiver Class 1 Install Notes
Installation Instructions for VW Jetta Sedan and VW City Jetta (Canada Only)
(Except Turbo and All Wagons)
Part Numbers:
- 77106
- 24748
- 24783
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Vehicle:
- Remove the spare tire from the trunk before drilling.
-
Position Hitch:
- Raise the hitch into position and install the 1/2”-13 hex bolt at the tow hook location.
-
Drill Holes:
- Using the hitch as a template, drill three (3) 1/2" holes for hitch attachment.
-
Install Carriage Bolts:
- Install three (3) 1/2”-13 carriage bolts into the drilled holes.
-
Install Long Spacer:
- Position the long spacer (with 2 square holes) inside the trunk pan as shown in the diagram.
- Use the spacer as a template to drill the remaining 1/2" hole.
- Install the remaining fasteners.
-
Seal Holes:
- Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.
-
Reinstall Spare Tire:
- Replace the spare tire in the trunk.
-
Tighten Fasteners:
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

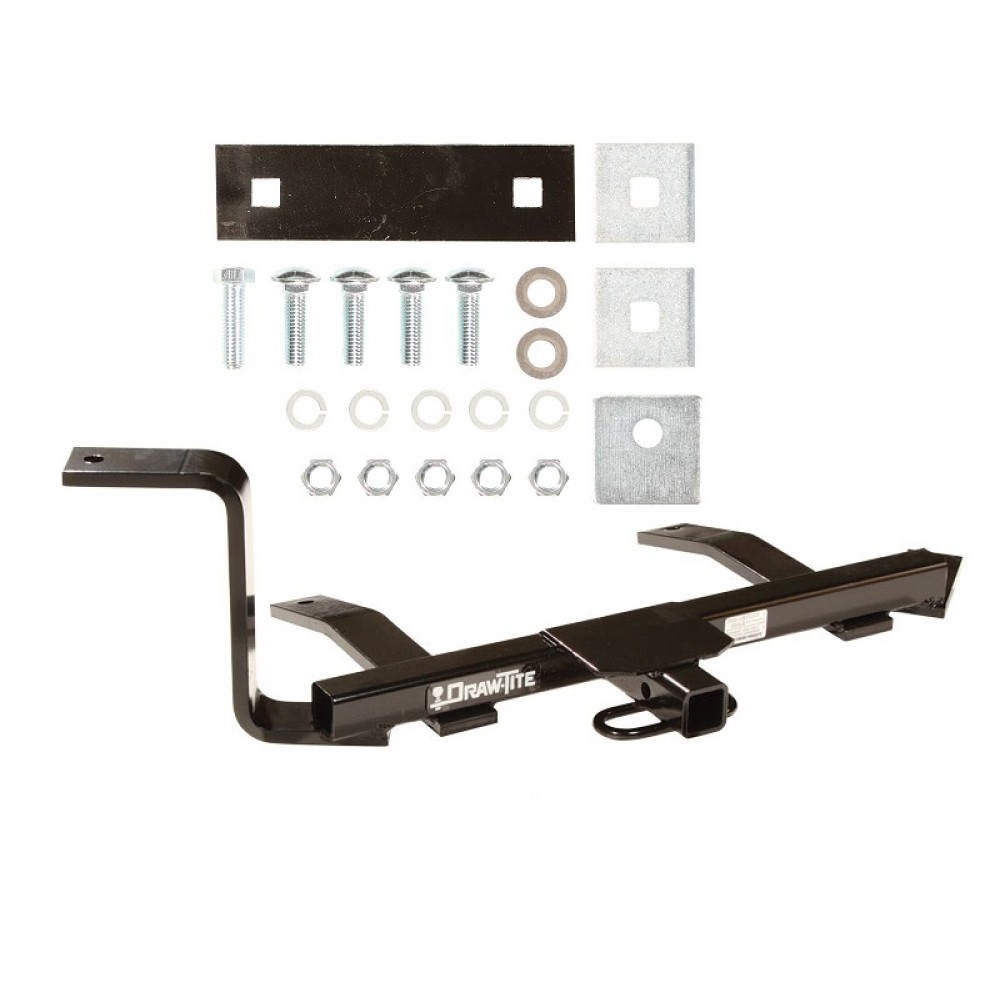

Hardware List:
- (1) 1/2”-13 x 1.75” Hex Bolt
- (5) 1/2”-13 Hex Nuts
- (2) Flat Washers
- (4) 1/2”-13 x 1.75” Carriage Bolts
- (1) Spacer
- (2) Spacers (Square Holes)
- (5) Lock Washers
- (1) Long Spacer Bar
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
