Trailer Tow Hitch For 99‑02 Chevy Silverado GMC Sierra 1500 01‑07 1500 HD 99‑04 2500
Model: 419321999 - 2002 Chevrolet, Silverado 1500, All Styles
1999 - 2004 Chevrolet, Silverado 2500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2002 GMC, Sierra 1500, All Styles
1999 - 2004 GMC, Sierra 2500, All Styles
2001 - 2007 GMC, Sierra 1500 HD, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
Trailer Hitch Specs:
| Part Number | 41932 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
$293 73 $458.69 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$458.69 $293 73
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $73.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41932
- UPC: 742512419320

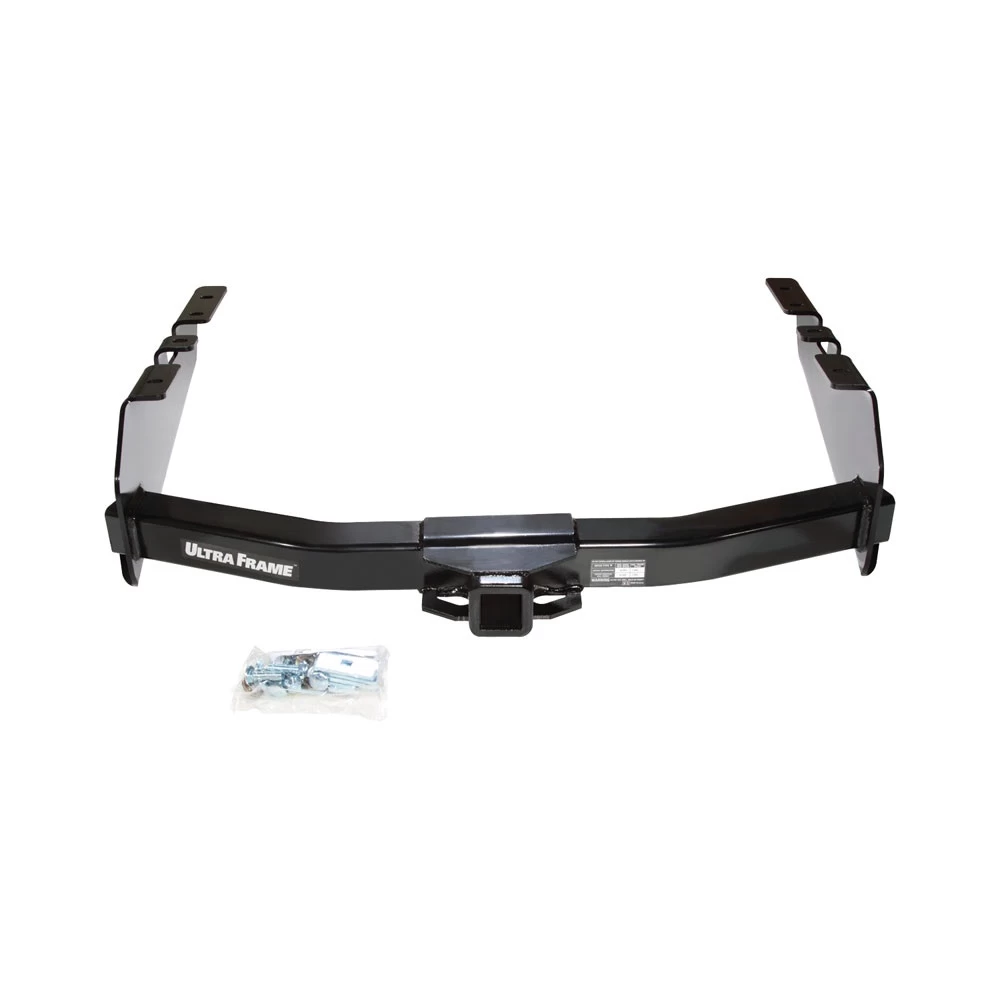

- Includes: Ultra Frame Class 5 Trailer Tow Hitch
Compatibility Chart
Description
1999 - 2002 Chevrolet, Silverado 1500, All Styles
1999 - 2004 Chevrolet, Silverado 2500, All Styles
2001 - 2003 Chevrolet, Silverado 1500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 1500, (Classic)
2005 - 2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2002 GMC, Sierra 1500, All Styles
1999 - 2004 GMC, Sierra 2500, All Styles
2001 - 2007 GMC, Sierra 1500 HD, All Styles
2003 - 2007 GMC, Sierra 1500, (Classic)
Trailer Hitch Specs:
| Part Number | 41932 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Trailer Tow Hitch For 99-02 Chevy Silverado GMC Sierra 1500 01-07 1500 HD 99-04 2500 Install Notes
Installation Instructions for Chevrolet Silverado and GMC Sierra Pickups (Vehicles with Amber Turn Signals and Factory Bumper)
Part Numbers:
- 41932
- 96932
- 81587
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 7/8", 21mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Factory Bolts:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position Hitch:
- Lift the receiver into position.
- Align the rearmost slots in the receiver under the existing weldnuts in the vehicle frame.
-
Install Factory Bolts:
- Reinstall the existing M14 bolts through the receiver and frame into the weldnuts.
-
Install Additional Fasteners:
- Install the remaining fasteners as shown in the installation diagram.
-
Tighten Fasteners:
- Use a torque wrench to tighten:
- All 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- All M14 fasteners to 115 lb-ft (156 N*m).
- Use a torque wrench to tighten:
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M14 fasteners: 115 lb-ft (156 N*m)

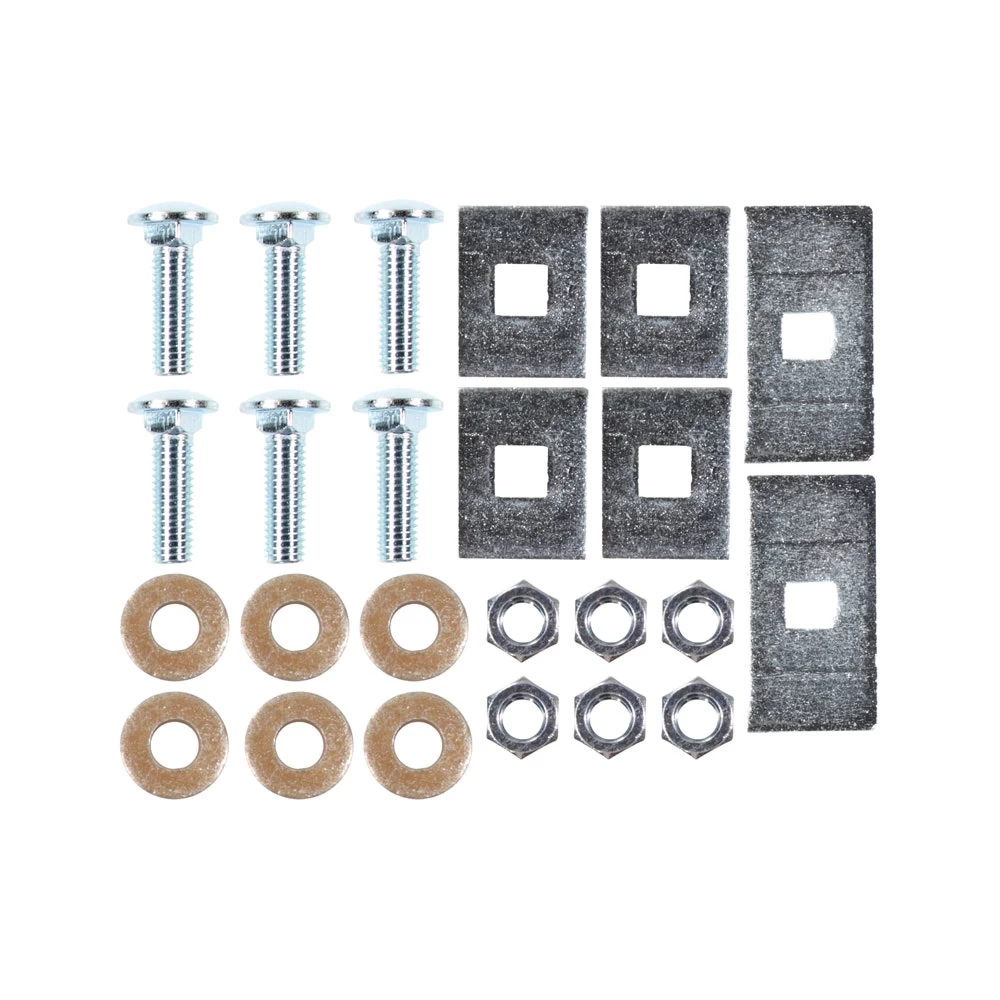

Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (6) Hex Nuts, 1/2"-13
- (6) Conical Toothed Washers
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (4) Spacer Blocks, 1/4" x 1-1/2" x 2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,356 kg)
- Max Tongue Weight: 1,400 lb (636 kg)
Additional Notes:
- Ensure factory step bumper and brackets are used in conjunction with the hitch.
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
