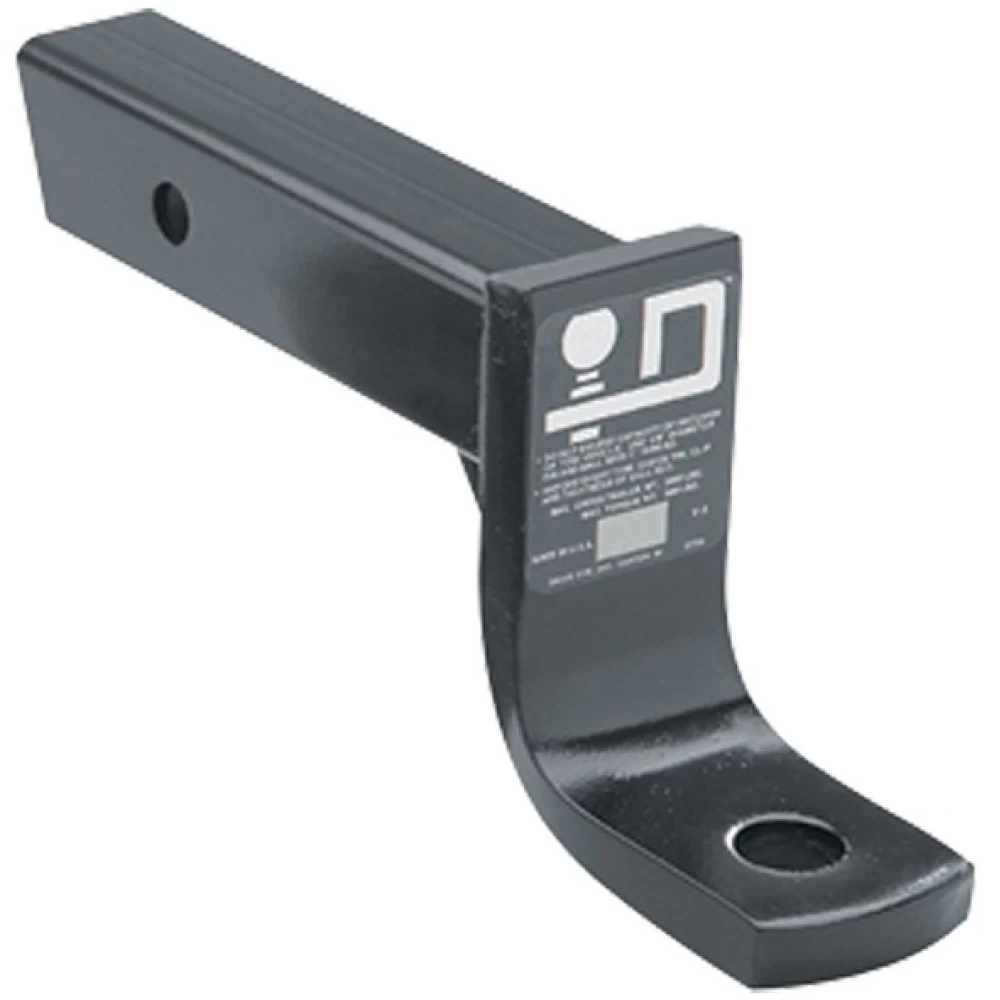

Ball Mount Draw-Bar 5000 lbs 10" Long 6-3/4" Rise 8" Drop Fits 2" x 2" Trailer Hitch Receiver
$43.58
- Stock: In Stock
- Brand: Draw-Tite
- Model: 2793
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (both sold seperately)
Specifications:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 10" From Center of Pin Hole to Center of Ball Hole |
| Rise | 6-3/4" From inside top of hitch opening |
| Towing Capacity in Rise Position | 5,000 lb Gross Towing Weight 500 lb Tongue Weight |
| Drop | 8" From inside top of hitch opening |
| Towing Capacity in Drop Position | 5,000 lb Gross Towing Weight 500 lb Tongue Weight |
| Ball Hole Diameter | 1" |
| Warranty | Limited Lifetime |
How To Select The Right Ball Mount
MEASURING FOR THE PROPER BALL MOUNT
MEASURING FOR THE PROPER BALL MOUNT
1. Measure from the ground to the top of the hitch.
2. Measure from the ground to the (inside) top of the trailer coupler,
when level.
3. Subtract the height of the hitch ball (most are 2-1/2” - 3” high) from coupler
measurement.
4. An 8” drop is needed to make the trailer level.
THE DIFFERENCE IN THE TWO MEASUREMENTS IS THE
AMOUNT OF BALL MOUNT “RISE” OR “DROP” REQUIRED.
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our Ball mounts are easily connected to your Car Truck Van SUV and RV. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
