Forged Ball Mount Draw-Bar 16000 lbs 10-1/4" Long 5" Rise 6" Drop Fits 2" x 2" Trailer Hitch Receiver
$69.33
- Stock: In Stock
- Brand: Draw-Tite
- Model: 40332

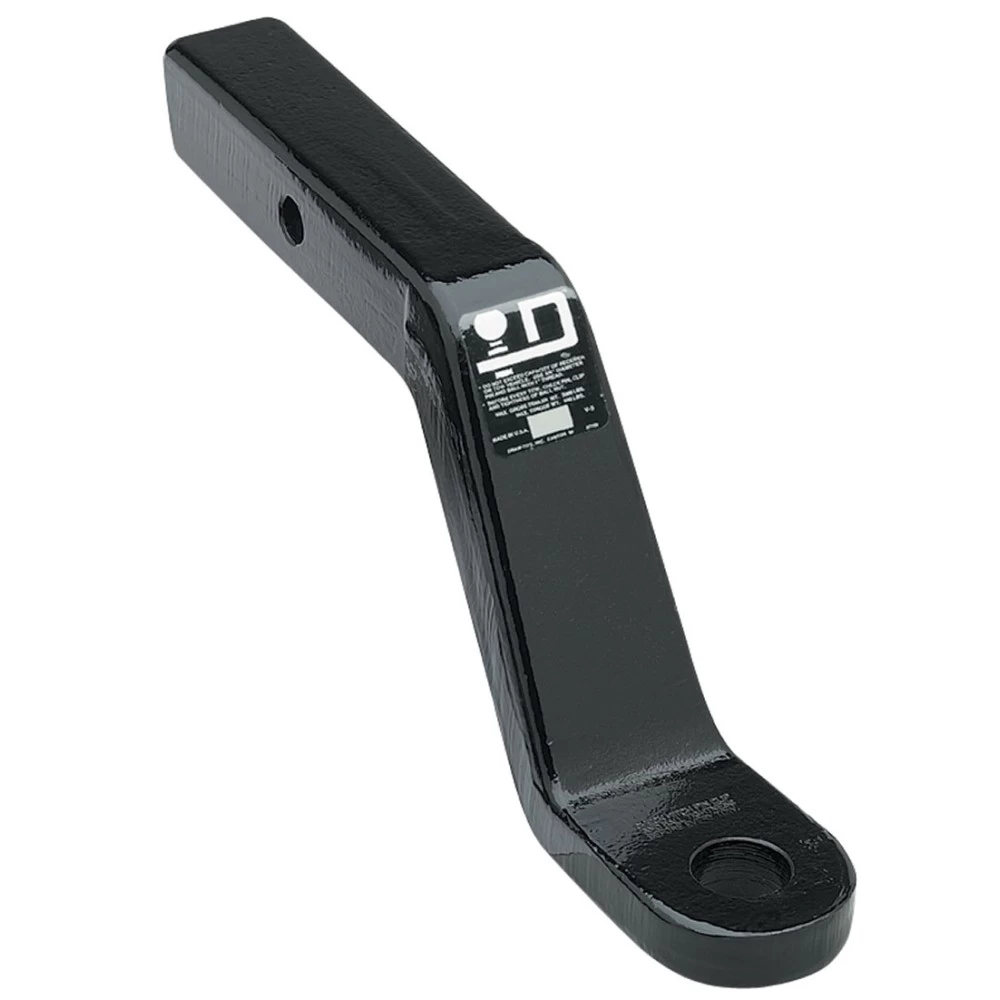

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip sold seperately)
Specifications:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 10-1/4" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 16,000 lb Gross Towing Weight 2,400 lb Tongue Weight |
| Drop | 6" From inside top of hitch opening |
| Towing Capacity in Drop Position | 16,000 lb Gross Towing Weight 2,400 lb Tongue Weight |
| Rise | 5" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Ball platform dimensions | 1" thick x 3" wide Ball shank must be at least 2-1/4" long |
| Pin Hole Diameter | 5/8" |
| Warranty | Limited Lifetime |
How To Select The Right Ball Mount
MEASURING FOR THE PROPER BALL MOUNT
MEASURING FOR THE PROPER BALL MOUNT
1. Measure from the ground to the top of the hitch.
2. Measure from the ground to the (inside) top of the trailer coupler,
when level.
3. Subtract the height of the hitch ball (most are 2-1/2” - 3” high) from coupler
measurement.
4. An 8” drop is needed to make the trailer level.
THE DIFFERENCE IN THE TWO MEASUREMENTS IS THE
AMOUNT OF BALL MOUNT “RISE” OR “DROP” REQUIRED.
