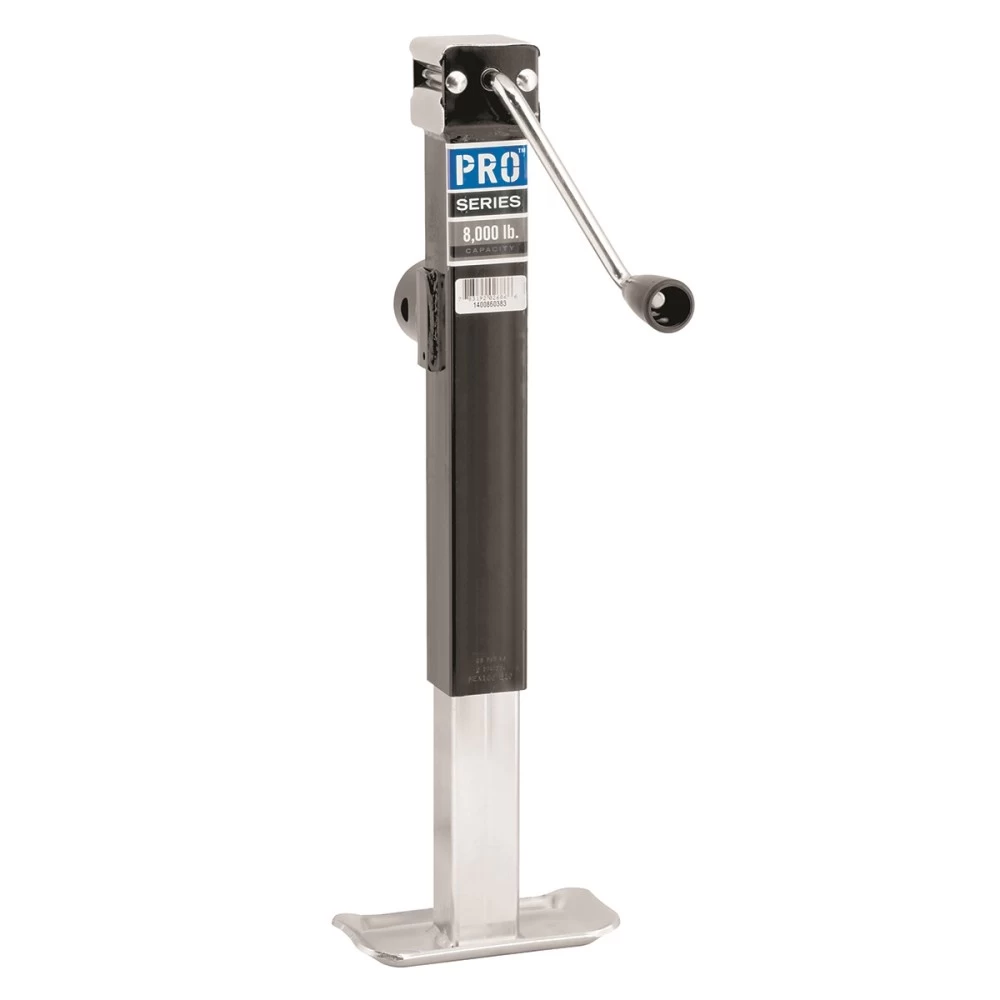

Pro Series 8,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Sidewind - 10" Lift
Model: 1400860383SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, our square jack dramatically improves side load strength. The extra side load capacity you need without the costs of increasing overall capacity.
-
12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity
-
Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes
-
Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance
-
Mounts included in this series of jacks
-
Finish is black painted outer tube, clear zinc inner tube. Fixed leg
-
Limited 1-year warranty
ASABE
Specifications:
-
Support Capacity: 8,000 lbs.
-
Lift Capacity: 5,000 lbs.
-
Retracted Bracket Height: 17.10" from bracket to bottom
-
Extended Bracket Height: 27.10"
-
Travel/Lift: 10"
-
Clearance: 7.30" from bracket to top
-
Fixed leg with base
-
Round tubular swivel mount (includes male mating mount, pin and chain)
-
Footplate and handle are included
$79 58 $93.75 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$93.75 $79 58
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 1400860383
- UPC: 783192026866
- Includes: 8000 lbs Square Jack
Specification | |
Jack Style | Pipe Mount |
Finish | Black |
Static Capacity | 8000 |
Lift Capacity | 5000 |
Lift Style | Sidewind |
Travel | 10" |
Retracted | 17.10" |
Extended | 27.10" |
Clearance | 7.30" |
Tubing Width | 2.25" |
Leg | Fixed Leg |
Swivel | Yes |
Foot | Footplate |
Jack Shape | Square |
Description Facts | Finish is black painted outer tube, clear zinc inner tube. Fixed leg. |
Ask a Question about Pro Series 8,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Sidewind - 10" Lift
Be the first to ask a question.
Description
SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, our square jack dramatically improves side load strength. The extra side load capacity you need without the costs of increasing overall capacity.
-
12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity
-
Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes
-
Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance
-
Mounts included in this series of jacks
-
Finish is black painted outer tube, clear zinc inner tube. Fixed leg
-
Limited 1-year warranty
ASABE
Specifications:
-
Support Capacity: 8,000 lbs.
-
Lift Capacity: 5,000 lbs.
-
Retracted Bracket Height: 17.10" from bracket to bottom
-
Extended Bracket Height: 27.10"
-
Travel/Lift: 10"
-
Clearance: 7.30" from bracket to top
-
Fixed leg with base
-
Round tubular swivel mount (includes male mating mount, pin and chain)
-
Footplate and handle are included
