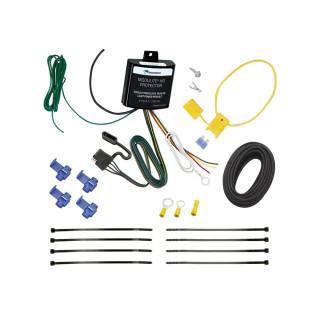

ModuLiteHD Protector Trailer Light Power Module & Installation Kit

ModuLiteHD Protector Trailer Light Power Module & Installation Kit

ModuLiteHD Protector Trailer Light Power Module & Installation Kit
ModuLiteHD Protector Trailer Light Power Module & Installation Kit
Home Towing Trailer Parts Trailer Jacks
0 reviews - Write a review
ModuLiteHD Protector Trailer Light Power Module & Installation Kit
$63.98
  • Stock: In Stock
  • Brand: Tekonsha
  • Model: 119148
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate
ModuLiteHD Protector Trailer Light Power Module & Installation Kit
  • The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
  • Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
  • Will work with either LED/Incandescent bulbs (vehicle & trailer)
  • Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
  • Designed not to send feedback thru the vehicle circuits
  • The trailer brakes will override the hazard lamps when the brake is activated
  • The taillight circuit has been upgraded to work with vehicles that use a pulse width modulation (PWM), this will allow the converter to turn on fully and gives the trailer lights full brightness during activation
  • Will work with most vehicles that have a multiplex system for lighting
  • Will not work with vehicles with low-side switch
  • Can be used on a 2 wire or 3 wire system
  • All solid-state components in potted encapsulation
  • Includes integrated protective cover
Specification
Circuit Protected Yes
Hardware Included Yes
Harness Type 4-Way Flat (Vehicle Side)
Terminal Quantity 4
Universal Or Specific Fit Universal Fit
Wire Colors Brown, Green, Yellow, White
Wire Quantity 4 Wires
