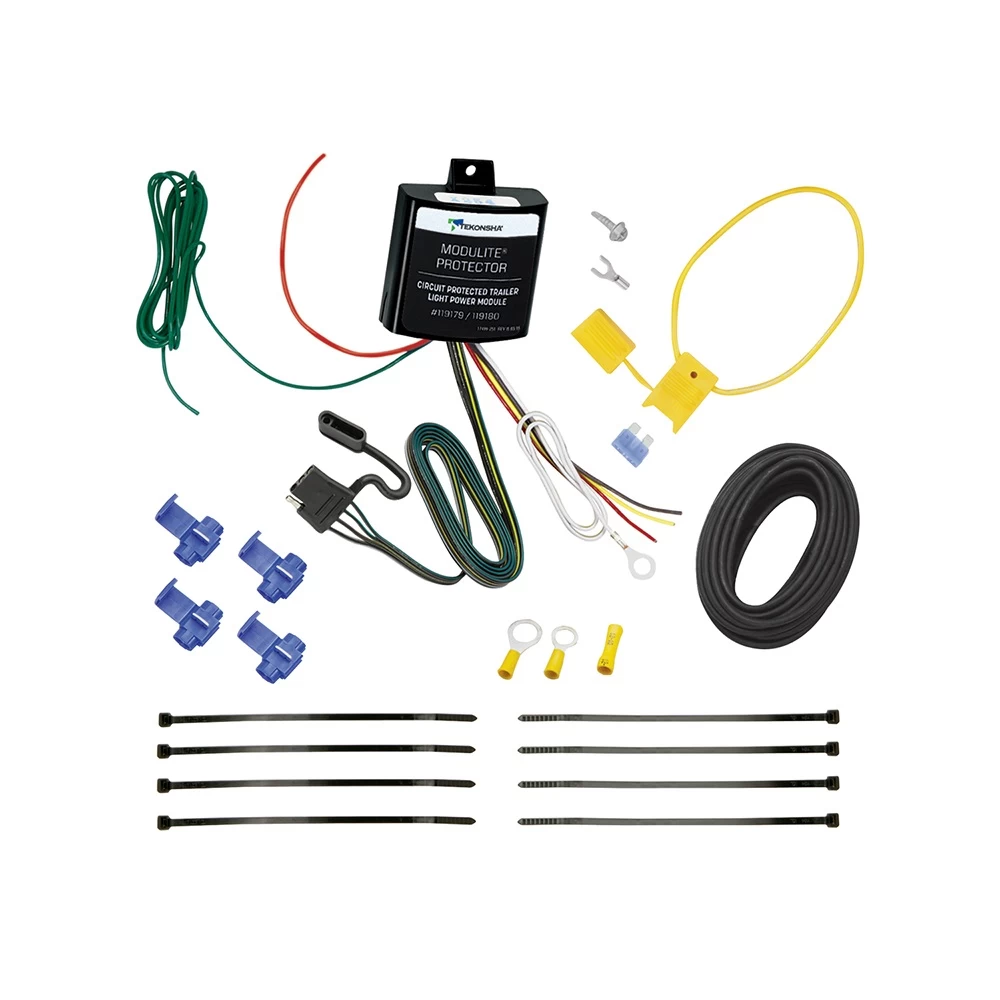

Name: ModuLiteProtector w/Integrated Circuit Protection & Installation Kit
Brand: Tekonsha
Price: 61.03 USD
Availability: InStock

ModuLiteProtector w/Integrated Circuit Protection & Installation Kit

0 reviews - Write a review

$61.03

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

ModuLiteProtector w/Integrated Circuit Protection & Installation Kit

The unit is rated for up to 2.1 amps for Turns/Stops circuits and 5.6 amps for the Taillight circuit
Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
Will work with either LED/Incandescent bulbs (vehicle & trailer)
Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
Designed not to send feedback thru the vehicle circuits
The trailer brakes will override the hazard lamps when the brake is activated
The taillight circuit has been upgraded to work with vehicles that use a pulse width modulation (PWM), this will allow the converter to turn on fully and gives the trailer lights full brightness during activation
Will work with most vehicles that have a multiplex system for lighting
Will not work with vehicles with low-side switch
Can be used on a 2 wire or 3 wire system
All solid-state components in potted encapsulation
Includes integrated protective cover
