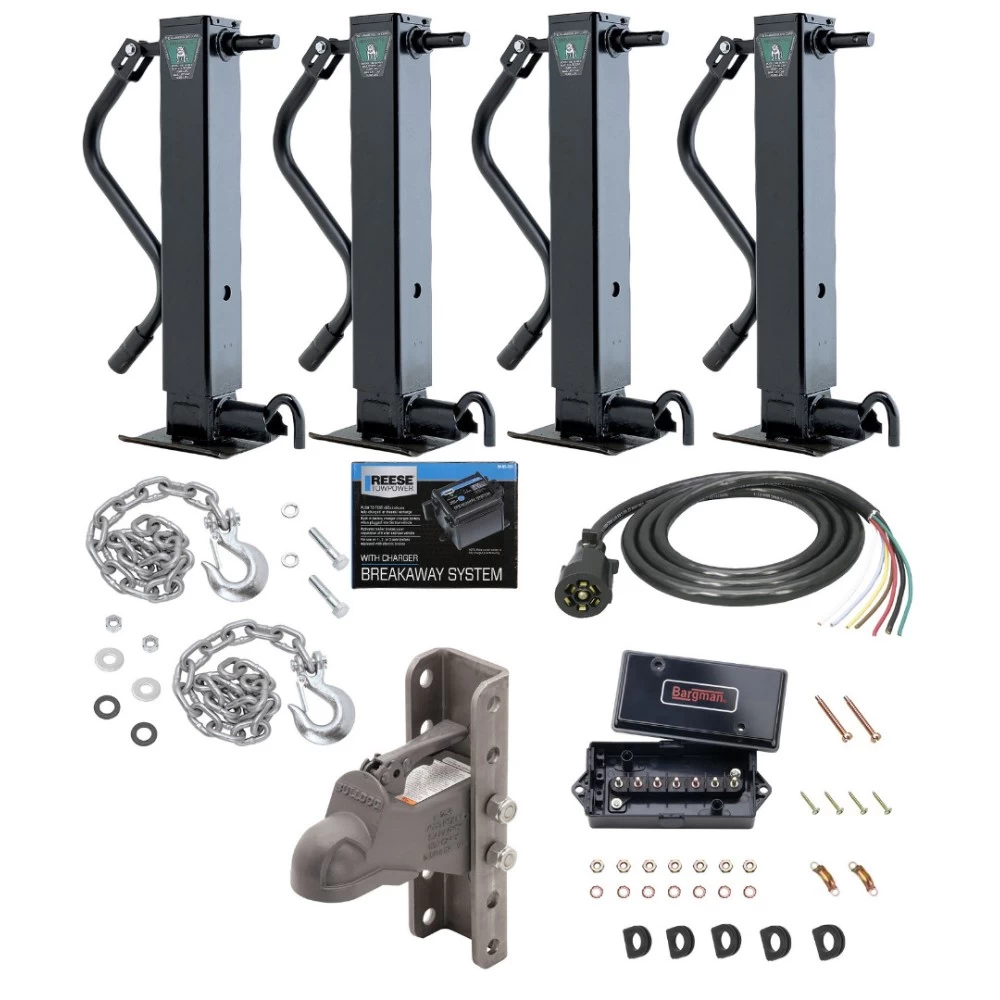

Bleacher1 Trailer Jack Package 12K Rating Per Jack w/ Breakaway, 7-Way Wiring, Channel Coupler, Junction Box and Chains

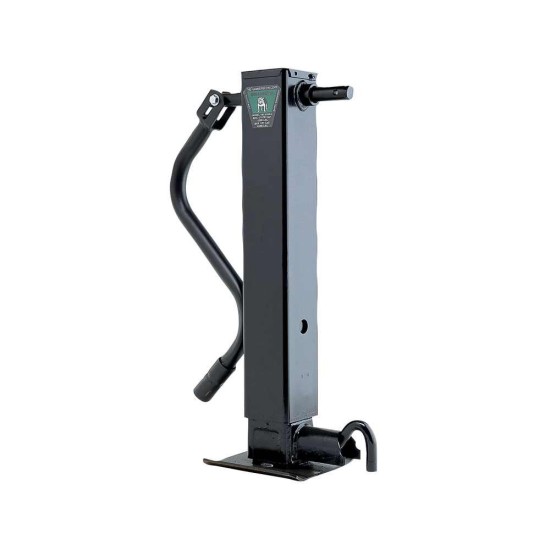

Model: 182804x4 50-67-005 14-715810 50-85-320 A2565C0317 49151Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack is the BIG reason why BULLDOG has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All BULLDOG 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
- 4" square tubing, 7-gauge superior alloy steel
- Painted outer tube, and drop leg
- Drop leg option with 5 positioning holes
- Easy-access gear box with grease fitting for routine maintenance
- Spring return drop leg or non-spring return drop leg
- 12.5" screw travel, 13.5" of additional adjustment with drop leg
- Front facing drop leg plunger pin or side facing drop leg plunger pin
- Painted (with or without labels) or powder paint optional
- Sidewind models - 1:1.5 gear ratio
7-way plastic trailer connector molded to heavy duty 7-way insulated cable. Made with self-cleaning contacts and molded to encapsulate terminals and wires to form one weather resistant, not-corrosive assembly. Primary wire gauges within the insulated cable are: Black and White-10 gauge, Blue-12 gauge, Brown-Red-Green-Yellow-14 gauge. Molded connector can be used with thermo-plastic or metal 7-way car end connectors. Various length and combinations are available.
Provide a fast, simplified way of connecting wires from the trailer connector to the trailer wiring. The box, complete with 5 wire enter/exit ports, includes hardware, rubber grommets, and features external mounting flanges. Dimensions: 3 1/4" x 6 1/2" x 2 1/4"
Now with 3 versatile mounting options! Great for gooseneck trailers.
- Battery Box
- Battery (5 amp/hr)
- Tekonsha Breakaway Switch, 48"
- Charger
Designed for utility, horse/livestock, cargo, and construction trailer applications, BULLDOG Couplers are the strongest in the industry. The patented cast head "Wedge-Latch" coupler design is offered in heavy-duty, A-frame, and convenient adjustable height models. Adjustable couplers assure level operation for trailers when pulled by a variety of different vehicles. The replaceable latching hardware allows for longer service life.
- Quick and easy to engage
- Strong and secure on the road
- Patented Wedge-Latch ball clamp design
- Quick to hook up and disconnect
- In compliance with SAE standard J684
Regardless of how far you’re planning to travel, be it across town or across the country, you’ll need to be sure you have your safety chains from REESE® securely in place. Safety chains - which are required by law - are usually link chains that connect the rear of your tow vehicle to the front of your trailer. As their name states, these chains are a safety measure when towing, adding an extra layer of connection protection in case your trailer should become uncoupled from your towing setup. With REESE safety chains, you can tow with confidence, knowing your towing setup is protected against the ‘what ifs’. REESE, making the journey as enjoyable as the destination.
- 44 In. Length
- 20,000 lbs. Capacity
- Yellow Zinc Finish
- Required by law in most states
$1,270 00 $1,518.26 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,518.26 $1,270 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 182804x4 50-67-005 14-715810 50-85-320 A2565C0317 49151
- Includes: Trailer Rebuild Package with Jacks, Couplers and Wiring
