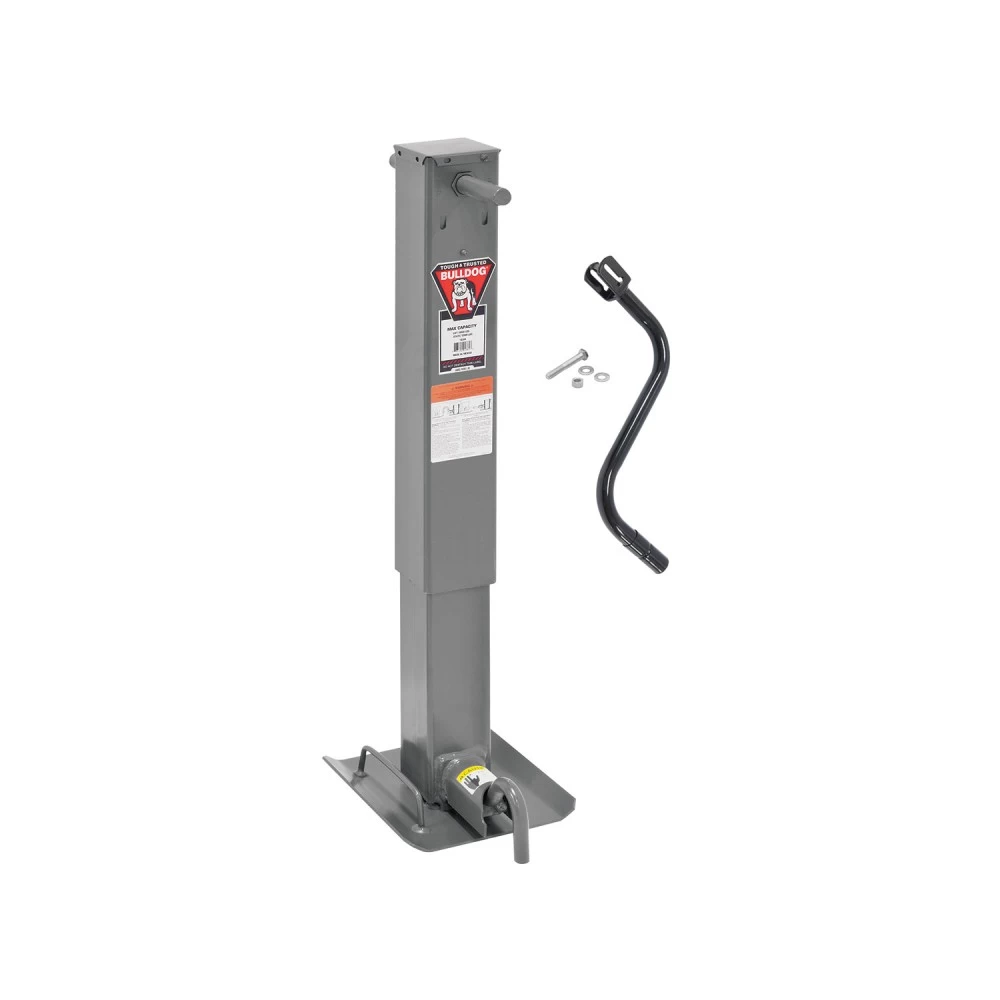

Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Crank Non Spring Return

Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Crank Non Spring Return
Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Crank Non Spring Return
$289.99
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 182404

Applies to this product only

Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack is the BIG reason why BULLDOG has carried the load in agricultural,  construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All BULLDOG 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.

  • 4" square tubing, 7-gauge superior alloy steel

  • Painted outer tube, inner tube, and drop leg

  • Drop leg option with 5 positioning holes

  • Easy-access gear box with grease fitting for routine maintenance

  • 12.5" screw travel, 13.5" of additional adjustment with drop leg

  • Painted (with or without labels) or powder paint optional

  • Limited 5-year warranty

  • ASABE Compliant



Specifications:

  • Support Capacity: 12,000 lbs.

  • Lift Capacity: 10,000 lbs.

  • Retracted Bracket Height: 27.4"

  • Extended Bracket Height: 53.3"

  • Travel/Lift: 12.5"

  • This Jack is intended to be welded on directly onto your application

  • Non Spring Return Drop Leg w/ heavy-duty base

  • Drop Leg offers 13.50" of additional adjustment

  • Drop Leg pull pin is on the side (same side as the handle)

  • Crank is included

  • Sidewind model -  1:1.5 gear ratio

  • 4" Tubing width



    For a companion Jack to be used in tandem with this Jack please use part number 182411

Specification
Jack Style Direct Weld HD
Finish Gray
Static Capacity 12000
Lift Capacity 10000
Lift Style Sidewind
Travel 12.5"
Retracted 27.4"
Extended 53.3"
Clearance Varies
Tubing Width 4"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Drop leg jack with standard disc foot. 13.5" of addi- tional drop leg extension. Drop leg pull pin to the SIDE. Crank included.
Spring Return No
