Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift

Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift

Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift
Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift
Home Trailer Parts Trailer Jacks Heavy Duty Trailers
0 reviews - Write a review

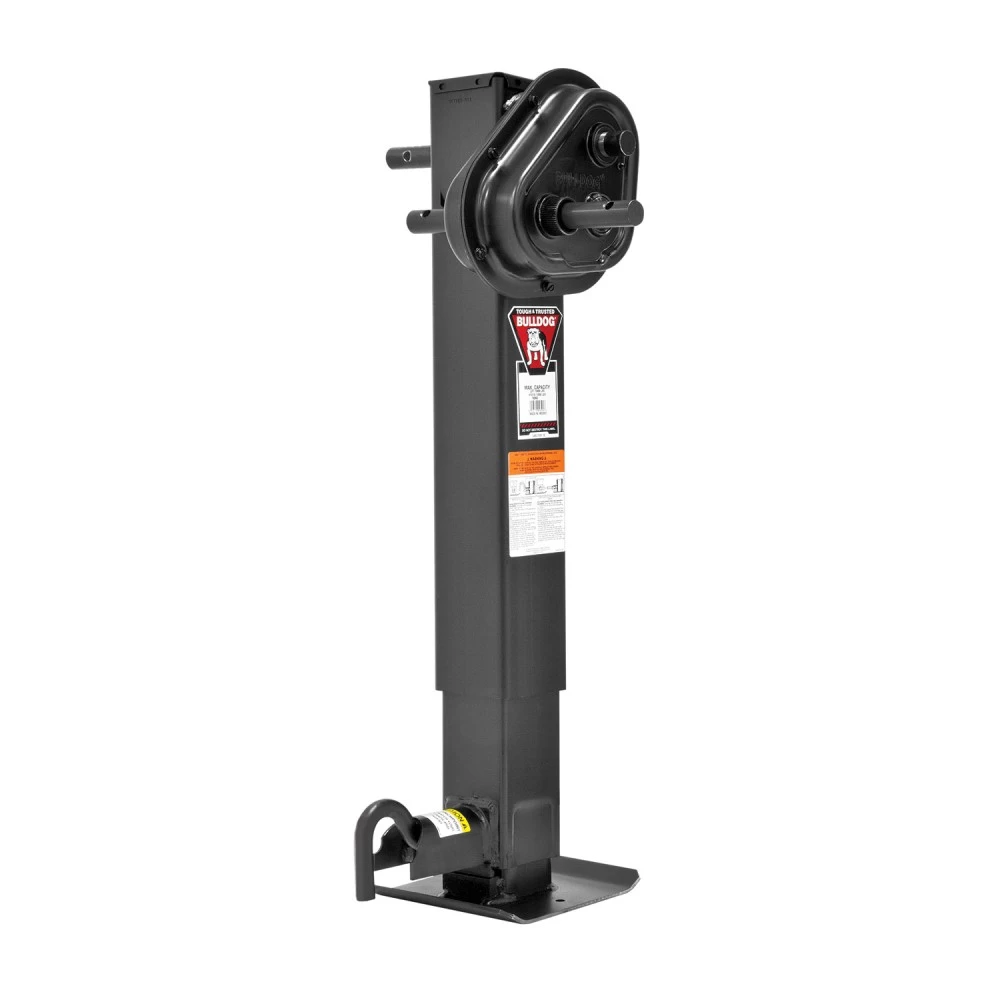

Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift
$449.99
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 183903
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.

BULLDOG’s 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully  loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting traditional gearbox 29 turns per 1" of travel. In high gear, the  cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.

  • State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads

  • Designed for today’s standard agricultural,  construction and industrial trailer applications.

  • User friendly design makes operation smooth  and easy

  • Drop Leg increases overall extension

  • Engineered alloys for enhanced strength, stability and sideload capability

  • Painted outer tube, inner tube, and drop leg.



Specifications:

  • Support Capacity: 12,000 lbs.

  • Lift Capacity: 10,000 lbs.

  • Retracted Height: 29.5"

  • Extended Height: 55.6"

  • Travel/Lift: 12.5"

  • Spring Return Drop Leg allows 13.5” of additional adjustment

  • Standard disc foot included

  • Drop Leg Pull Pin is on the front

  • Crank Sold Separately

  • 4" Tubing width



This Jack can be paired with the Bulldog 2-Speed Electric Powered Drive Motor Kit, please use part number 1824180100. This is a 2-Speed Motor Kit.

Specification
Jack Style Direct Weld HD
Finish Black
Static Capacity 12000
Lift Capacity 10000
Lift Style Sidewind
Travel 26"
Retracted 29.5"
Extended 55.6"
Clearance Varies
Tubing Width 4"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts 2-Speed, drop leg with standard disc foot. 13.50" additional drop leg extension. Drop leg pull pin to the FRONT. Painted outer tube, inner tube, and drop leg. Crank sold separately.
Spring Return Yes
