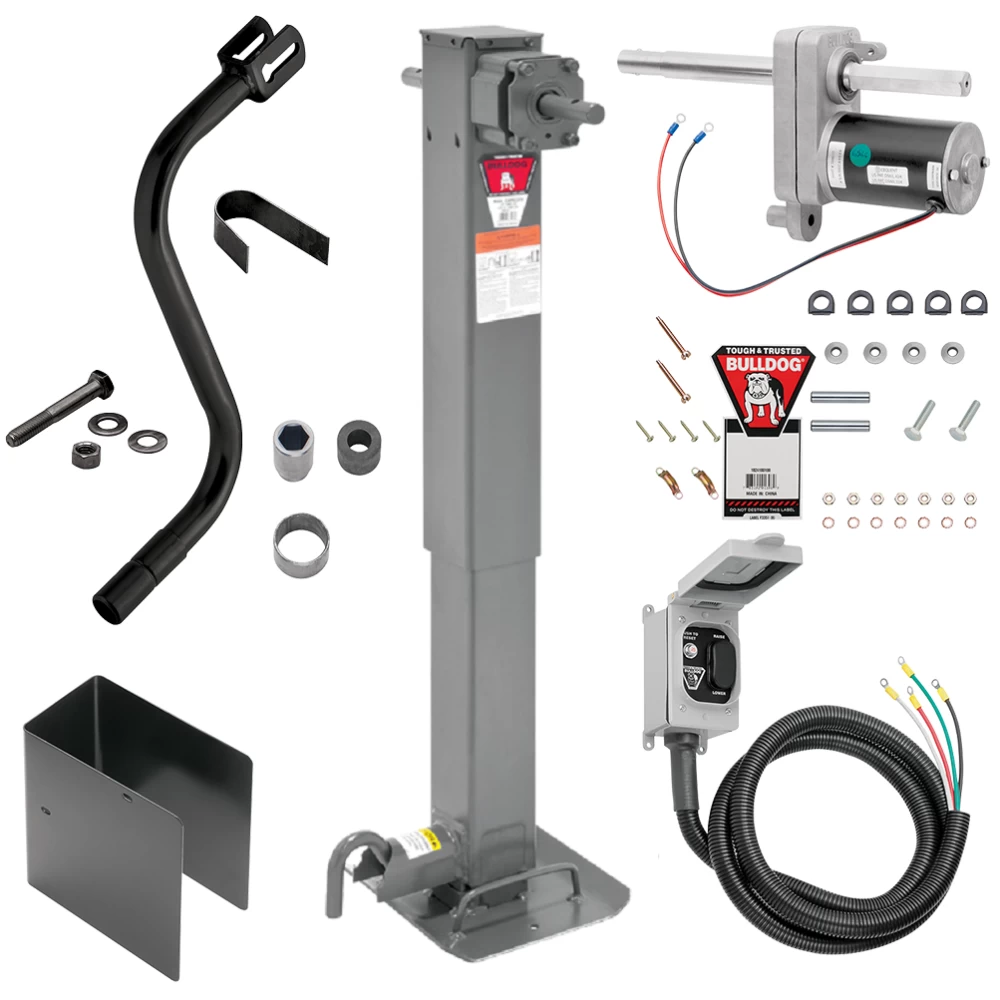

Bulldog 2 Speed 12K Trailer Jack Planetary Gearbox Non Spring Return Drop Leg Front Plunger Pin w/o Crank, Bulldog Electric Motor Powered-Drive Kit, Manual Override Crank
- Stock: In Stock
- Brand: Bulldog
- Model: 183416 1824180100 1400920383
Bulldog 2-Speed Planetary Gearbox Trailer Jack and Electric Motor Bundle: Elevate Your Towing Experience
Upgrade your trailer with the Bulldog 12,000 lbs Trailer Jack - 183416, equipped with a 2-Speed Planetary Gearbox and a front-facing plunger pin. This is perfectly paired with the Bulldog Electric Motor Powered-Drive Kit for 2-Speed Jacks - Part Number 1824180100. Designed for versatility, this bundle is ideal for a variety of trailers, including gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers. Added convenience is provided with the Manual Override Crank.
Bulldog Trailer Jack - 183416: Durability and Convenience
Constructed from durable 7-gauge alloy steel with a weather-resistant finish, this jack is built for heavy-duty use.
- 7-gauge superior alloy steel construction for unmatched durability.
- Painted outer tube and drop leg for corrosion resistance.
- Adjustable drop leg with 5 positioning holes for flexible use.
- 2-Speed Planetary Gearbox for efficient and easy lifting.
- Front-facing plunger pin for ease of access and convenience.
Compliant with ASABE S485 standards, ensuring reliability and quality.
Technical Specifications:
- Total Travel: 26"
- Manual Lift Capacity: 10,000 lbs
- Electric Capacity: 7,500 lbs with Bulldog Electric Motor Powered-Drive Kit
- Static Support Capacity: 12,000 lbs
Bulldog Electric Motor Powered-Drive Kit: Enhanced Efficiency
Improve your trailer jack's lifting capability with this quiet, efficient, and maintenance-free electric drive.
- Specifically designed for Bulldog Two-Speed Jacks with Planetary Gearbox.
- Compact and weatherproof for reliable performance.
- Manual operation option for emergency use.
Transform your trailer operations with the Bulldog 2-Speed Planetary Gearbox Trailer Jack and Electric Motor Bundle. For superior performance and peace of mind, contact us to order this leading-edge solution.
Specification | |
Jack Style | Direct Weld HD |
Finish | Gray |
Static Capacity | 12000 |
Lift Capacity | 10000 |
Electric Lift Capacity | 7500 |
Lift Style | Sidewind |
Travel | 26" |
Retracted | 29.5" |
Extended | 55.6" |
Clearance | Varies |
Tubing Width | 4" |
Leg | Drop Leg |
Swivel | No |
Foot | Footplate |
Jack Shape | Square |
Description Facts | 2-Speed, drop leg with standard disc foot. 13.50" additional drop leg extension. Drop leg pull pin to the FRONT. Painted outer tube, inner tube, and drop leg. Manual Crank included. In Electric Mode, Lift Capacity is 7,500 per jack |
Spring Return | No |
