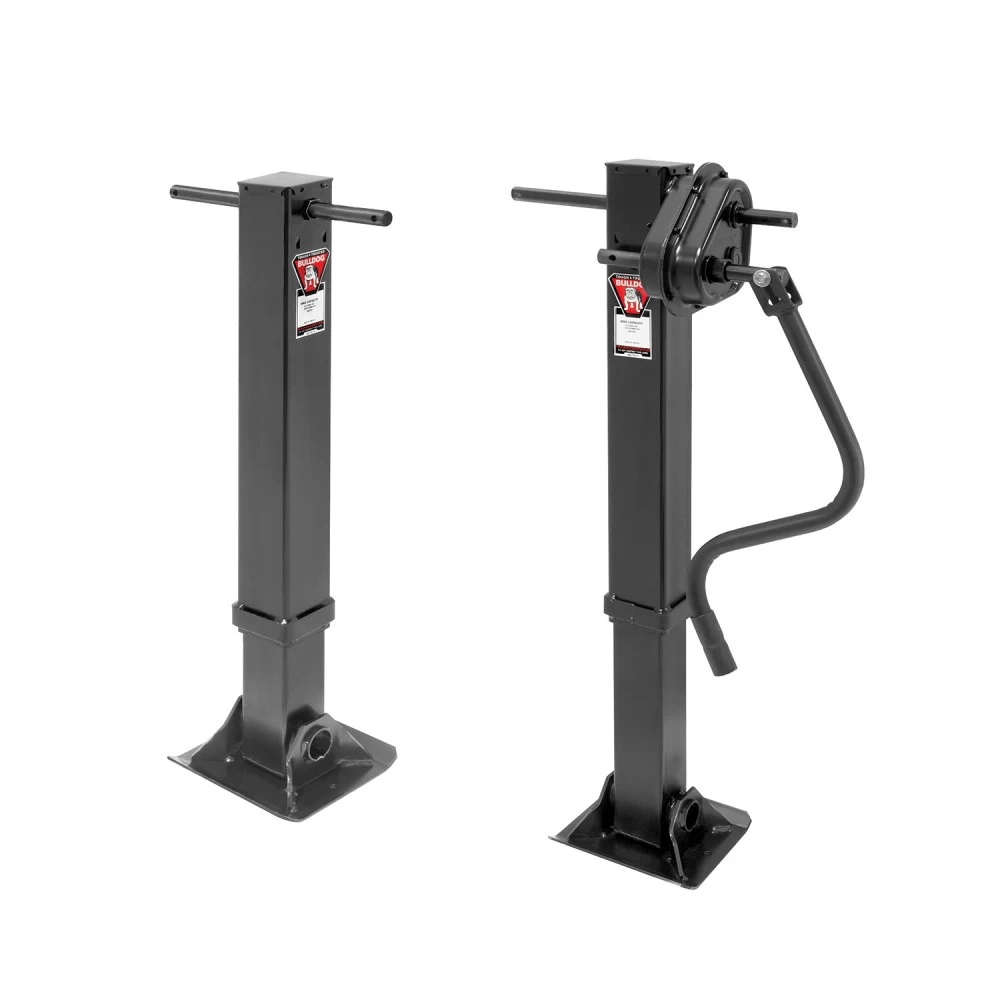

Bulldog 2-Speed 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift - Weld-On w/ Crank

Bulldog 2-Speed 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift - Weld-On w/ Crank

Bulldog 2-Speed 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift - Weld-On w/ Crank
Bulldog 2-Speed 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift - Weld-On w/ Crank
Home Trailer Parts Trailer Jacks Heavy Duty Trailers
0 reviews - Write a review
Bulldog 2-Speed 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift - Weld-On w/ Crank
$886.76
  • Stock: Pre-Order
  • Brand: Bulldog
  • Model: 500153
Pre-Order
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

Bulldog HEAVY DUTY 2-SPEED TANDEM LANDING GEAR is Ideal for horse, livestock and heavy duty trailers.

Weld-On Mount 2-Speed & Single Speed Jacks & Crank. (Cross Shaft Not Included)

Features

  • Easy-access grease fittings

  • Heavy duty leg band for added strength. Sand shoe designed to maximize connection strength

Specifications:

  • AAR & TTMA rated (all values per pair):

    • 45,000 lbs. lifting capacity (@ 100 ft. lbs input torque)

    • 90,000 lbs. static capacity

  • Competitive Cranking ratios:

    • Low speed gear 27.3 turns per inch.

    • High speed gear 4.5 turns per inch

  • 17" of Travel

  • Retracted Height: 31.7"

  • Extended Height: 48.7

  • High efficiency, double lead screw

  • Heavy duty, self-leveling screw

  • Crank included - cross shaft sold separately

  • Black painted finish

  • Industry leading 5-year warranty

Specification
Jack Style Direct Weld HD
Finish Black
Static Capacity 90000
Lift Capacity 45000
Lift Style Sidewind
Travel 17"
Retracted 31.7"
Extended 48.7"
Clearance Varies
Tubing Width 4"
Leg Fixed Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Tandem Non Drop Leg Landing Gear - Set includes Direct Weld 2-Speed & Single Speed Jacks & Crank. Cross Shaft not included.
Spring Return No
