Bulldog 2,000 lbs. Round A-Frame Trailer Jack Topwind 15" Lift 6" w/ 2" Footplate Stand

Bulldog 2,000 lbs. Round A-Frame Trailer Jack Topwind 15" Lift 6" w/ 2" Footplate Stand

Bulldog 2,000 lbs. Round A-Frame Trailer Jack Topwind 15" Lift 6" w/ 2" Footplate Stand
Bulldog 2,000 lbs. Round A-Frame Trailer Jack Topwind 15" Lift 6" w/ 2" Footplate Stand
Home Trailer Parts Trailer Jacks A-Frame Style Trailers
0 reviews - Write a review

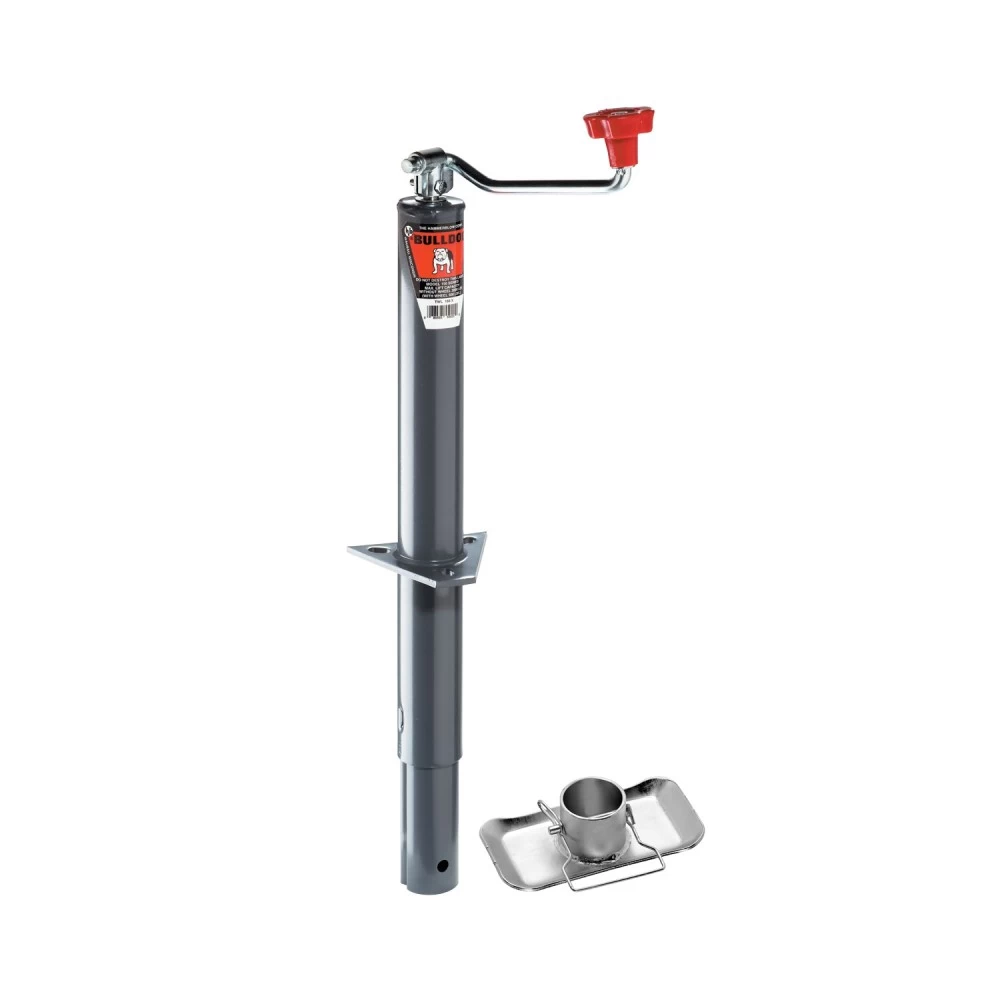

Bulldog 2,000 lbs. Round A-Frame Trailer Jack Topwind 15" Lift 6" w/ 2" Footplate Stand
$77.56
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 155022 1400700340
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Grey painted outer and inner tube

  • Limited 5-year warranty



Specifications:

  • Lift Capacity: 2,000 lbs.

  • Retracted Bracket Height: 8.80"

  • Extended Bracket Height: 23.80"

  • Travel/Lift: 15"

  • Clearance: 12.20" from bracket to top

  • Weld-on/bolt-on bracket works with any standard A-Frame mount

  • Handle Radius: 6.65"

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

  • 6-3/16" Extended Footplate w/Lock Pin Included

  • Footplate Specs:
  • Height: 2-1/10"
  • Capacity: 5,000 lbs
Specification
Jack Style A-Frame
Finish Gray
Static Capacity 2000
Lift Capacity 2000
Lift Style Topwind
Travel 15"
Retracted 8.80"
Extended 23.80"
Clearance 12.20"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel No
Foot Footplate
Jack Shape Round
