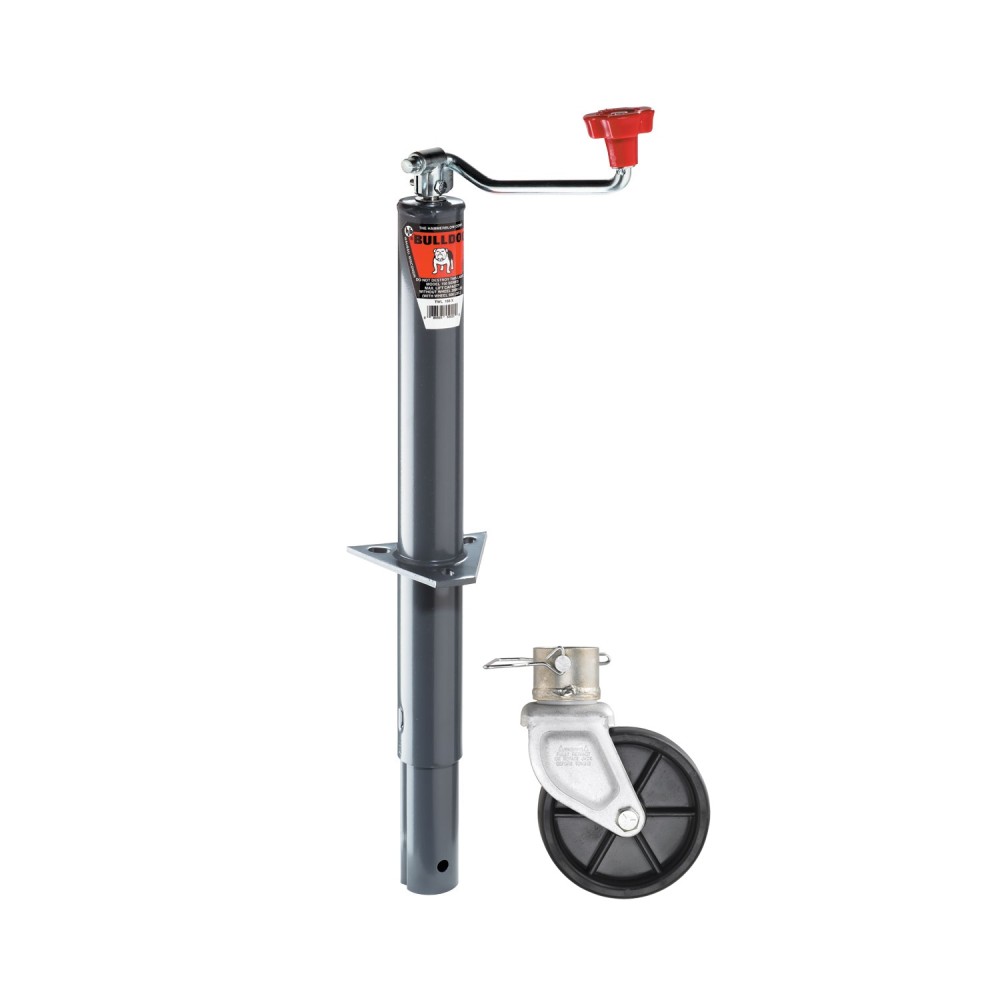

Bulldog 2,000 lbs. Round A‑Frame Trailer Jack Topwind 15" Lift 6" w/ 6" Poly Caster Wheel
Model: 155022 1400750340BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Grey painted outer and inner tube
-
Limited 5-year warranty
Specifications:
-
Lift Capacity: 2,000 lbs.
-
Retracted Bracket Height: 8.80"
-
Extended Bracket Height: 23.80"
-
Travel/Lift: 15"
-
Clearance: 12.20" from bracket to top
-
Weld-on/bolt-on bracket works with any standard A-Frame mount
-
Handle Radius: 6.65"
-
Inner tube diameter: 2"
-
Outer tube diameter: 2-1/4"
-
Wheel Height: 6"
Capacity: 1,200 lbs
Includes Pull Pin Assembly
Clear Zinc Finish
$85 15
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$85 15
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $21.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 155022 1400750340
- Includes: 2K A-Frame Jack + Caster Wheel
Description
Get Expert Help
Bulldog 2,000 lbs. Round A-Frame Trailer Jack Topwind 15" Lift 6" w/ 6" Poly Caster Wheel Install Notes
Installation Instructions for Tongue Jacks
Tools Required:
- Ratchet
- Socket set
- Torque wrench
Step-by-Step Instructions:
General Installation Notes:
- Ensure there will be no interference from the tow vehicle, tongue, ground, or mounted accessories while stationary or in motion.
- Check for interference in all positions, including handle swing and swivel positions, before and after installation.
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Position the mounting bracket below the tongue with the flat surface against the tongue.
- Secure with locknuts and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Confirm the correct mounting hole pattern for your tongue size. The gap between the mounting bolts and tongue must not exceed 1/16".
- Place the jack against the tongue and position the mounting straps on the opposite side.
- Insert four bolts through the mounting bracket and straps, ensuring the upper bolts rest on the tongue top and the lower bolts are within 1/16” from the bottom.
- Secure with locknuts and torque to 25 ft-lbs.
- Verify clearance of the handle, trailer light cables, and coupler.
Snap Ring/Bolt-Through Instructions:
- Snap Ring Models:
- Place the jack bracket over the mount and fully seat the snap ring into the groove.
- Bolt-Through Models:
- Insert the jack bracket into the recessed opening on the mount. Place the small end of the bushing into the jack bracket and onto the bolt.
- Tighten the locknut until there is minimal movement in the bushing.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- Welding must be performed by an AWS-certified welder.
- Align the jack and foot (if equipped) with the coupler. Use a 3/16” fillet weld.
- Bolt-On: Secure with three 3/8-16 grade-5 bolts and washers, torqued to 15-20 ft-lbs.
- Weld the recommended support plate to the bottom of the trailer frame with a 3/16” fillet weld.
Direct-Mount Instructions:
- Place the jack at the desired location and weld 1” at two locations on each side using a 3/16” fillet weld.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Never exceed the rated capacity of the jack, footplate, or caster wheel.
- Avoid applying side forces as they may cause jack failure.
- Ensure locking mechanisms are fully engaged before operation.
- Replace worn or damaged parts before use.
- Do not attempt to adjust the drop foot or leg under load.
Maintenance:
- Side-Wind Models:
- Lubricate internal gearing and bushings with automotive grease.
- Apply light oil to the handle unit at both sides of the tube.
- Top-Wind Models:
- Apply light oil to the screw stem.
- In marine environments:
- Flush the jack assembly with fresh water and reapply lubricant.
Warranty Information:
This product is covered under a limited warranty. For complete warranty details and exclusions, refer to the original product documentation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, refer to the manufacturer's full documentation.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow these instructions may result in property damage, serious injury, or death.
