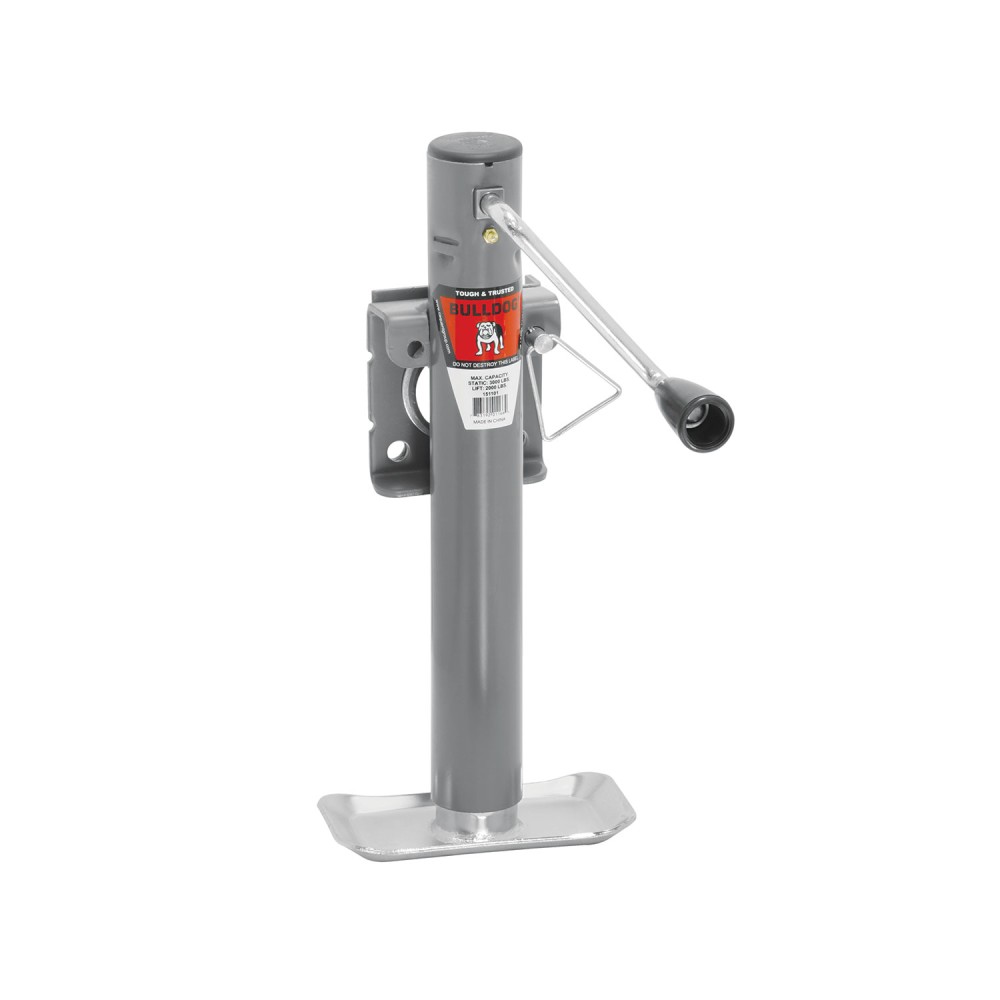

Bulldog 2,000 lbs. Round Snap‑Ring Swivel Trailer Jack Sidewind 10" Lift w/ Footplate
Model: 151101BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
Smooth, comfortable, ergonomic design
Dependable vertical and side load capacity
Proven reliability for long term use at rated loads
Precision fitted parts for extra stability
Grey painted outer and zinc inner tubes
Weld-on L-bend swivel bracket assembled
Limited 5-year warranty
Specifications:
Lift Capacity: 2,000 lbs.
Retracted Bracket Height: 11" from bracket to bottom
Extended Bracket Height: 21"
Travel/Lift: 10"
Clearance: 6.40" from bracket to top
Weld-On L-bend swivel bracket assembled
1/2" diameter plunger pin
Includes footplate
Outer tube diameter: 2-1/4"
Inner tube diameter: 2"
Handle Radius: 6.65"
$88 35 $105.08 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$105.08 $88 35
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 151101
- UPC: 783192011664
- Includes: Round Snap-Ring Swivel Jack
Description
Get Expert Help
Bulldog 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Sidewind 10" Lift w/ Footplate Install Notes
Installation Instructions for Tongue Jacks
Part Numbers:
- Not specified in the provided text.
Tools Required:
- Torque wrench (set to 25 ft. lbs.)
Step-by-Step Instructions:
General Installation Guidelines:
- Confirm no interference with the tow vehicle, tongue, ground, or mounted accessories while stationary or in motion.
- Verify clearances for handle swing and swivel positions before and after installation.
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert supplied bolts into the corresponding holes.
- Position the mounting bracket below the tongue, ensuring the flat surface is against it.
- Secure using locknuts and torque to 25 ft. lbs.
Bolt-On Mounting Bracket Instructions:
- Ensure the mounting hole pattern matches your tongue size. The gap between mounting bolts and tongue should not exceed 1/16".
- Place the jack against the tongue and position the mounting straps on the opposite side.
- Insert the 4 bolts through the mounting bracket and mounting straps. Secure with locknuts and torque to 25 ft. lbs.
- Check clearance for the handle, trailer light cables, and coupler.
Snap Ring/Bolt-Thru Installation:
- For snap ring models, position the jack bracket over the mount and fully seat the snap ring in the groove.
- For bolt-thru models, insert the jack bracket into the recessed opening, align the bushing, and tighten the locknut until minimal movement remains.
A-Plate Mounting Instructions:
- Use an AWS-certified welder for all welding.
- Align the jack and coupler, then weld using a 3/16" fillet weld.
- Secure the A-plate to the coupler with 3/8-16 Grade 5 bolts torqued to 15–20 ft. lbs.
- Weld the recommended support plate to the trailer frame using a 3/16" fillet weld.
Direct Mount Instructions:
- Position the jack at the desired location.
- Weld 1" in two locations on each side using a 3/16" fillet weld.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove the drop foot or caster before towing.
- Avoid exceeding the rated capacity marked on the product.
- Minimize side forces to prevent jack failure.
- Replace any worn or damaged parts before use.
Maintenance:
- Lubricate internal gears and bushings annually with automotive grease.
- Apply lightweight oil to handle units and moving parts.
- For marine use, flush the jack with fresh water and reapply lubricants.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
