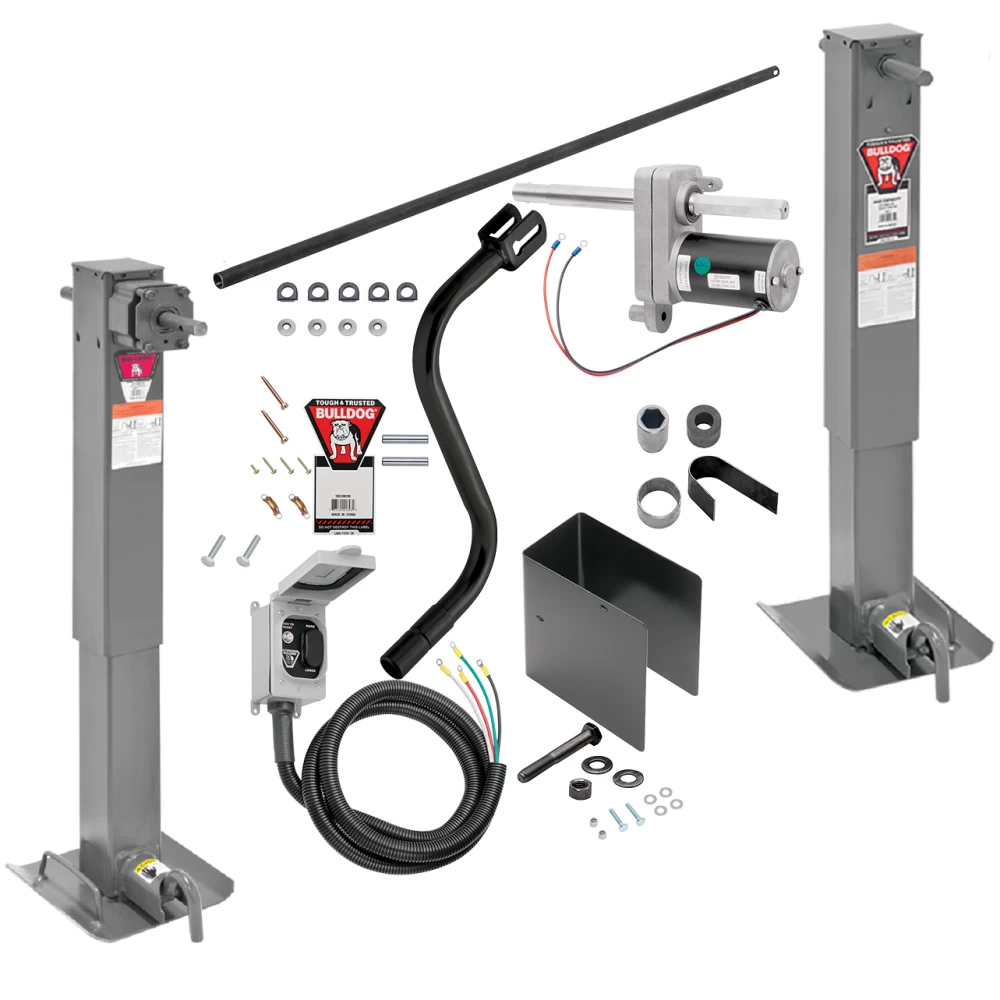

Bulldog 24K 2 Speed Electric Landing Gear Set Two Speed Trailer Jack Planetary Gearbox and Companion Jack Non Spring Return Drop Leg Curbside Plunger Pin, Bulldog Electric Motor Powered-Drive Kit, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Over

Tandem 2-Speed Trailer Jacks with 24,000 lbs Capacity

Upgrade your trailer with the Bulldog Landing Gear 2-Pack - 183401 (2-Speed) and 182411, featuring non-spring return drop legs and powered by the Bulldog Electric Motor. This set-up is designed for a wide range of trailers, offering unmatched convenience and performance.

Features and Benefits:

• Constructed with robust 4" square tubing from 7-gauge alloy steel for durability.
• Coated with protective paint for corrosion resistance.
• Adjustable drop leg with 5 positioning holes for versatile use.
• Manual override crank included for operation during power outages.
• Seamless synchronization between jacks via a crosshaft for tandem operation.
• Efficient 2-Speed planetary gearbox enabling quick and easy lifting.
• Non-spring return drop leg for easy adjustment with 12.5" screw travel and 13.5" of additional adjustment.
• Curbside and roadside facing plunger pins for convenient access.
• Durable powder coat finish for extended protection.
• 1:1.5 gear ratio sidewind models for smooth cranking.

Technical Specifications:

Compliant with ASABE S485 for quality assurance and reliability.

• Total Travel: 26"
• Screw Travel: 12-1/2"
• Drop Leg Travel: 13-1/2"
• Maximum Height: 55"
• Combined Capacities: 20,000 lbs manual lift, 15,000 lbs electric lift, 24,000 lbs static support.
• 2-Speed Gearbox Ratios: Low Gear - 1" every 29 turns, High Gear - 1" every 9 turns.
• Dimensions: Retracted Height 29-1/2", Extended Height 42", Outer Tube Width 4".
• Material: 7-gauge steel.
• 5-year warranty.

Electric Motor Powered-Drive Kit - 1824180100:

Enhance jack performance with the Bulldog Electric Motor Kit, ensuring quiet, efficient operations.

• Faster and easier lifting.
• Compact design for tight spaces.
• Quiet operation and efficient power usage.
• Maintenance-free with weatherproof components.
• Manual operation option available in case of power loss.

Crosshaft Specifications:

Includes a 72-3/4" Trailer Jack Cross Shaft Tube with Slotted Ends and Hardware for tandem operation customization.

For advanced trailer operations, the Tandem Bulldog Trailer Jacks offer a superior lifting solution. Backed by a 5-year warranty, contact us at 877-869-6690 for more information or to order.
