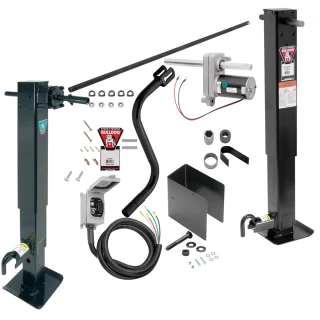

Bulldog 24K 2 Speed Electric Landing Gear Set Two Speed Trailer Jack Planetary Gearbox and Companion Jack Spring Return Drop Leg Front Plunger Pin, Bulldog Electric Motor Powered-Drive Kit, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Cr

Tandem 2-Speed Trailer Jacks with 24,000 lbs Capacity

Upgrade your trailer with our Bulldog Landing Gear 2-Pack - 183816 (2-Speed) and companion 182815, featuring spring return drop legs. Powered by the Bulldog Electric Motor, this setup is ideal for a variety of trailers, ensuring unmatched convenience and performance.

Highlights:

• Constructed from durable 7-gauge alloy steel with a 4" square tubing for robust support.
• Protective paint coating on both the outer tube and drop leg for enhanced corrosion resistance.
• Adjustable drop leg with 5 positioning holes for versatile application.
• Includes a manual override crank for operation during power outages.
• Tandem operation facilitated through a crosshaft, synchronizing both jacks with a single handle.
• Features a 2-Speed planetary gearbox for efficient lifting, with low and high gear ratios.
• Engineered for ease of gear shifting without the need for repositioning the crank.
• Spring return drop leg for easy adjustment, offering 12.5" screw travel and 13.5" additional adjustment.
• Front-facing plunger pins for user convenience.
• Durable powder coat finish for long-lasting protection.

Compliance and Specifications:

Meets ASABE S485 certification standards, ensuring quality and reliability.

• Total Travel: 26"
• Screw Travel: 12-1/2"
• Drop Leg Travel: 13-1/2"
• Maximum Height: 55"
• Manual Lift Capacity: 20,000 lbs; Electric Lift Capacity: 15,000 lbs; Static Support Capacity: 24,000 lbs.
• Gearbox Ratios: Low Gear - 1" every 29 turns; High Gear - 1" every 9 turns.
• Overall Height: Retracted - 29-1/2", Extended - 42".
• Material: 7-gauge steel; Outer Tube Width: 4".
• 5-year warranty for peace of mind.

Electric Motor Powered-Drive Kit - 1824180100:

Boost your jack's efficiency with our Electric Motor Kit, designed for quiet and swift operations.

• Fits perfectly with 2-Speed jacks, enhancing lifting operations.
• Compact and quiet design ensures seamless integration and operation.
• Weatherproof and maintenance-free, with a manual operation option available.

Crosshaft for Tandem Operation:

A 72-3/4" long Trailer Jack Cross Shaft Tube with Slotted Ends and Hardware allows for synchronized operation of both landing gears, offering flexibility for your specific needs.

Equip your trailer with the Bulldog 2-Speed Trailer Jacks for superior lifting capabilities and reliability. For more details or to place an order, contact us at 877-869-6690. Ensure your trailer is fitted with the best, backed by a comprehensive 5-year warranty.
