Bulldog 24K 2 Speed Electric Landing Gear Set Two Speed Trailer Jack Traditional Gearbox and Companion Jack Spring Return Drop Leg Curbside Plunger Pin, Bulldog Electric Motor Powered-Drive Kit, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Overri

Enhance Your Towing with Tandem 2-Speed Trailer Jacks 24K

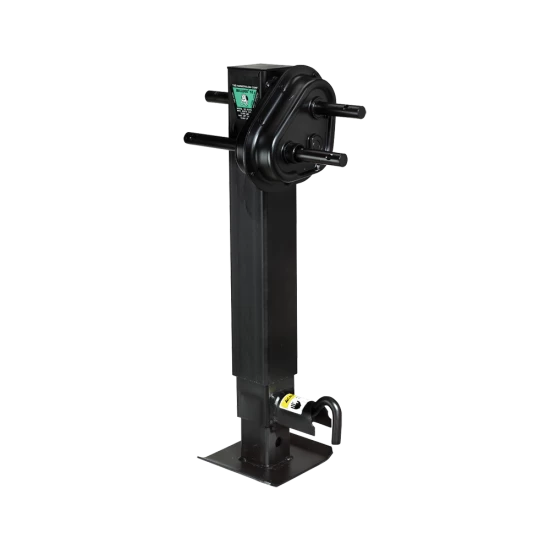

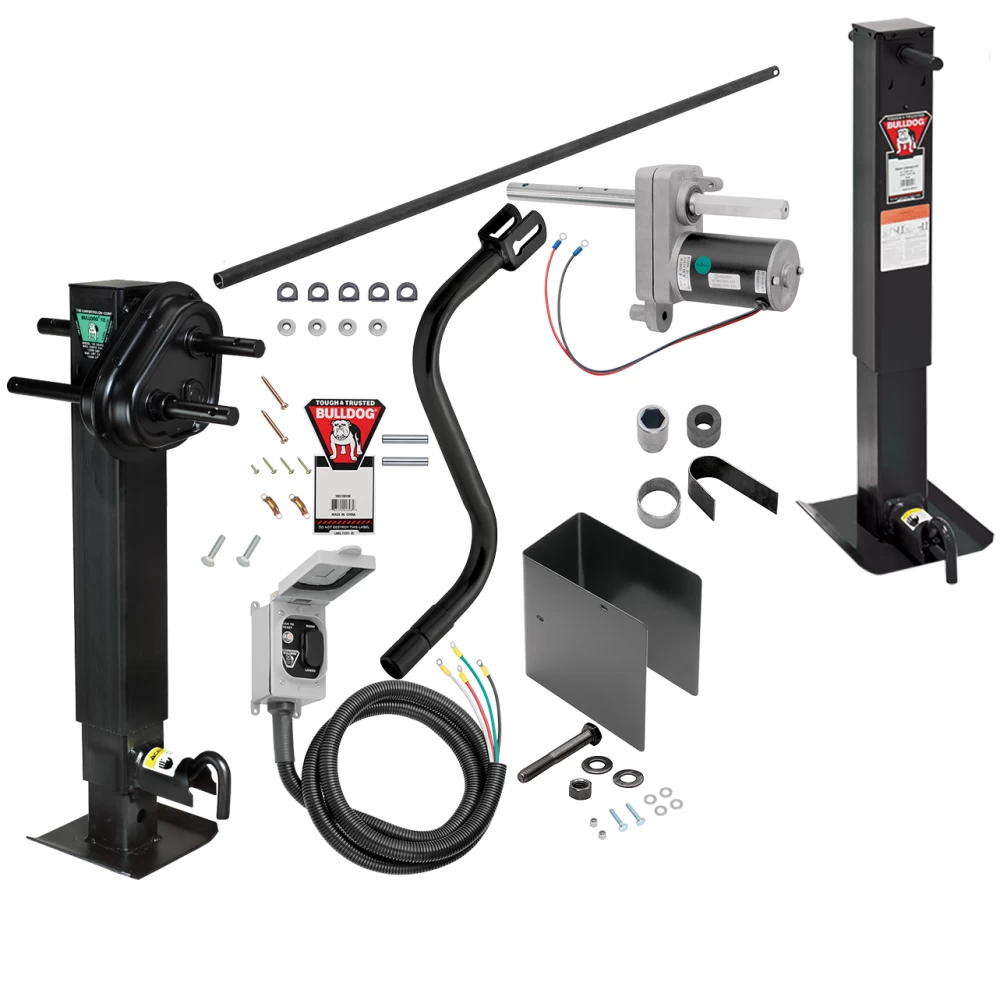

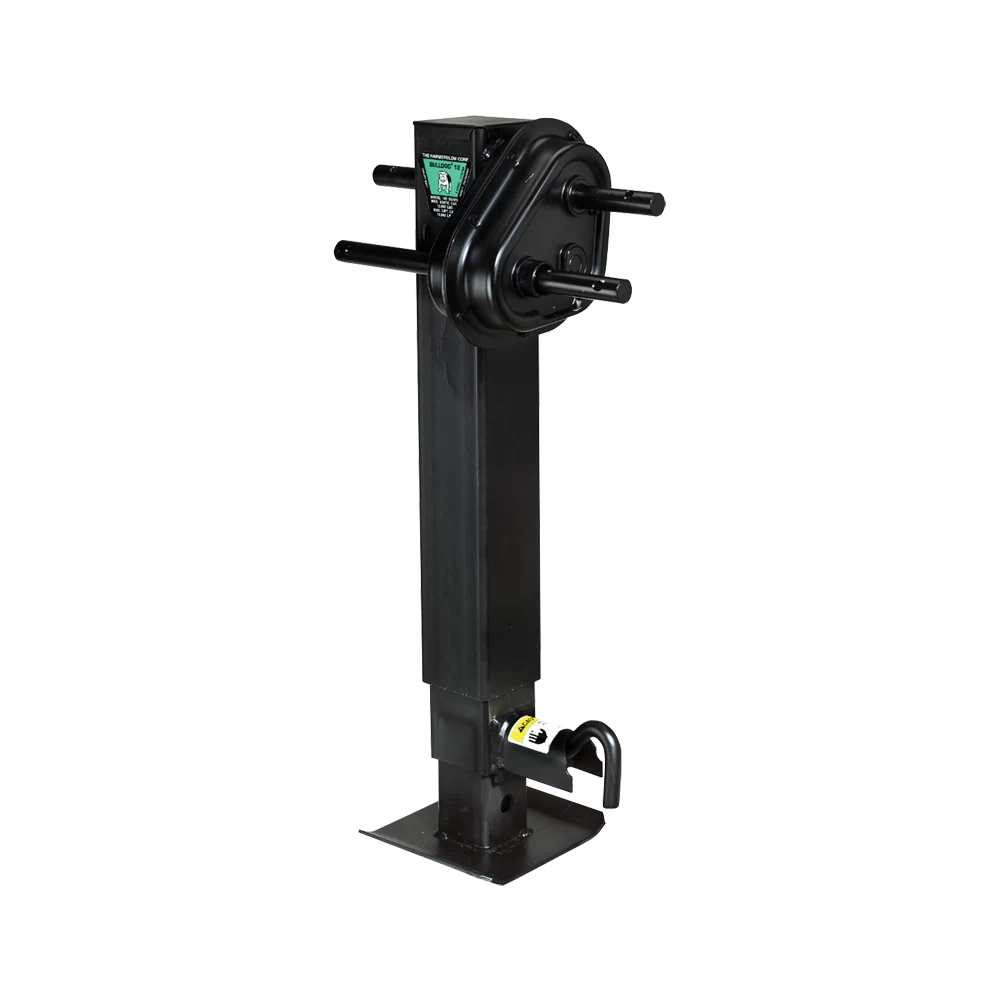

Upgrade your trailer's functionality with the Bulldog Landing Gear 2-Pack - 183902 (2-Speed) and companion 182805 with spring return drop legs, powered by the innovative Bulldog Electric Motor. This duo offers unmatched manual and electric control, tailored for operational versatility.

Robust and Reliable Bulldog Trailer Jack 2-Pack

The 183902 (2-Speed) and 182805 models boast a sturdy build in sleek black, engineered for heavy-duty use. With a lifting capacity of 20,000 lbs, static support of 24,000 lbs, and electric lift of 15,000 lbs, they're designed to meet the needs of diverse trailers, including Gooseneck, Car Hauler, Fifth Wheel, Enclosed Cargo, Utility, Horse Trailer, and Dump Trailer, supporting weights of 10001 lbs or more.

Key Features and Benefits:

• Durable Construction: Made from premium 7-gauge superior alloy steel with a protective paint coating for corrosion resistance.
• Flexible Adjustment: Adjustable drop leg with five positioning holes, featuring spring return for hassle-free operation.
• Efficient Gearbox: 2-Speed traditional teardrop gearbox allows for smooth and efficient gear shifting.
• Integrated Tandem Operation: Crosshaft connection enables single-handle operation of both jacks.
• Optimal Performance: Engineered for enhanced strength, stability, and sideload capability.
• Comprehensive Electric Motor Kit: The Bulldog Electric Motor Powered-Drive Kit ensures faster, quieter, and maintenance-free lifting.

Technical Specifications:

• Total Travel: 26"
• Screw Travel: 12-1/2" and Drop Leg Travel: 13-1/2"
• Maximum Height: 55", with a retracted height of 28.5" and extended height of 54.6"
• Outer Tube Width: 4", made from durable 7-gauge steel, finished in black
• Warranty: Backed by a reassuring 5-year warranty

Installation Note:

For optimal operation, the electric motor must be installed on the companion jack. This specific setup ensures the best performance and reliability of your Bulldog Landing Gear system.

Installation Ease and Compliance:

Experience the convenience of spring-actuated drop legs for easy retraction and ASABE S485 compliance for guaranteed quality and reliability.

For top-tier trailer performance and reliability, choose the Tandem Bulldog Trailer Jacks 2-Speed 183902 and 182805 with spring return, complemented by an electric motor kit 1824200100. This premium setup ensures strength, durability, and ease of use, all backed by a 5-year warranty.

Ready to upgrade? Contact us at 877-869-6690 to equip your trailer with the industry-leading Bulldog 2-Speed landing gear.
