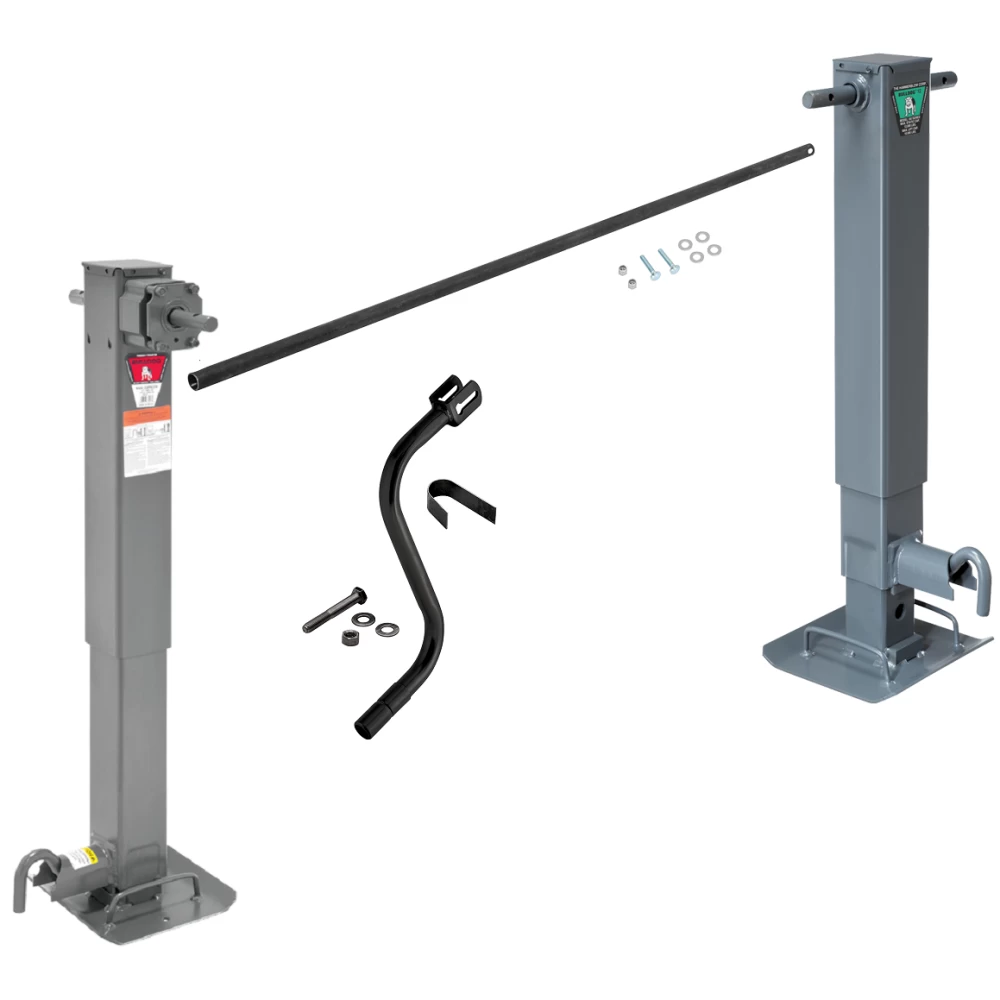

Bulldog 24K 2 Speed Landing Gear Set Two Speed Trailer Jack Planetary Gearbox and Companion Jack Non Spring Return Drop Leg Front Plunger Pin, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Crank

Bulldog Tandem 2-Speed Planetary Gearbox 24K Dual Trailer Jacks Landing Gear with Crosshaft

Transform your trailer functionality with the Bulldog 2-Speed Landing Gear 2-Pack - 183416, featuring front-facing plunger pins, along with the companion jack 182415, both with Non-Spring Return Drop Legs. The included crossdrive crosshaft CS730300 ensures smooth and synchronized lifting for a variety of trailer types.

The Bulldog 2-Speed Trailer Jack 183416, with a planetary gearbox, and its companion 182415, are built for uncompromising performance. Constructed from sturdy steel and finished to resist the elements, these jacks offer dependable support for your heavy-duty trailers.

Key Features:

• Heavy-Duty 4" Square Tubing: Crafted from 7-gauge alloy steel for durability.
• Protective Paint: Coating on the outer tube and drop leg for corrosion resistance.
• Adjustable Drop Leg: Features five positioning holes for customizable setup.
• Tandem Operation: Both jacks can be operated with one handle thanks to the crosshaft.
• 2-Speed Planetary Gearbox: Offers easy and fast cranking, with a best-in-class high gear speed.
• Effortless Gear Shifting: Gear switching is made simple with the planetary gearbox design.
• Engineered Alloys: Provides increased strength, stability, and side-load capacity.
• Non-Spring Return Drop Leg: Includes 12.5" of screw travel and 13.5" of additional adjustment.
• Front-Facing Plunger Pins: Positioned for ease of use on both jacks.
• Powder Coat Finish: Ensures the jacks are protected for extended use.
• Sidewind Models: Feature a 1:1.5 gear ratio for smooth cranking efficiency.

Quick Drop Leg Deployment:

Pull the pin for a drop leg that lowers quickly and easily, without the need for manual force.

ASABE S485 Compliant:

BULLDOG products are certified to meet ASABE S485 standards, offering quality and reliability.

Landing Gear Technical Specifications:

• Total Travel: 26"
• Screw Travel: 12-1/2"
• Drop Leg Travel: 13-1/2"
• Manual Lift Capacity: 20,000 lbs
• Static Support Capacity: 24,000 lbs
• Overall Height: Retracted 29-1/2", Extended 42"
• 2-Speed Gearbox Ratios: Low Gear at 27 turns per inch, High Gear at 9 turns per inch.
• Outer Tube Specs: 4" width, 7-gauge steel construction
• 5-year warranty for assurance and confidence in your purchase.

Crosshaft Specifications:

The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware is adjustable and ensures tandem jack operation with a single crank.

Depend on the BULLDOG 2-Speed Planetary Gearbox Trailer Jacks 183416 and 182415 for unparalleled reliability, supported by a 5-year warranty. Contact us at 877-869-6690 to supply your trailers with premium equipment. With ASABE S485 compliance, you are guaranteed strength and durability for superior performance and peace of mind.
