Bulldog 24K Electric Landing Gear Set Dual Single Speed Trailer Jacks Fixed Leg Tubular Swivel Mount w/ 2 Manual Override Cranks, Mating Female Tube Mount, Bulldog Electric Motor Powered-Drive Kit, Cross Shaft Tube w/ Slotted Ends and Hardware
$1,329.99
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 182524X2 1824200100 CS730300 005122X2
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

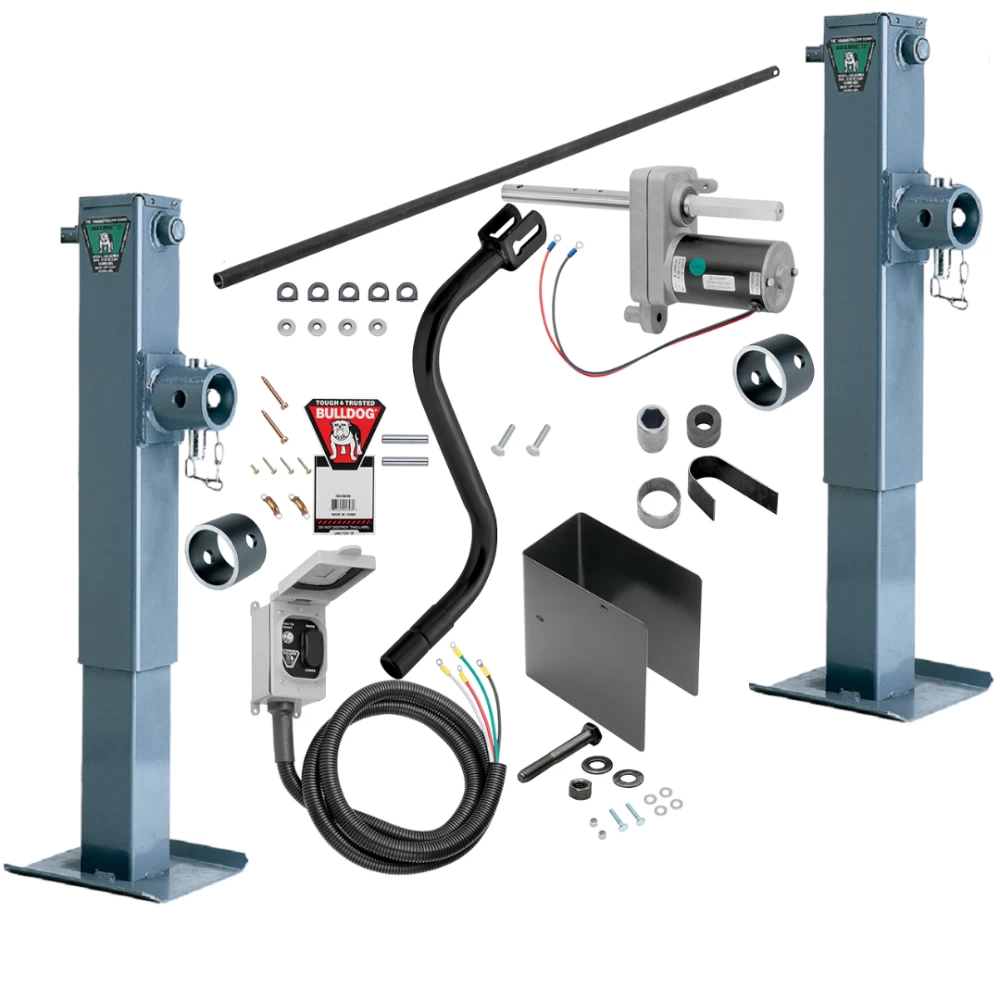

Bulldog Swiveling Tandem 24K Dual Trailer Jacks Landing Gear

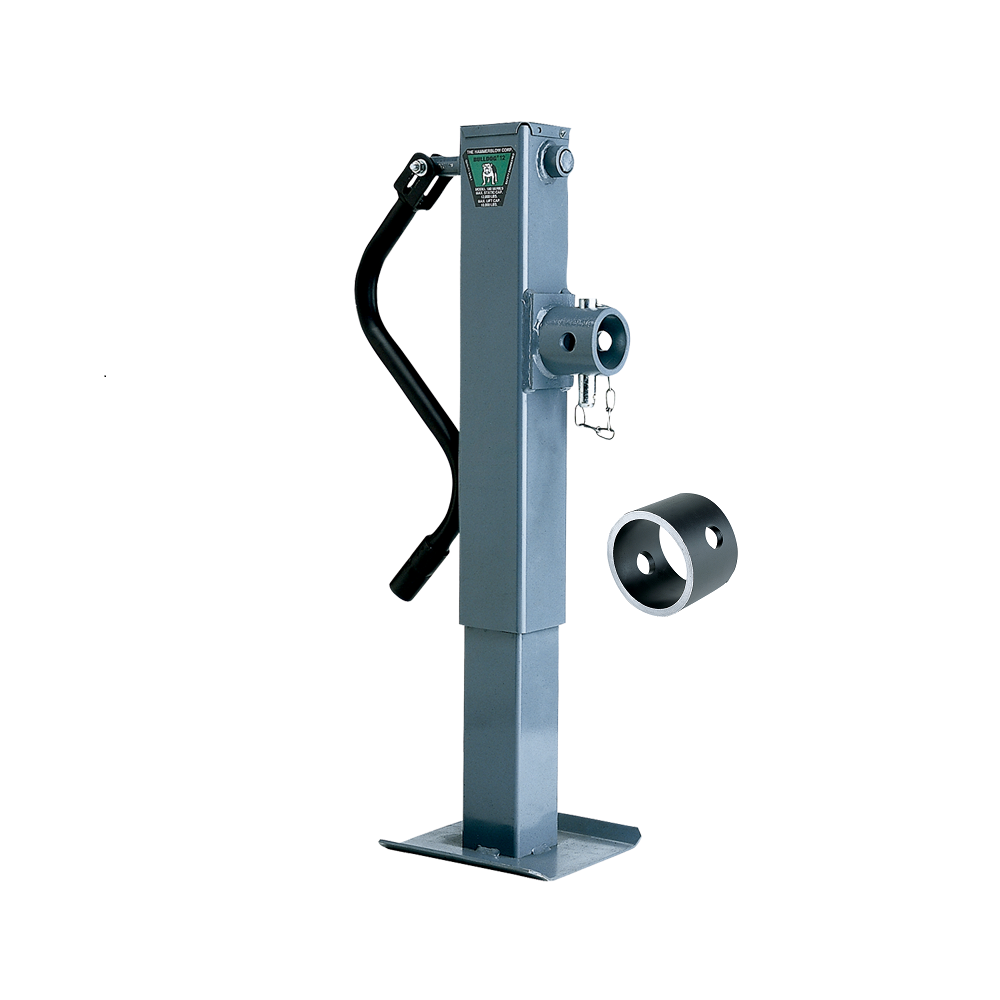

Upgrade your trailer setup with the Bulldog Landing Gear 2-Pack - 182524. This package includes fixed legs, pipe mounts, and swivel functionality, all connected by a crossdrive Crosshaft CS730300 and powered by the Bulldog Electric Motor. Ideal for a variety of trailers, this setup offers unparalleled convenience and performance.

Key Features:

  • Swivel Functionality for flexible trailer operations.

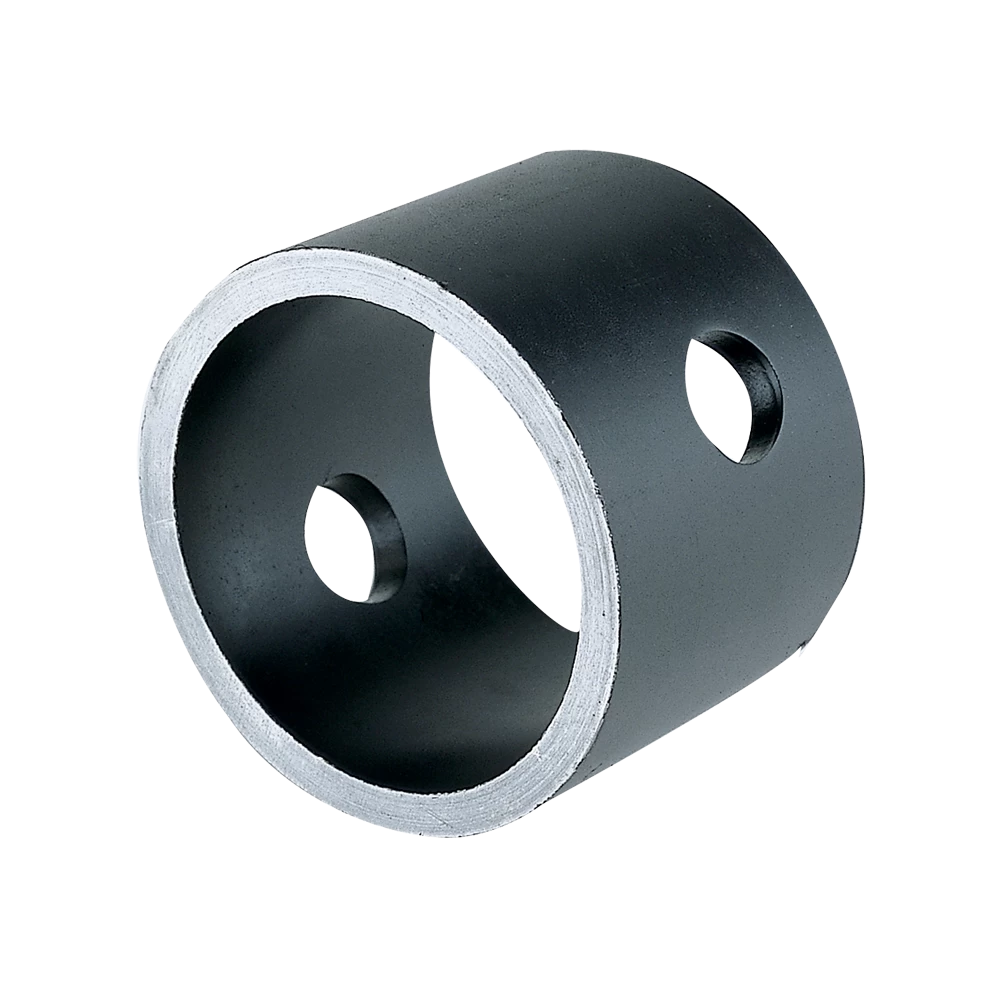

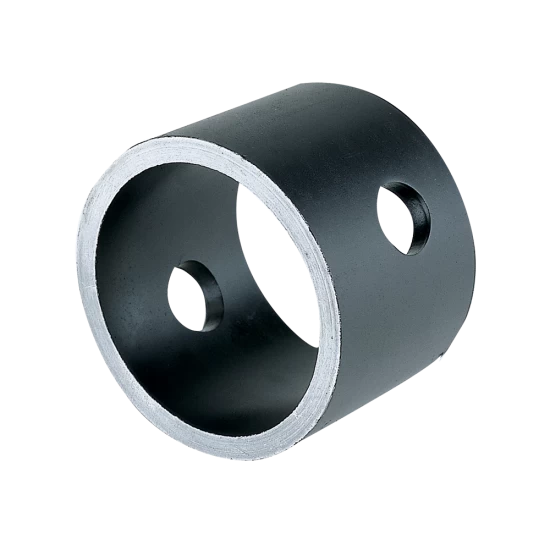

  • Included Tubular Pipe Mounts with a pin and chain for secure attachment.
  • Constructed from 7-gauge alloy steel with 4" square tubing for durability.
  • Manual Override Crank included for operation during power loss.
  • Tandem operation enabled through a Crosshaft for single-side handling.
  • Protective paint on the outer tube for corrosion resistance.
  • Accessible gear box and grease fitting for easy maintenance.
  • Fixed leg design eliminates the need for a drop leg or plunger pin.
  • 12.5" screw travel for precise height adjustment.
  • Sidewind models with a 1:1.5 gear ratio for efficient cranking.

Compliance and Specifications:

Meets ASABE S485 certification for quality and reliability.

  • Bracket Height: 17" retracted, 29-1/2" extended, with a 10-1/8" clearance.
  • Travel: 12-1/2".
  • Combined Lift Capacities: 20,000 lbs manual, 15,000 lbs electric.
  • Static Capacity: 24,000 lbs.
  • Pipe Mount Diameter: 3-1/4" outside, 2-9/16" inside.
  • Handle Radius: 13-1/2".
  • Outer Tube: 4" wide, made of 7-gauge steel.
  • 5-year warranty.

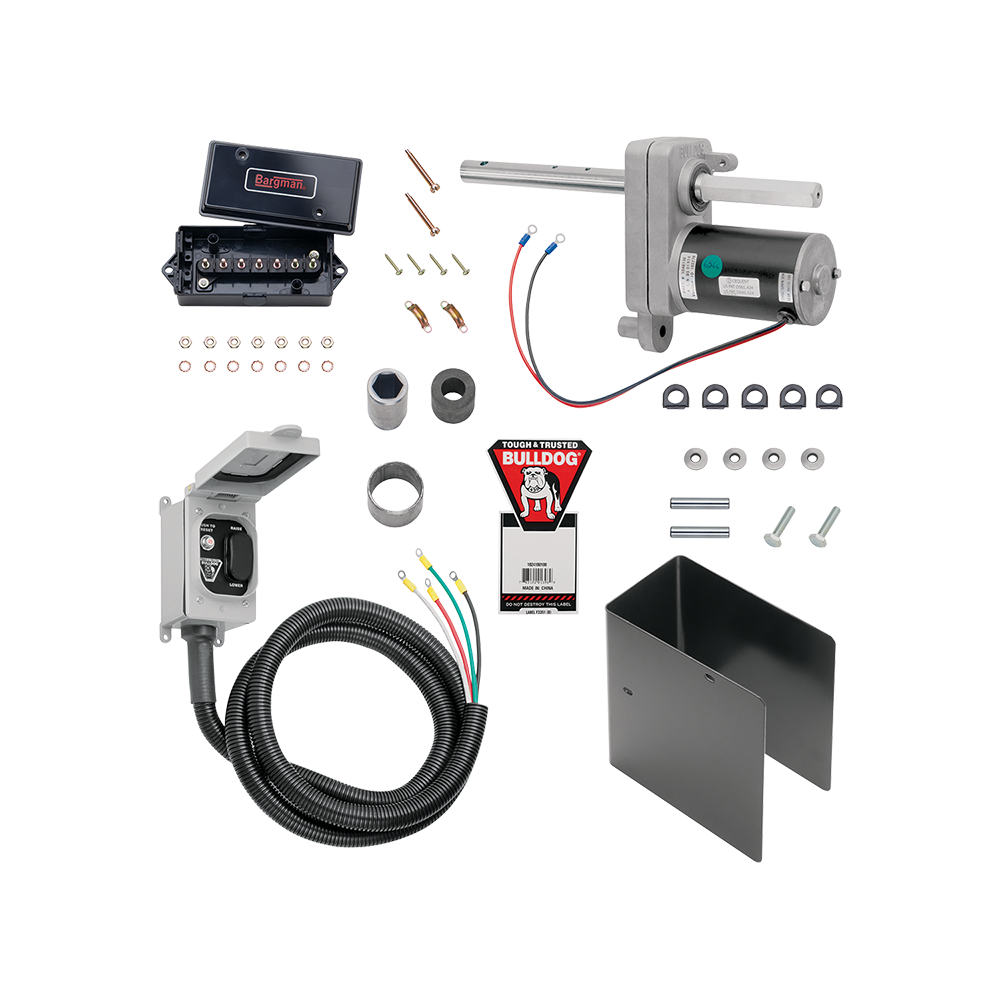

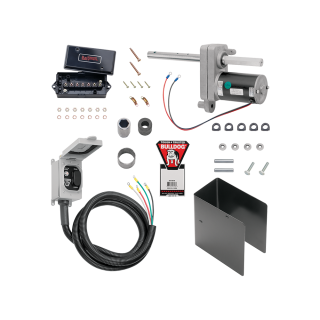

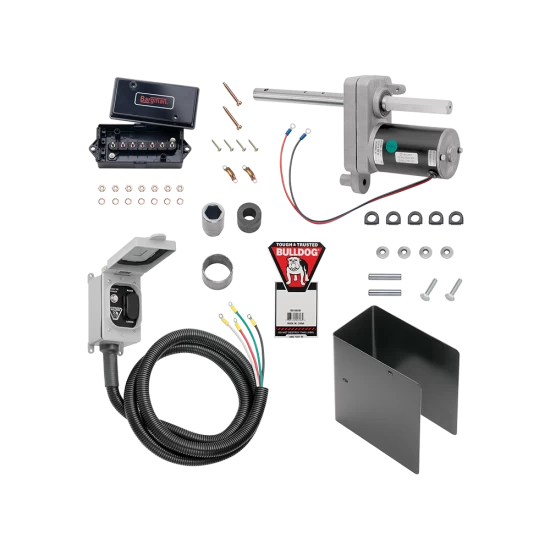

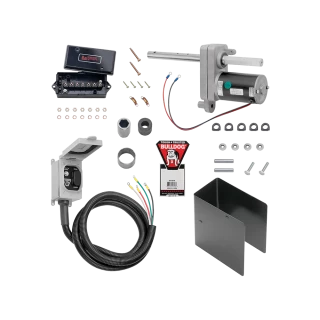

Bulldog Electric Motor Powered-Drive Kit - 1824200100:

This kit integrates seamlessly with Bulldog Jacks to ensure quiet, efficient, and swift operations. With a 7,500 lbs lift capacity per Jack, it is perfect for heavy-duty trailers.

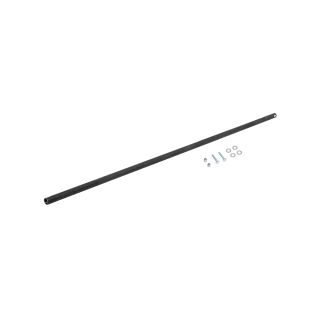

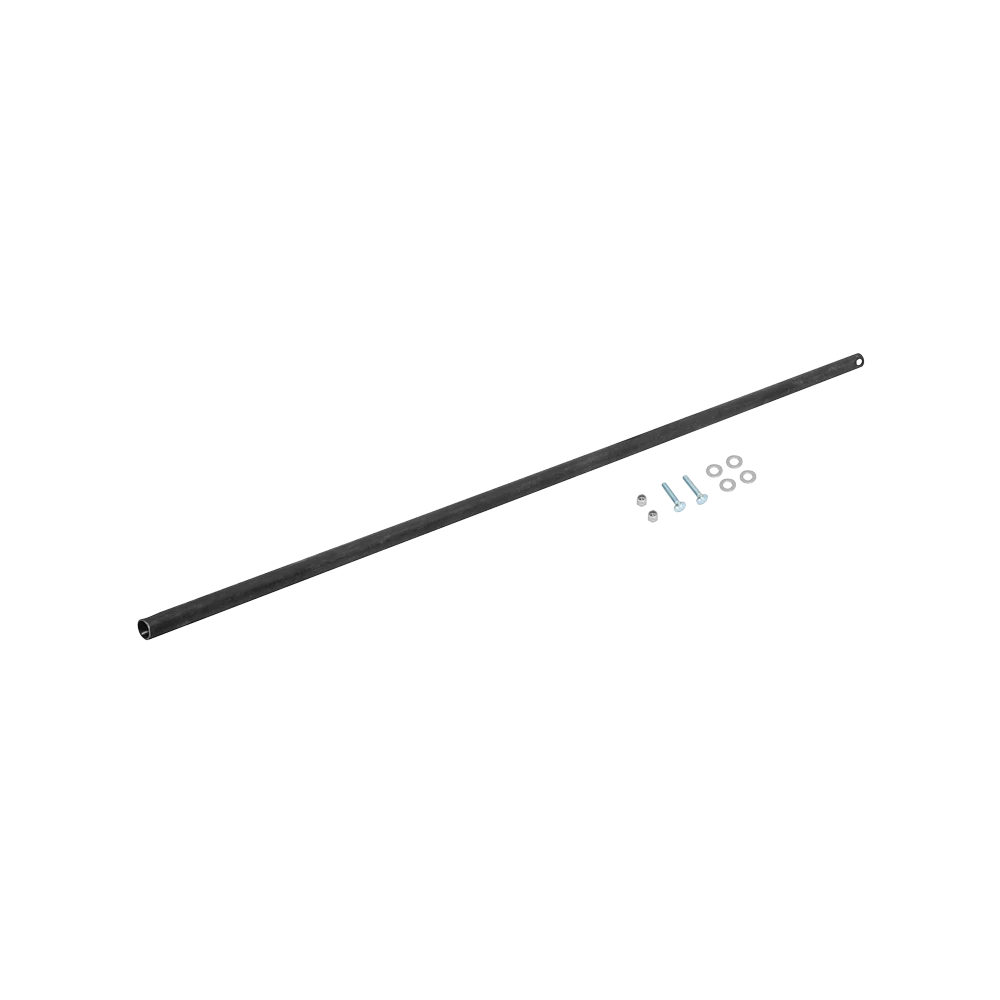

Crosshaft Specifications:

A 72-3/4" Trailer Jack Cross Shaft Tube allows tandem operation of both landing gear sides with customization for specific applications.

Contact us at 877-869-6690 to upgrade your trailer with the Bulldog Swiveling Tandem 24K Dual Trailer Jacks Landing Gear for unmatched performance and reliability.

Specification
Jack Style Pipe Mount
Finish Gray
Static Capacity 24000
Lift Capacity 20000
Electric Lift Capacity 15000
Lift Style Sidewind
Travel 12.5"
Retracted 17.0"
Extended 29.6"
Clearance 10.1"
Tubing Width 4"
Leg Fixed Leg
Swivel Yes
Foot Footplate
Jack Shape Landing Gear
Description Facts Fixed leg Pipe Mount Swivel Landing gear jacks with standard disc foot. In Electric Mode, Lift Capacity is 7,500 per jack
